Xerox VersaLink B7025 Service Manual

April 2017
4-161
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.1, REP 70.2
Repairs and Adjustments
Launch Issue
REP 70.1 Tray 1 Size Sensor
Parts List on PL 70.05
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove tray 1.
2. Remove the tray 1 size sensor, Figure 1:
a. Disconnect the connector (1).
b. Remove the screw (2).
c. Remove the tray 1 size sensor (3).

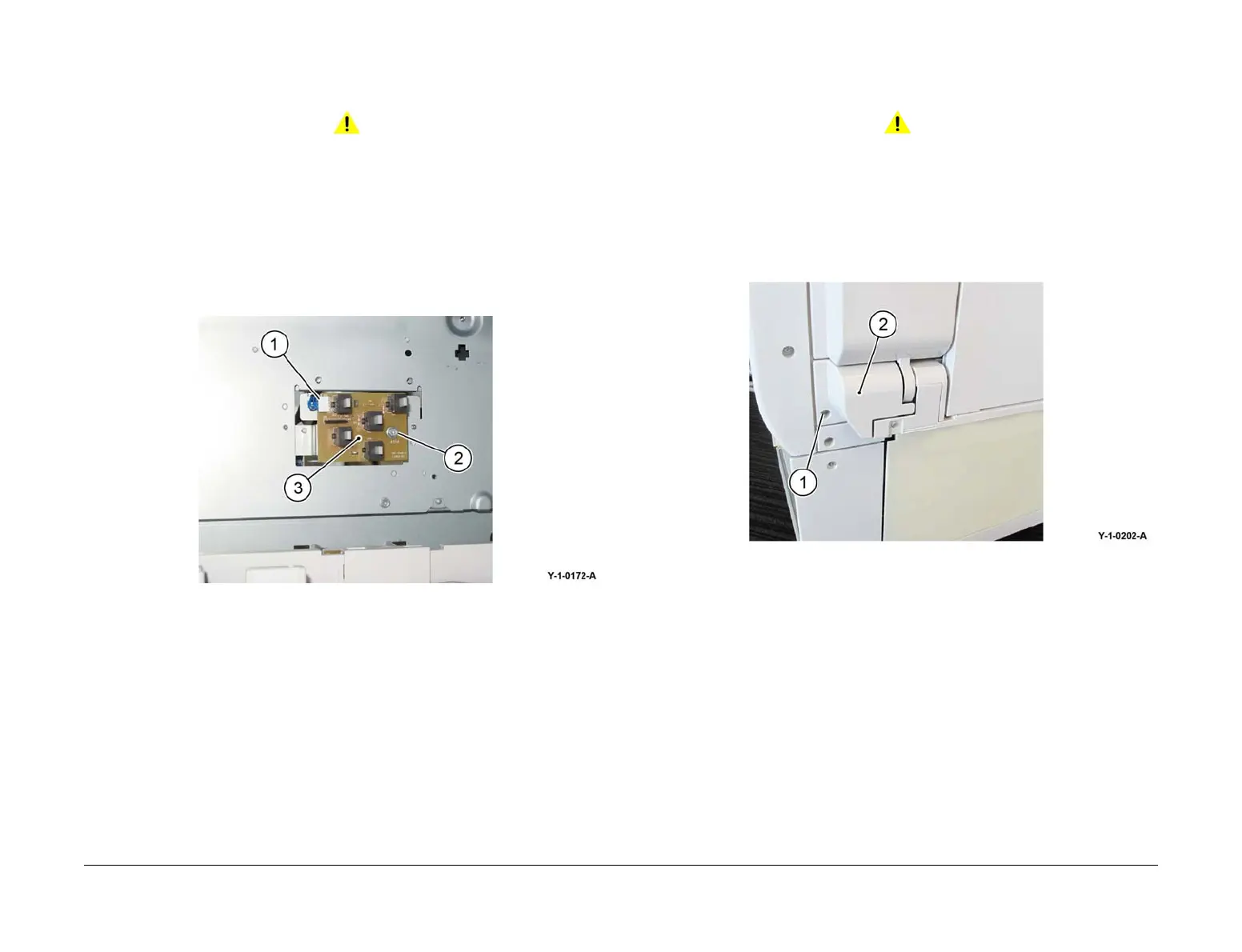

Figure 1 Tray 1 size sensor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 70.2 Bypass Tray
Parts List on PL 70.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the hinge rear cover, Figure 1:
a. Remove the screw (1).
b. Remove the hinge rear cover (2).
Figure 1 Hinge rear cover removal
