April 2017
5-106
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.90
Launch Issue
Parts Lists

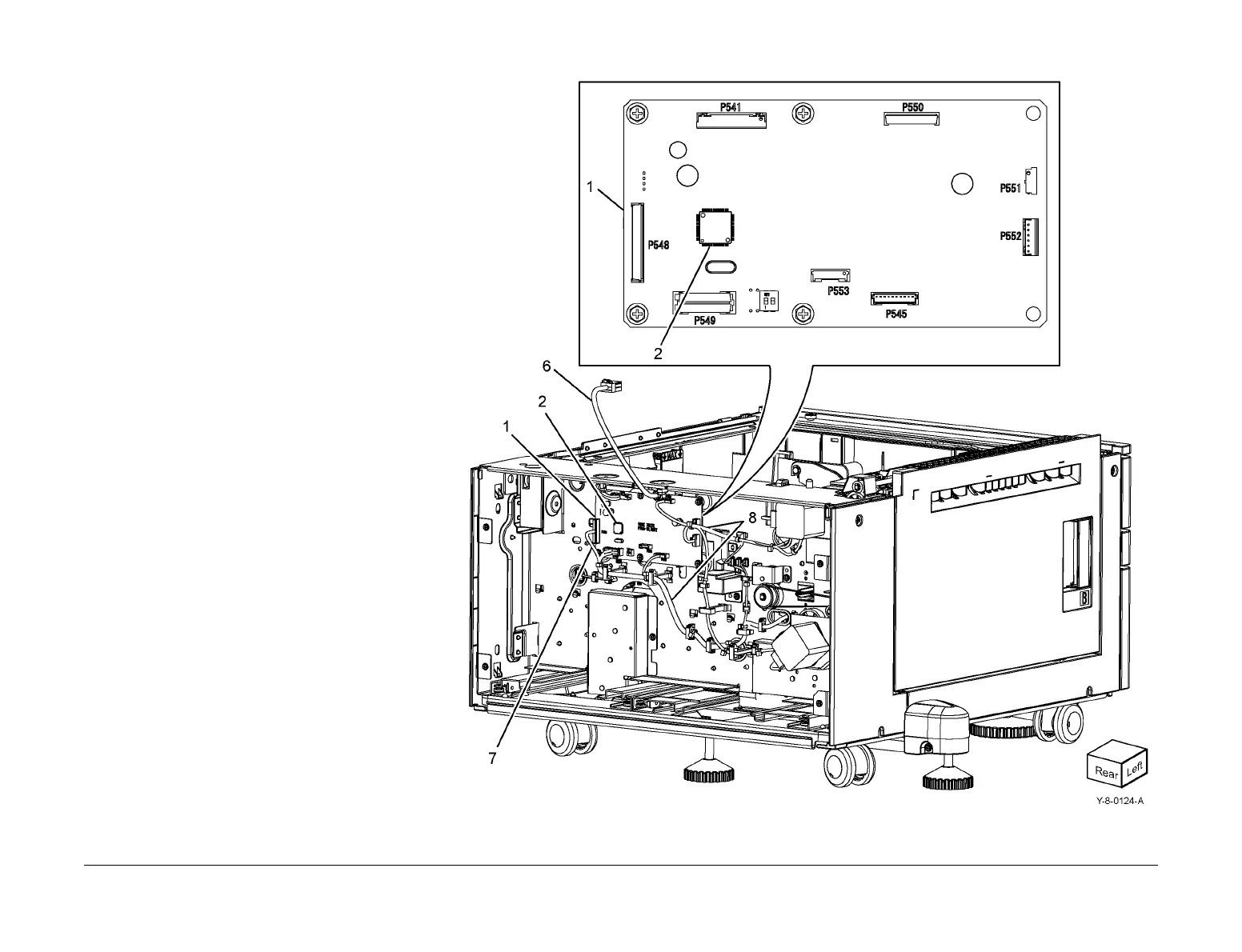

PL 70.90 TTM Electrical
Item Part Description
1 960K85452 TTM PWB
2 – Flash CPU (Not Spared)
3 – Not used
4 – Not used
5 – Not used
6 952K20150 IOT harness
7 952K20160 Sensor harness assembly
8 952K20170 Motor harness assembly
