April 2017
5-70
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer

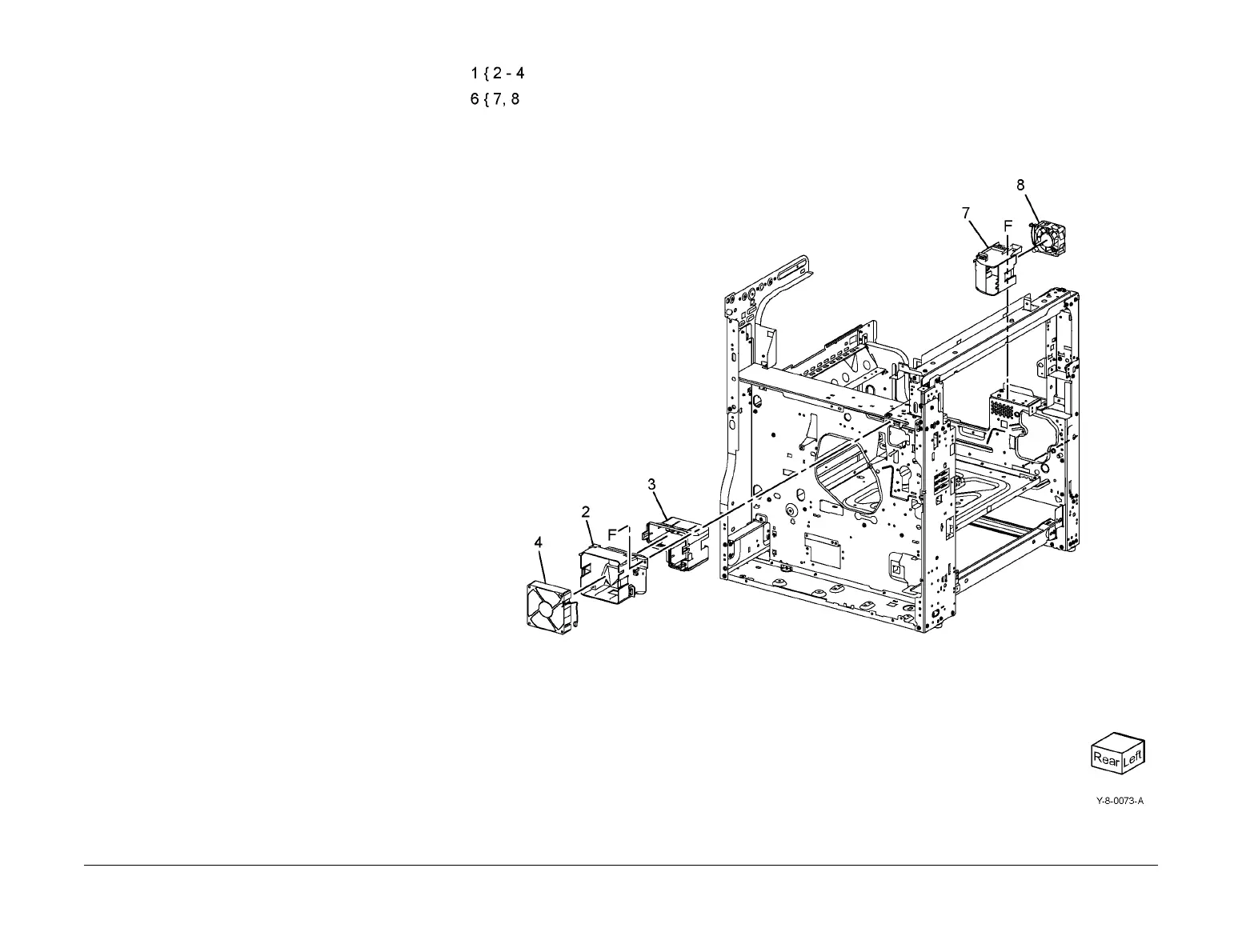

PL 40.15
Launch Issue
Parts Lists
PL 40.15 NOHAD
Item Part Description
1 – Fuser fan duct assembly (Not
Spared) (REP 10.4)
2 – Rear duct fuser A (P/O PL 40.15
Item 1)
3 – Rear duct fuser B (P/O PL 40.15
Item 1)
4 127K74080 Fuser unit exhaust fan (MOT42-
050)
5 – Not used
6 – CRU Fan duct assembly (Not
Spared)
7 – CRU duct (P/O PL 40.15 Item 6)
8 127K74190 Marking fan (MOT42-052)
