Xerox VersaLink B7025 Service Manual

April 2017
4-154
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.7, REP 60.8
Launch Issue
Repairs and Adjustments
Replacement
1. The replacement is the reverse of the removal procedure.

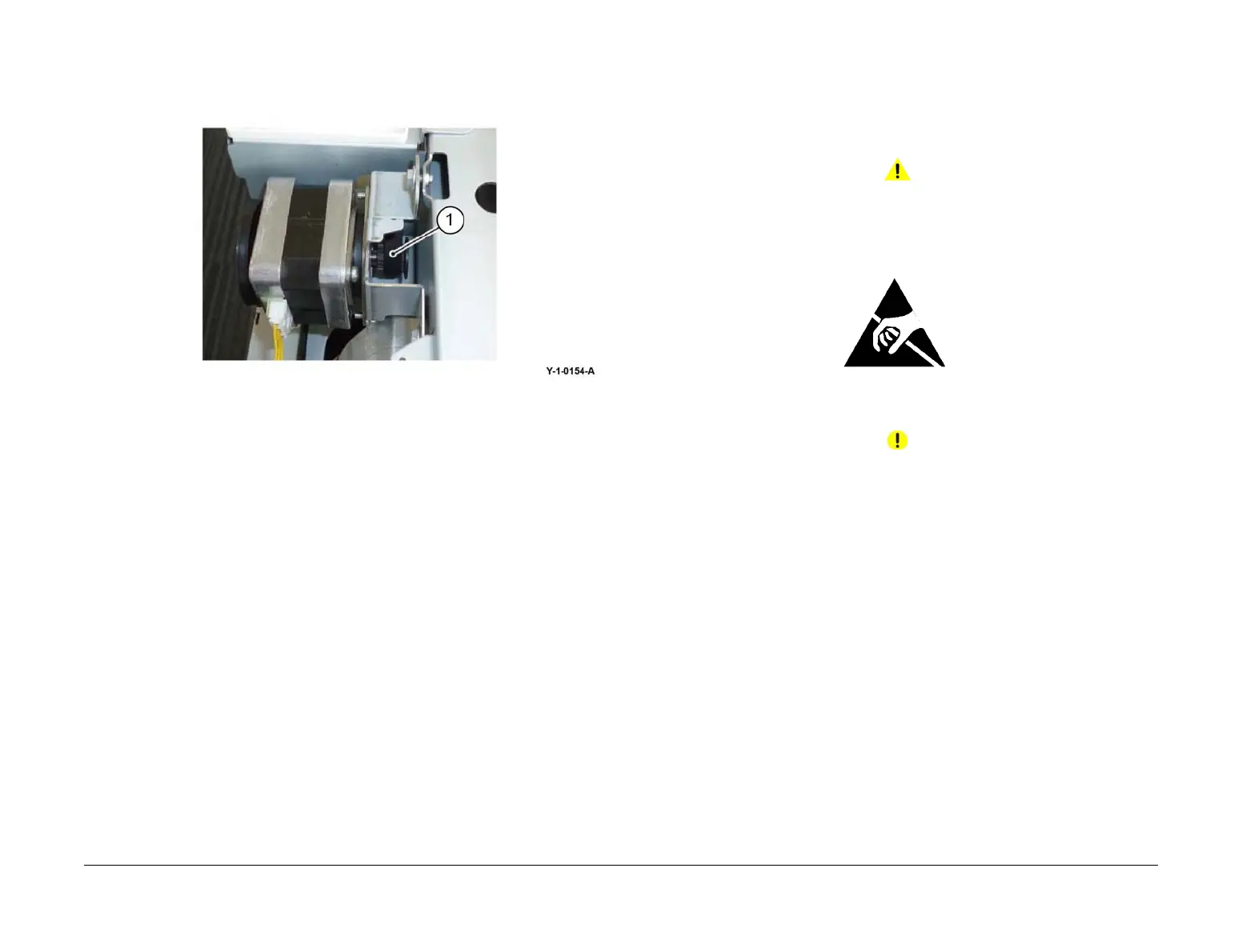

2. Attach the timing belt (1) to the IIT scan motor pulley, Figure 2.
Figure 2 Timing belt
3. Be aware of the steps that follow when reinstalling the IIT scan motor assembly:
a. Attach the extension spring.
b. Loosely install the IIT scan motor assembly and timing belt.
c. Ensure that the timing belt is correctly attached to the carriage.
d. Fully tighten the screws that secure the IIT scan motor assembly.
4. After installing the IIT scan motor assembly, check that the full rate carriage moves
smoothly.
REP 60.8 Print Head Assembly
Parts List on PL 60.35
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. Remove the drum cartridge, REP 90.4.
2. Remove the front cover, REP 28.1.
3. Remove the inner cover, REP 28.2.
