Xerox VersaLink B7025 Service Manual

April 2017
4-82
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.20
Launch Issue
Repairs and Adjustments
REP 12.20 Set Clamp Shaft
Parts List on PL 12.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the compiler assembly, REP 12.19.
2. Remove the eject shaft assembly, REP 12.24.
3. Remove the actuator and the bearing, Figure 1:
a. Remove the E-clip (1).
b. Remove the actuator (2).
c. Remove E-clip (3).
d. Remove the bearing (4).

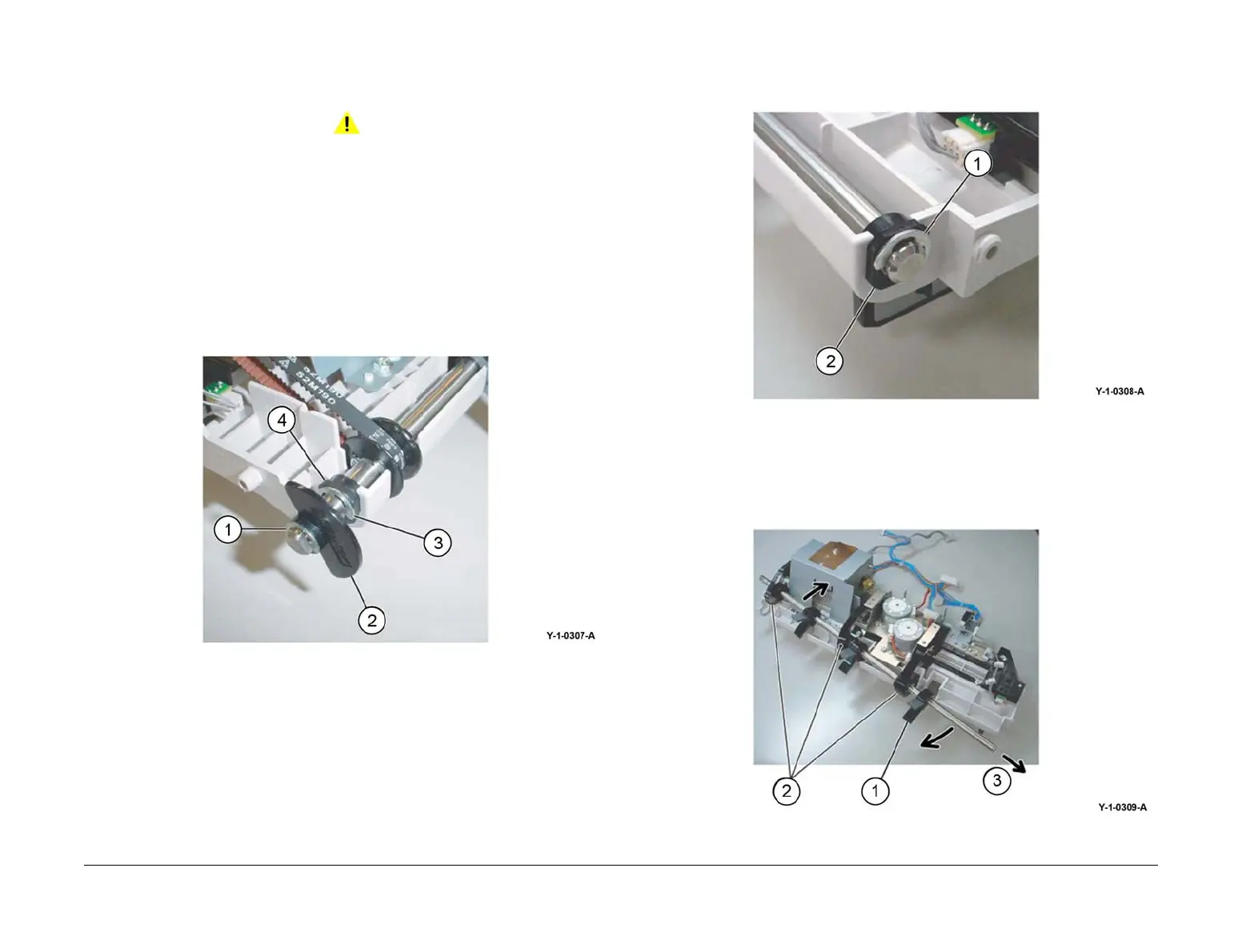

Figure 1 Actuator and bearing removal
4. Remove the bearing, Figure 2:
a. Remove the E-clip (1).
b. Remove the bearing (2).
Figure 2 Bearing removal
5. Remove the set clamp shaft, Figure 3:
a. Move the set clamp shaft (1) in the direction of the arrow.
b. Remove the three belts (2) from the pulleys.
c. Remove the set clamp shaft in the direction of the arrow (3).
Figure 3 Set clamp shaft removal
