Xerox VersaLink B7025 Service Manual

April 2017
4-40
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.13
Launch Issue
Repairs and Adjustments
REP 5.13 DADF Drive Belt
Parts List on PL 5.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3.
2. Remove the DADF rear cover, REP 5.4.
3. Remove the document tray, REP 5.14.
4. Remove the harness guide and wire harness, REP 5.11.
5. Remove the DADF feed motor assembly, REP 5.12.

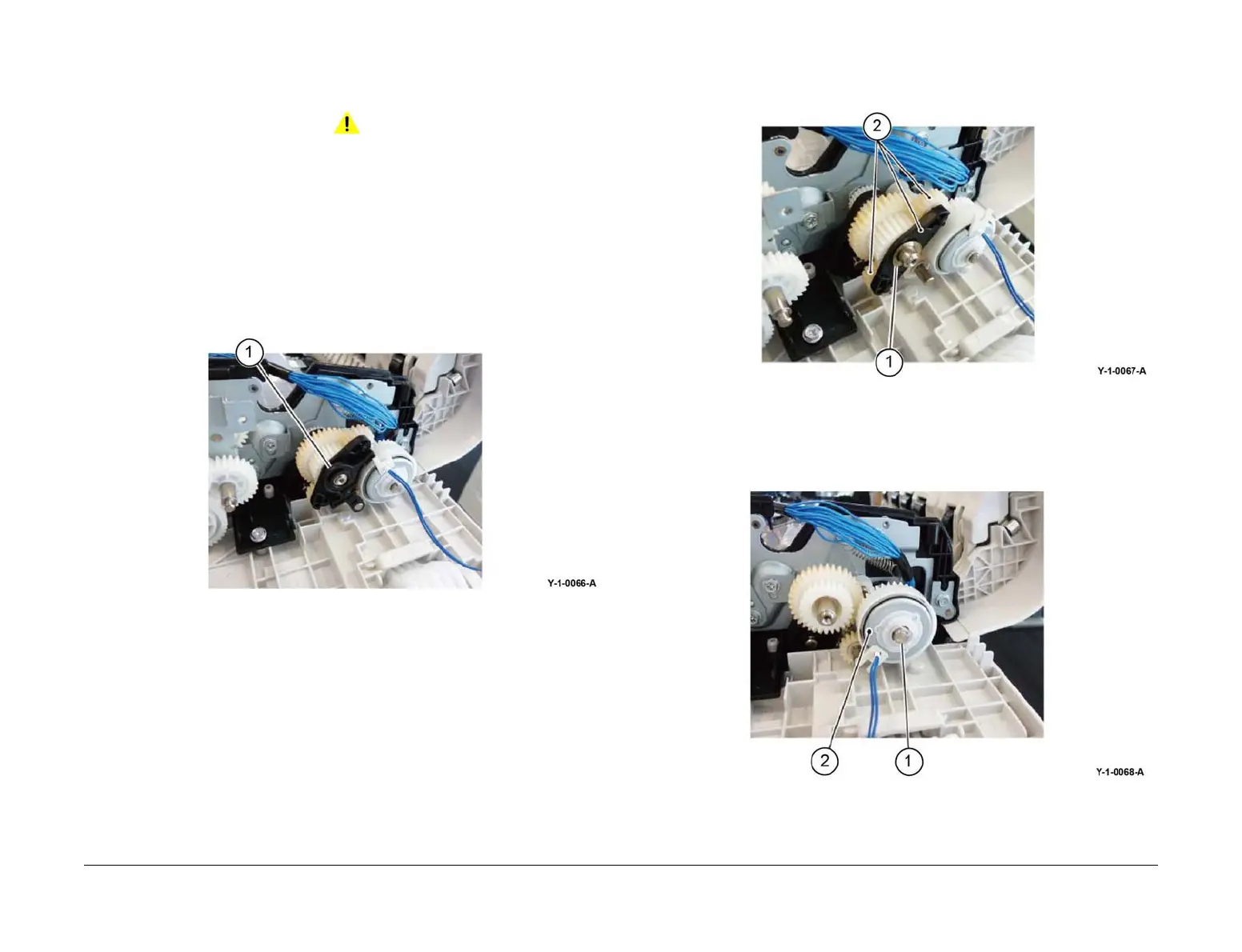

6. Remove the stopper link, Figure 1.
Figure 1 Stopper link removal
7. Remove the idler gear bracket, Figure 2:
a. Remove the washer (1).
b. Remove two gears, then the idler gear bracket (2).
Figure 2 Idler gear bracket removal
8. Remove the DADF T/A clutch, Figure 3:
a. Remove the E-clip (1).
b. Remove the DADF T/A clutch (2).
Figure 3 T/A clutch removal
