Xerox VersaLink B7025 Service Manual

April 2017
4-39
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.12
Repairs and Adjustments
Launch Issue
REP 5.12 DADF Feed Motor Assembly
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3.
2. Remove the DADF rear cover, REP 5.4.
3. Remove the document tray, REP 5.14.
4. Remove the harness guide and wire harness, REP 5.11.
5. Remove the DADF feed motor assembly, Figure 1:
a. Remove three screws (1).
b. Remove the DADF feed motor assembly (2).

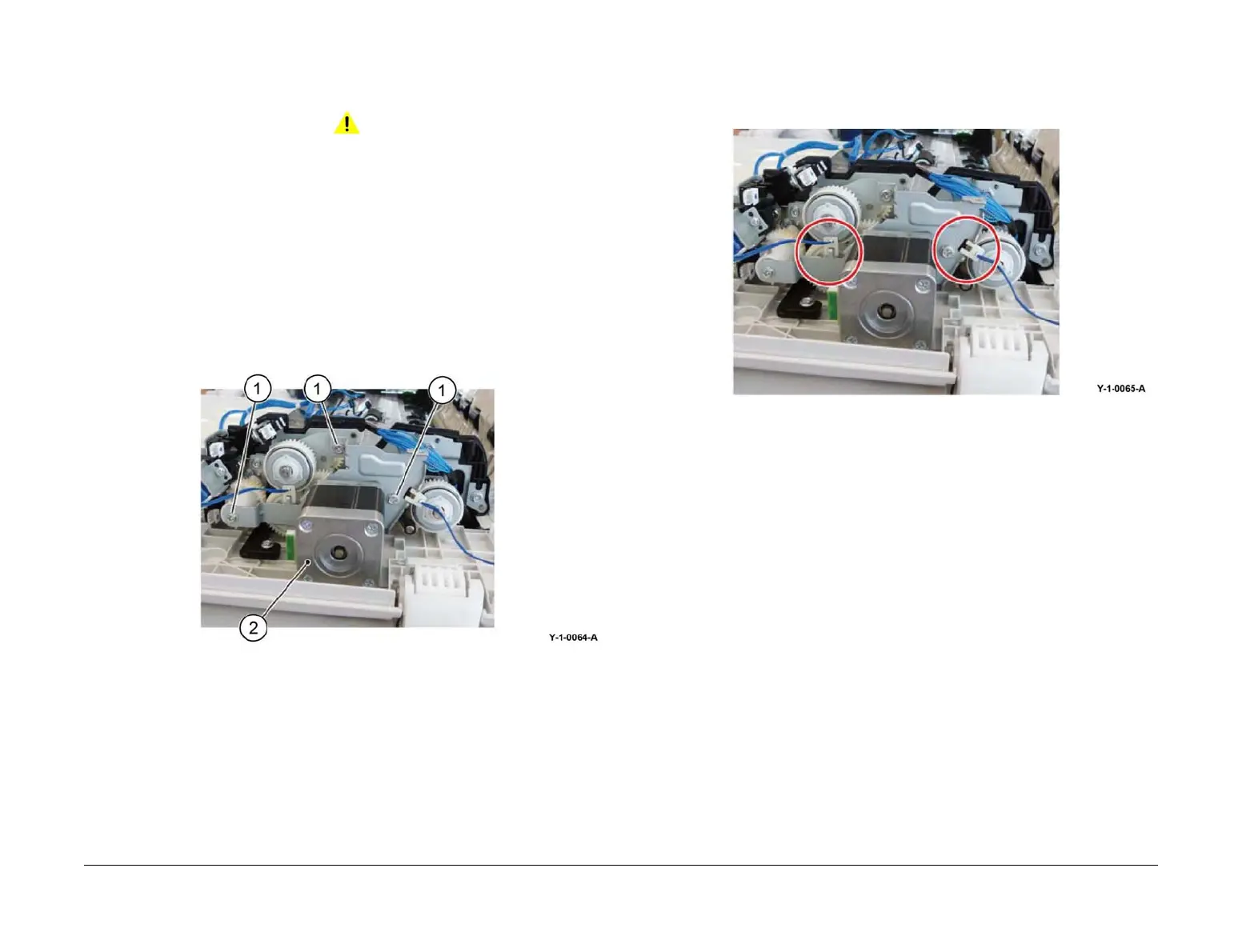

Figure 1 Feed motor assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the DADF feed motor assembly is correctly aligned with the DADF feed clutch and
the DADF T/A clutch, Figure 2.
Figure 2 Alignment
