April 2017
5-109
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.05
Parts Lists
Launch Issue

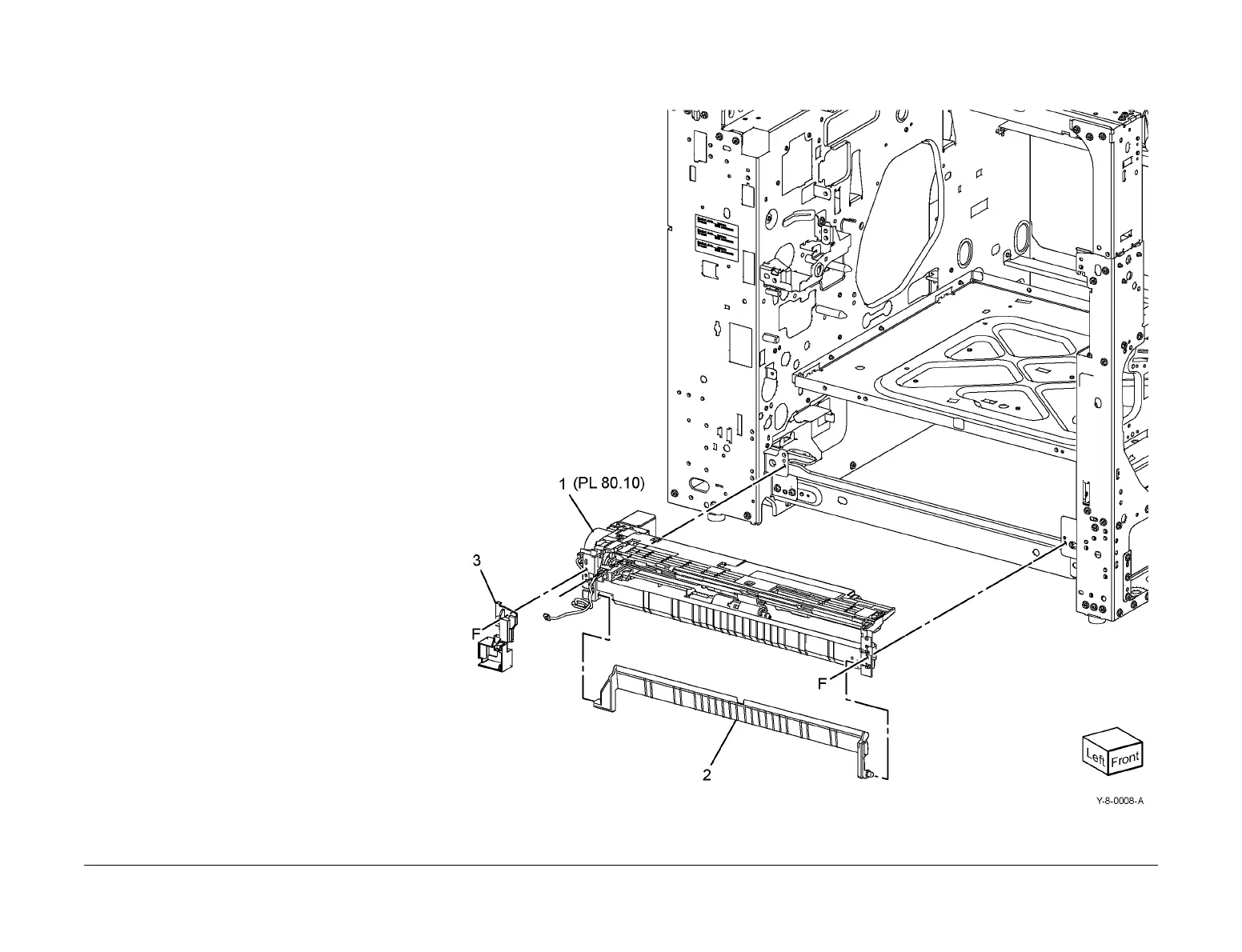

PL 80.05 Tray 1 Feeder
Item Part Description
1 859K08541 Tray 1 feeder assembly (REF: PL
80.10, PL 80.11) (See NOTE)
(REP 80.1)
2 054E33803 Feed out chute
3 – Harness holder (Not Spared)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
