Xerox VersaLink B7025 Service Manual

April 2017
5-52
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.35
Launch Issue
Parts Lists

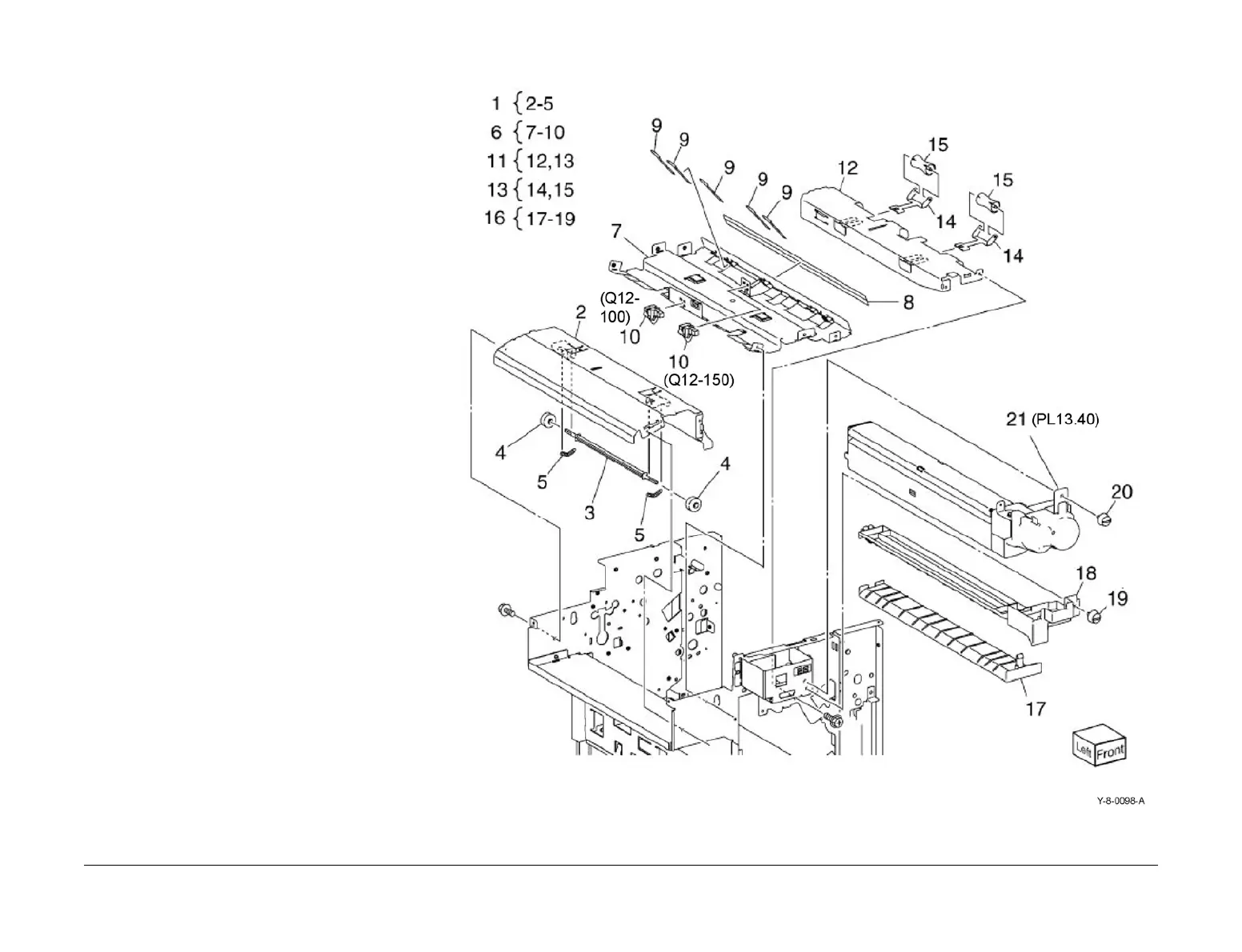

PL 13.35 Office Finisher LX Exit and
Folder Assembly
Item Part Description
1 054K35532 Lower chute assembly
2 – Lower chute (P/O PL 13.35 Item 1)
3 – Shaft (P/O PL 13.35 Item 1)
4 – Nip roll (P/O PL 13.35 Item 1)
5 – Spring (P/O PL 13.35 Item 1)
6 054K35540 Exit upper chute assembly
7 – Exit upper chute (P/O PL 13.35
Item 6)
8 – Static eliminator (P/O PL 13.35
Item 6)
9 – Paper guide (P/O PL 13.35 Item 6)
10 130K88311 Compiler exit sensor (Q12-150)/
transport entry sensor (Q12-100)
11 054K48531 Exit lower chute assembly
12 – Exit lower chute (P/O PL 13.35 Item
11)
13 – Nip roll assembly (P/O PL 13.35
Item 11)
14 – Spring (P/O PL 13.35 Item 13)
15 – Nip roll (P/O PL 13.35 Item 13)
16 607K03960 Chute assembly
17 – Lower chute (P/O PL 13.35 Item
16)
18 – Upper chute (P/O PL 13.35 Item
16)
19 – Thumb screw (P/O PL 13.35 Item
16)
20 – Thumb screw (Not Spared)
21 695K18692 Crease assembly (Option) (REP
13.18)
