Allen-Bradley Stratix 5400 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 105
Install Stratix 5410 Switches Chapter 4
Install or Remove the SD Card
A Secure Digital (SD) card ships with the Stratix 5410 switch. The SD card
contains the switch firmware and initial configuration. You can order a
replacement SD card from Rockwell Automation, catalog number 1784-SD1,
if needed. The replacement card ships without firmware and must be synced
with the internal memory of the switch. See
page 64.

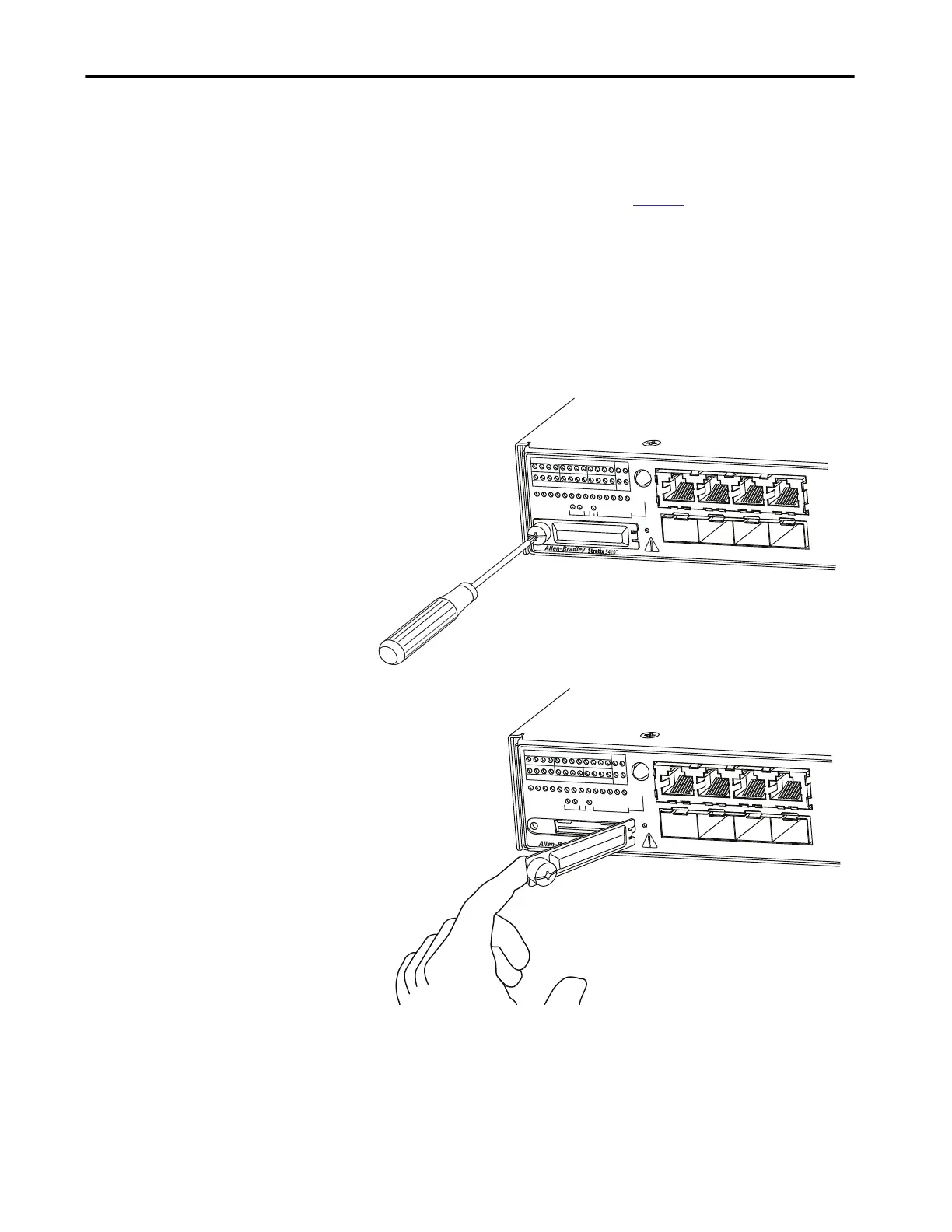

To install or replace the SD card, follow these steps.
1. On the front of the switch, locate the door that protects the SD card
slot.
2. Loosen the captive thumb screw on the door by using a screwdriver and
open the door.
Use caution when removing the non-captive door.
32566-M
16
13
Disp.
Mode
EIP Mod
EIP Net
Setup
GPS
TimeCD
3 1
4 2
Out
1 2
Speed
Duplex
PRP
DLR
PoE
Express
Setup
Alarms PSU
1
4
5
8
9
12
13
16
17
20
21
24
27
28
25
26
1
4
32567-M
16
13
Disp.
Mode
EIP Mod
EIP Net
Setup
GPS
TimeCD
3 1
4 2
Out
1 2
Speed
Duplex
PRP
DLR
PoE
Express
Setup
Alarms PSU
1
4
5
8
9
12
13
16
17
20
21
24
27
28
25
26
1
4
