Allen-Bradley Stratix 5400 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 523
Cables and Connectors Appendix D
Stratix 5400 and 5700
Cables and Connectors
This section describes how to connect to ports on Stratix 5400 and Stratix
5700 switches.
10/100 and 10/100/1000 Ports
The 10/100 and 10/100/1000 Ethernet ports use standard RJ45 connectors
and Ethernet pinouts with internal crossovers.

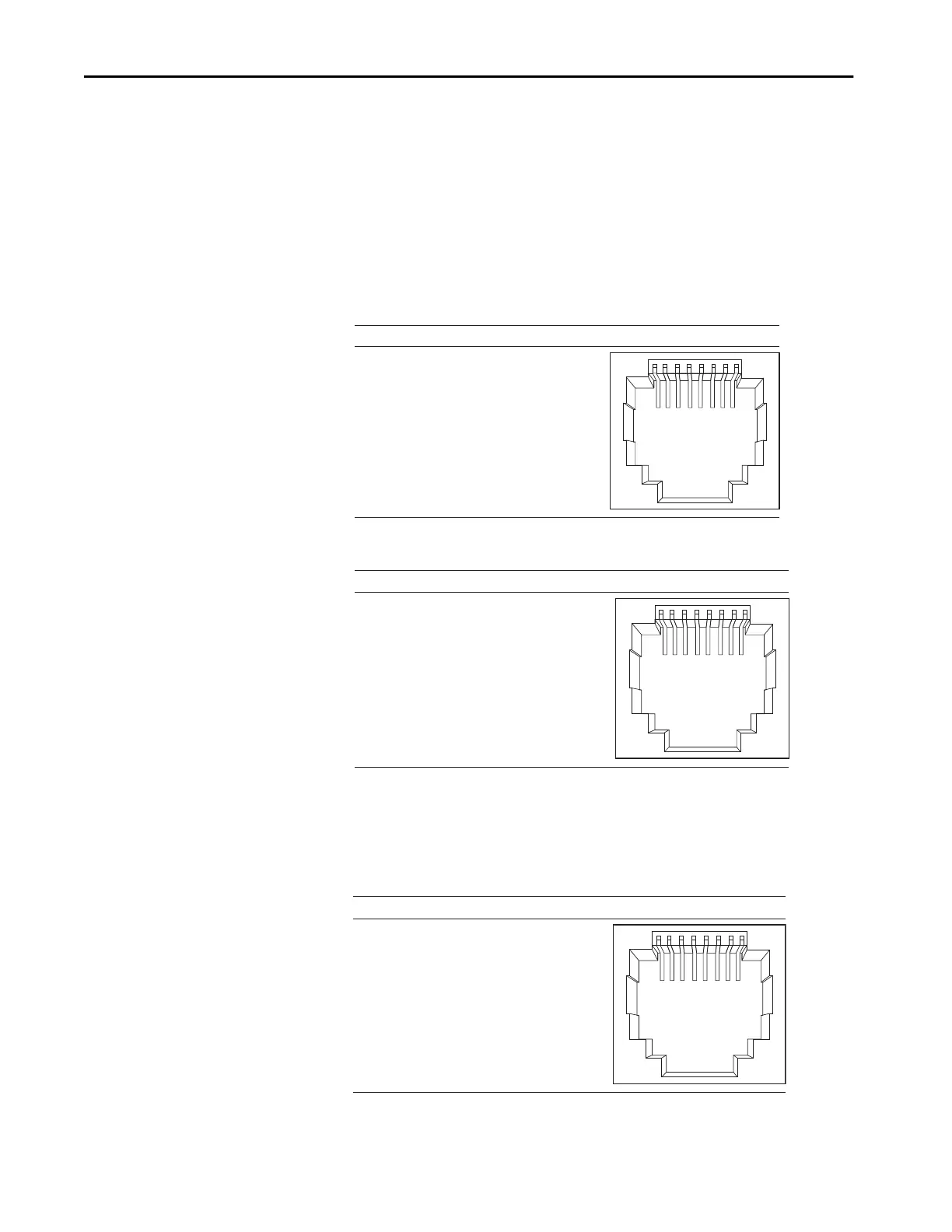

Figure 67 - 10/100 Connector Pinouts
Figure 68 - 10/100/1000 Connector Pinouts
PoE ports integrate power and data signals on the same wires. The ports use
standard RJ45 connectors and Ethernet pinouts with internal crossovers.
Figure 69 - 10/100 PoE Connector Pinouts and Power Sourcing Equipment (PSE) Voltage
23145678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
23145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
23145678Pin Label Alternative A (MDI)
1
2
3
4
5
6
7
8
RD+ Positive V PSE
RD- Positive V PSE
TD+ Negative V PSE
NC
NC
TD- Negative V PSE
NC
NC
