Install Stratix 5410 Switches Chapter 4
Install a Power Supply
Module in the Switch
The switch ships with one pre-installed power supply. To install a second
power supply, follow these steps.
1. Turn power off at the AC and DC circuits.

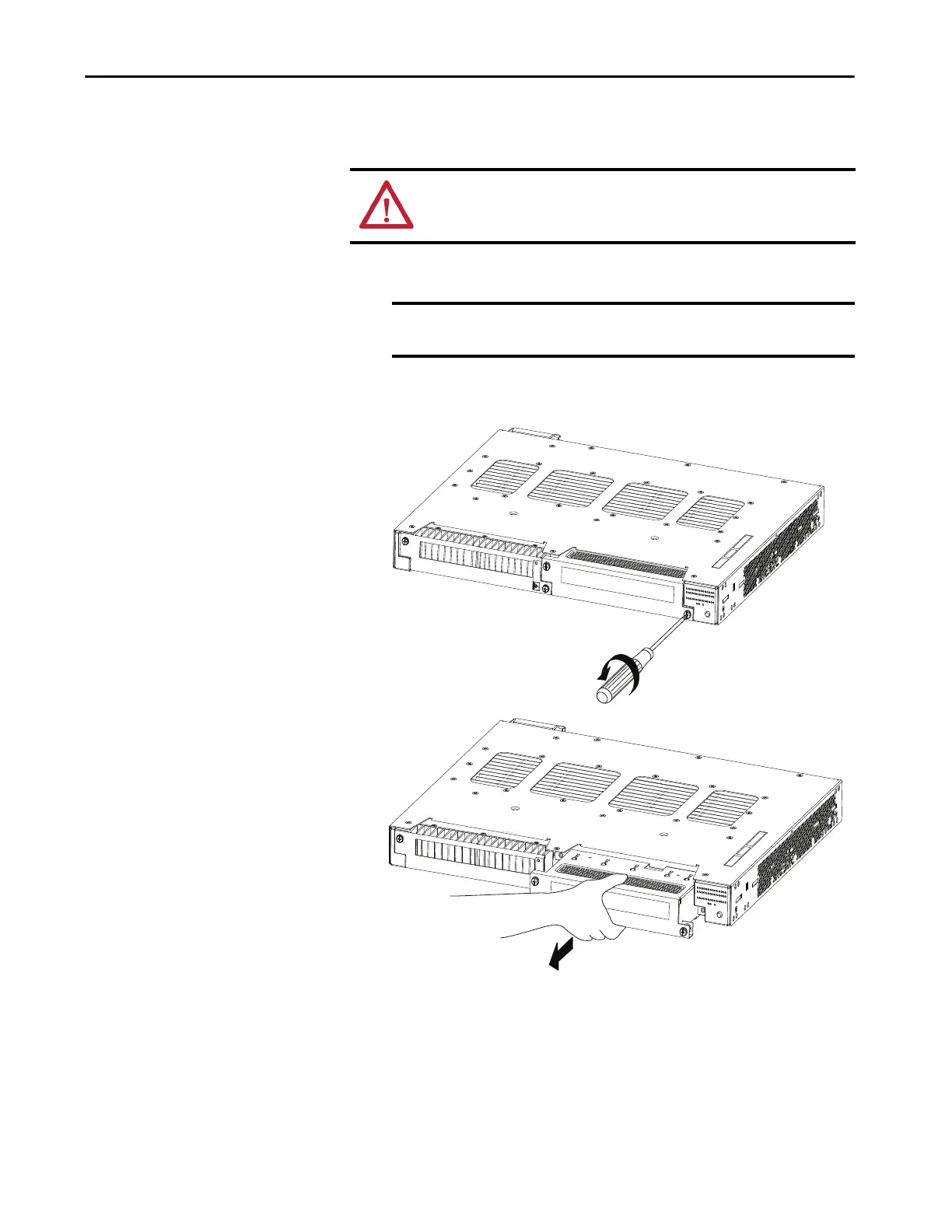

2. To loosen the two captive screws of the blank power-supply module and
gently pull it out, use a Phillips screwdriver.
WARNING: If you connect or disconnect wiring while the field-side power is
on, an electrical arc can occur. This could cause an explosion in hazardous
location installations.
IMPORTANT If the power is not off at the AC or DC circuit breaker, do not touch
the power-input terminal.
P
S
U
OK
P
W
R-R
GD-A
C
-
DC
32555-M
PSU
O
K
P
W
R-
RG
D
-A
C
-DC
32556-M
