Allen-Bradley Stratix 5400 User Manual

388 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 8 Monitor the Switch
Switch Status via the Logix
Designer Application

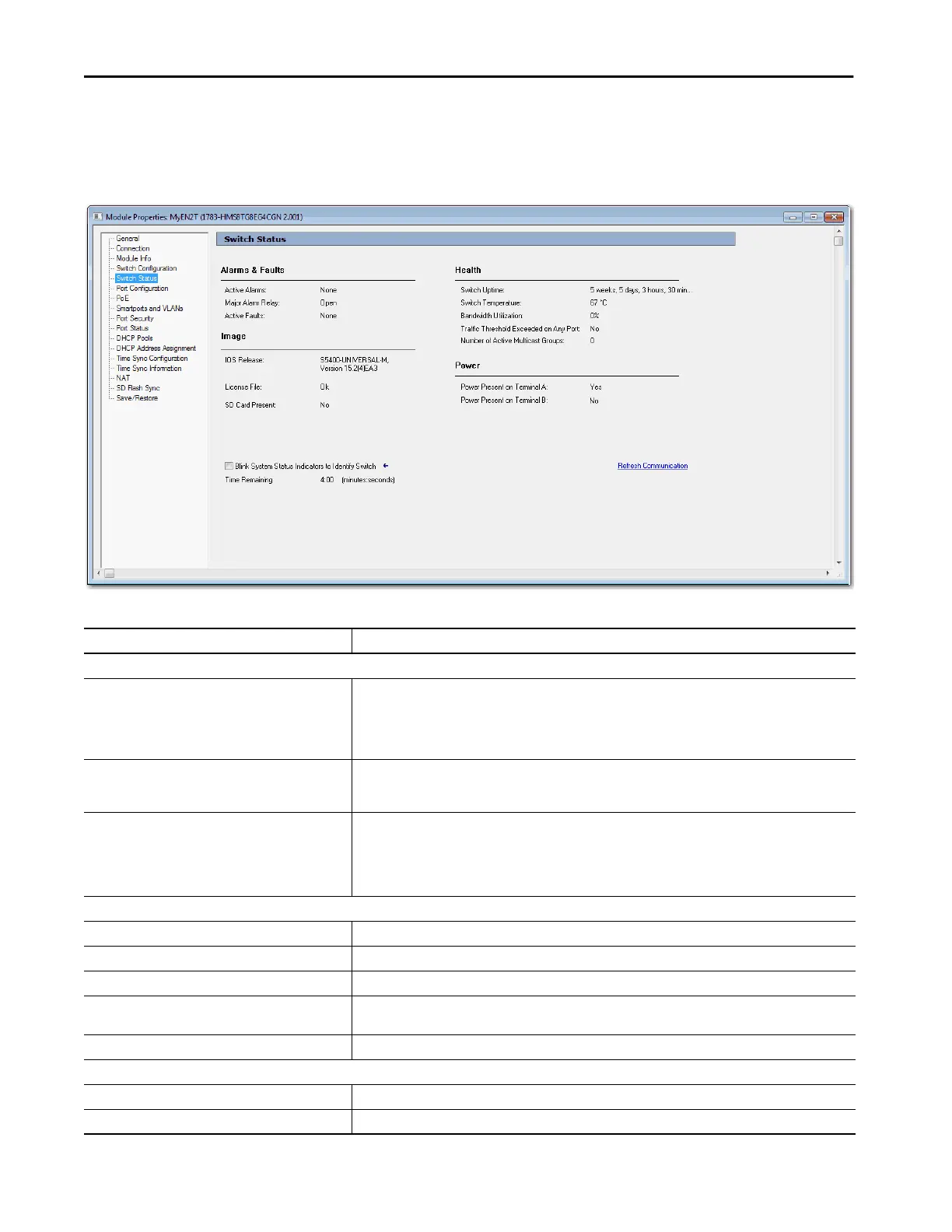

The Switch Status view in the Studio 5000 Logix Designer® application lets you
view status parameters for the switch.
In the navigation pane, click Switch Status.
Table 104 - Switch Status Fields
Field Description
Alarms & Faults
Active Alarms Displays one of these values:
• None
• Port alarm
• Dual Mode Power Supply alarm
• Primary Temperature alarm
Major Alarm Relay Displays one of these values:
• Open
• Closed
Active Faults Displays one of these values:
• None
• Port fault
• Hardware fault
If the port and hardware faults are active, the Hardware fault status appears.
Health
Switch Uptime Displays the days, hours, and minutes that the switch has been functioning since the last restart.
Switch Temperature Displays the current internal temperature (in degree Celsius) of the switch.
Bandwidth Utilization Displays the total percentage of the switch bandwidth being used.
Traffic Threshold Exceeded on Any Port Displays a yes or no value to indicate whether the current unicast, multicast, and broadcast thresholds have been
exceeded on any port.
Number of Active Multicast Groups Displays the number of active multicast groups.
IOS Release Displays the current version of the switch operating system.
License File Displays whether the license file is valid.
