368 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017

Chapter 7 Configure Switch Features

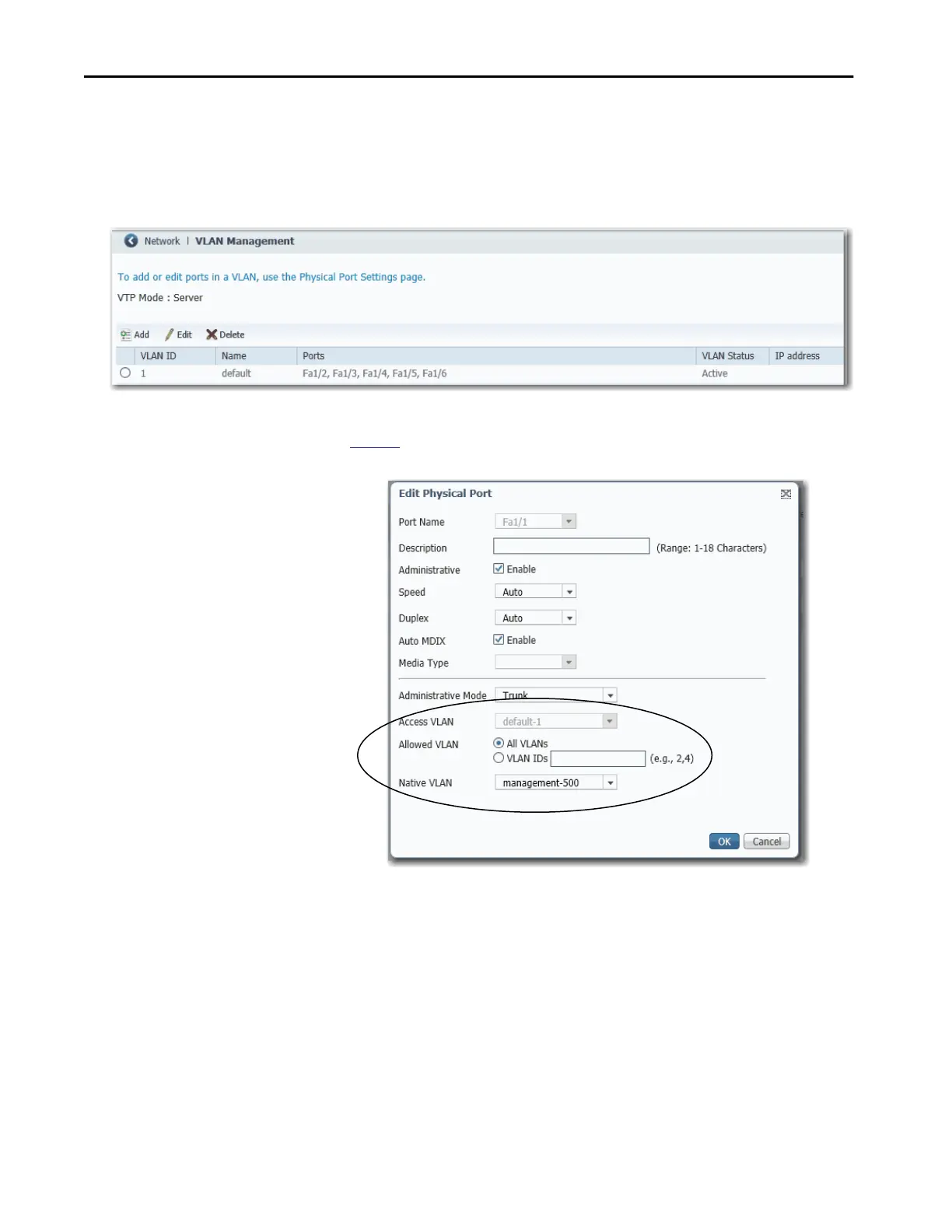

Configure VLANs via Device Manager

From the Configure menu, choose VLAN Management.

You can add, edit, and delete VLANs.

To assign ports to VLANs, use the Edit Physical Ports window, as described on

page 51. Before you assign ports to VLANs, make sure that each port has the

appropriate port role.
