322 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017

Chapter 7 Configure Switch Features

Configure PoE via the Logix Designer Application

In the navigation pane, click PoE.

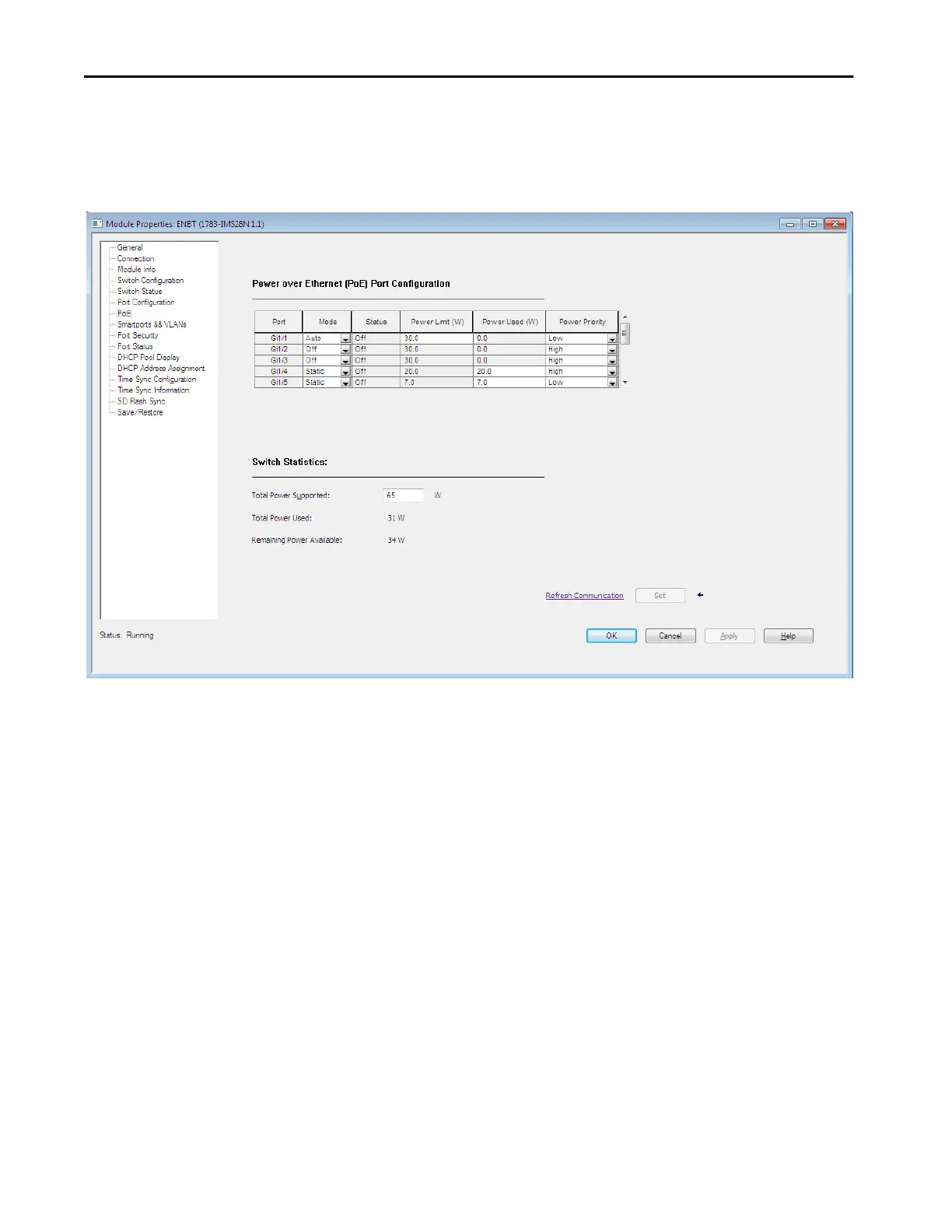

Figure 40 - PoE Configuration for Stratix 5410 Switches
