Allen-Bradley Stratix 5400 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 369
Configure Switch Features Chapter 7
Configure VLANs via the Logix Designer Application
VLAN configuration via the Logix Designer application is available for only
Stratix 5400, Stratix 5410, Stratix 5700, and ArmorStratix 5700 switches.
In the navigation pane, click Smarports & VLANs.
In the VLAN Configuration area, you can add, edit, and delete VLANs.

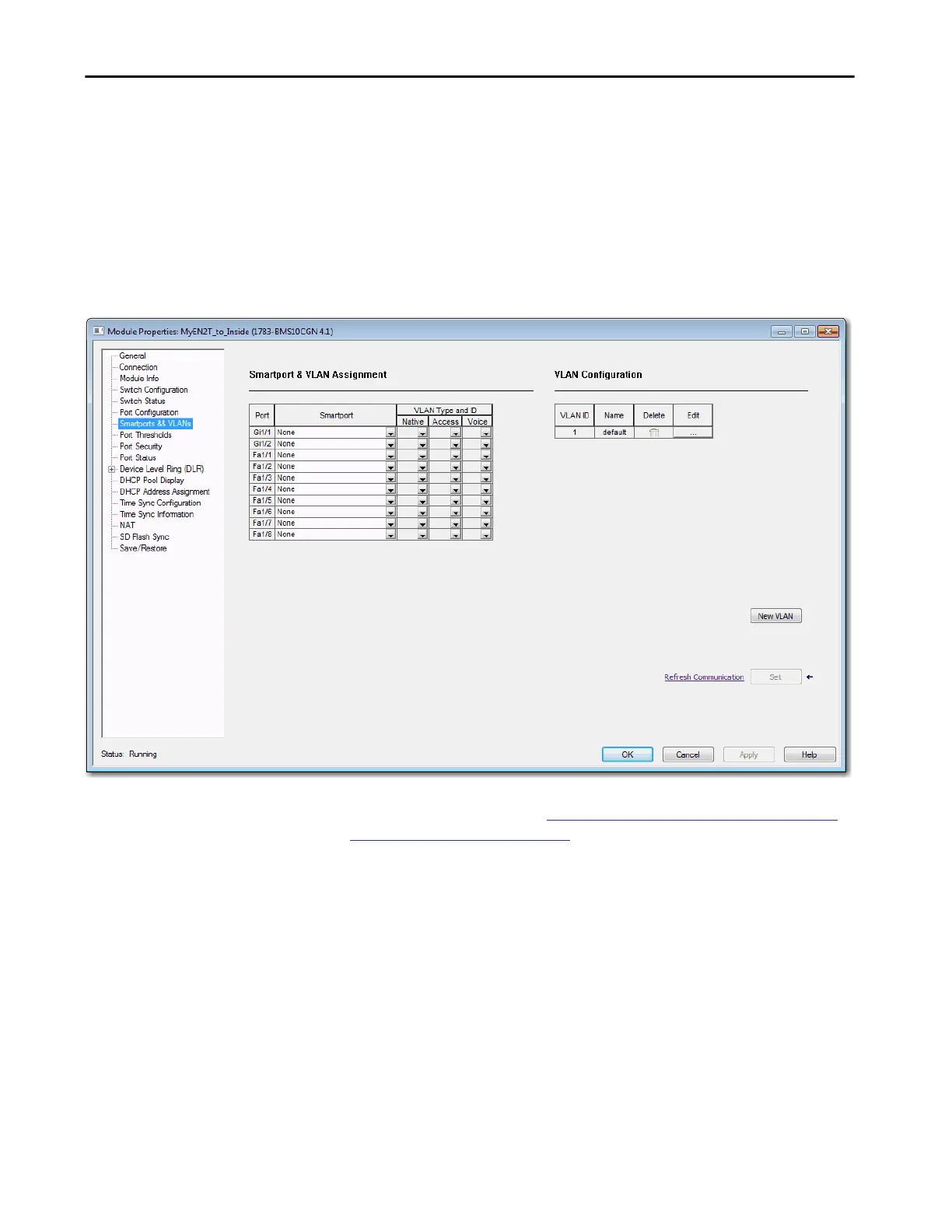

Figure 51 - VLAN Configuration for Stratix 5400, Stratix 5410, Stratix 5700, and ArmorStratix 5700 Switches
To assign ports to VLANs, see Assign Smartports and VLANs via the Logix
Designer Application on page 358.
