Cables and Connectors Appendix D
100Base-FX Ports
The 100Base-FX ports use the following:
• LC connectors, as shown in the following figure
• 50/125- or 62.5 /125-micron multimode fiber-optic cables

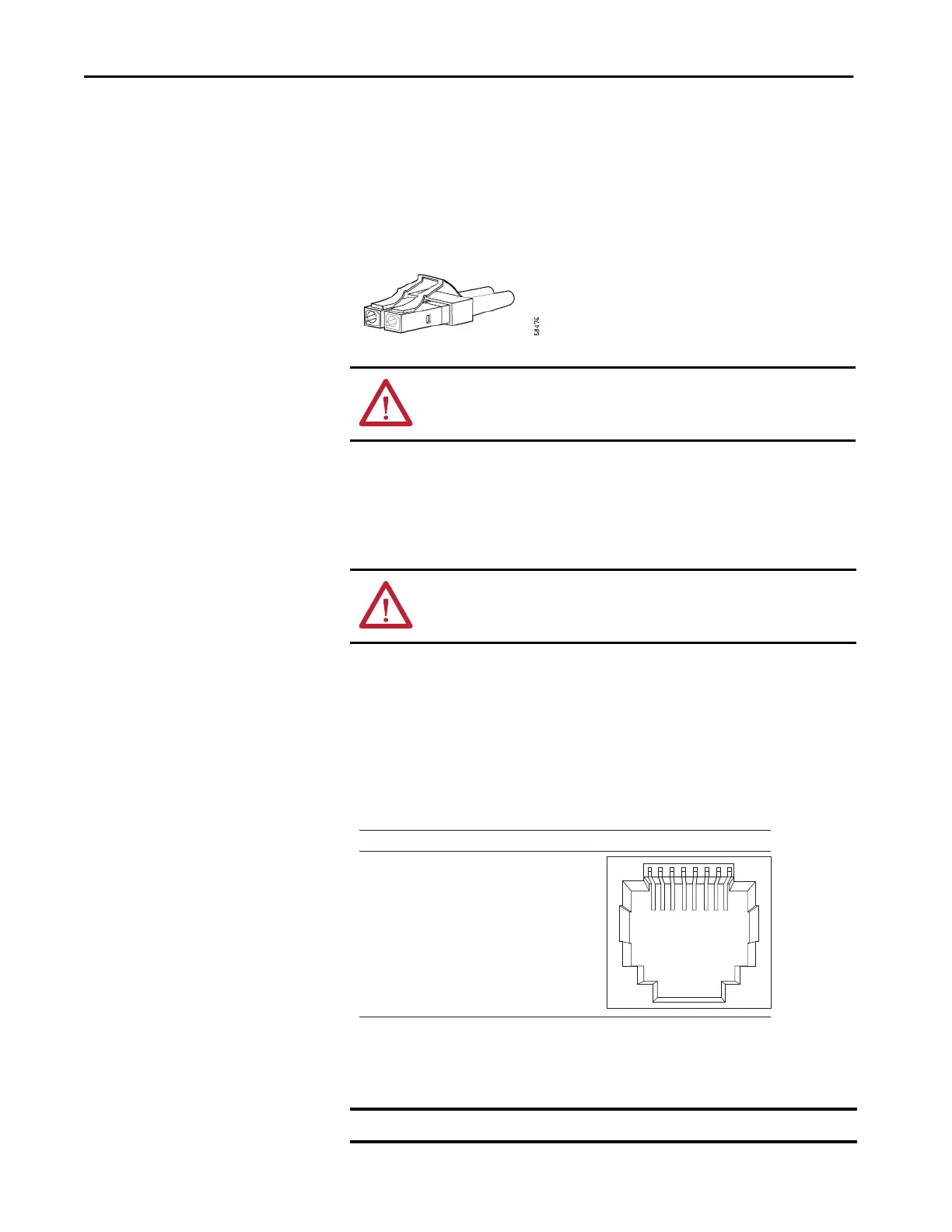

Figure 94 - Fiber-optic SFP Module LC Connector
SFP Transceiver Ports
The switch uses SFP transceivers for fiber-optic uplink ports.
Dual-purpose Ports
The Ethernet port on a dual-purpose port uses standard RJ45 connectors. The
following figure shows the pinouts.
Figure 95 - Ethernet Port RJ45 Connector
The SFP module slot on a dual-purpose port uses SFP modules for fiber-optic
ports.
ATTENTION: Invisible laser radiation can be emitted from
disconnected fibers or connectors. Do not stare into beams or view
directly with optical instruments.
ATTENTION: Invisible laser radiation can be emitted from
disconnected fibers or connectors. Do not stare into beams or view
directly with optical instruments.
IMPORTANT The auto-MDIX feature is enabled by default.
23145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
