122 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 4 Install Stratix 5410 Switches
6. For fiber-optic SFP modules, remove the dust plugs and save.
7. Connect the SFP cables.

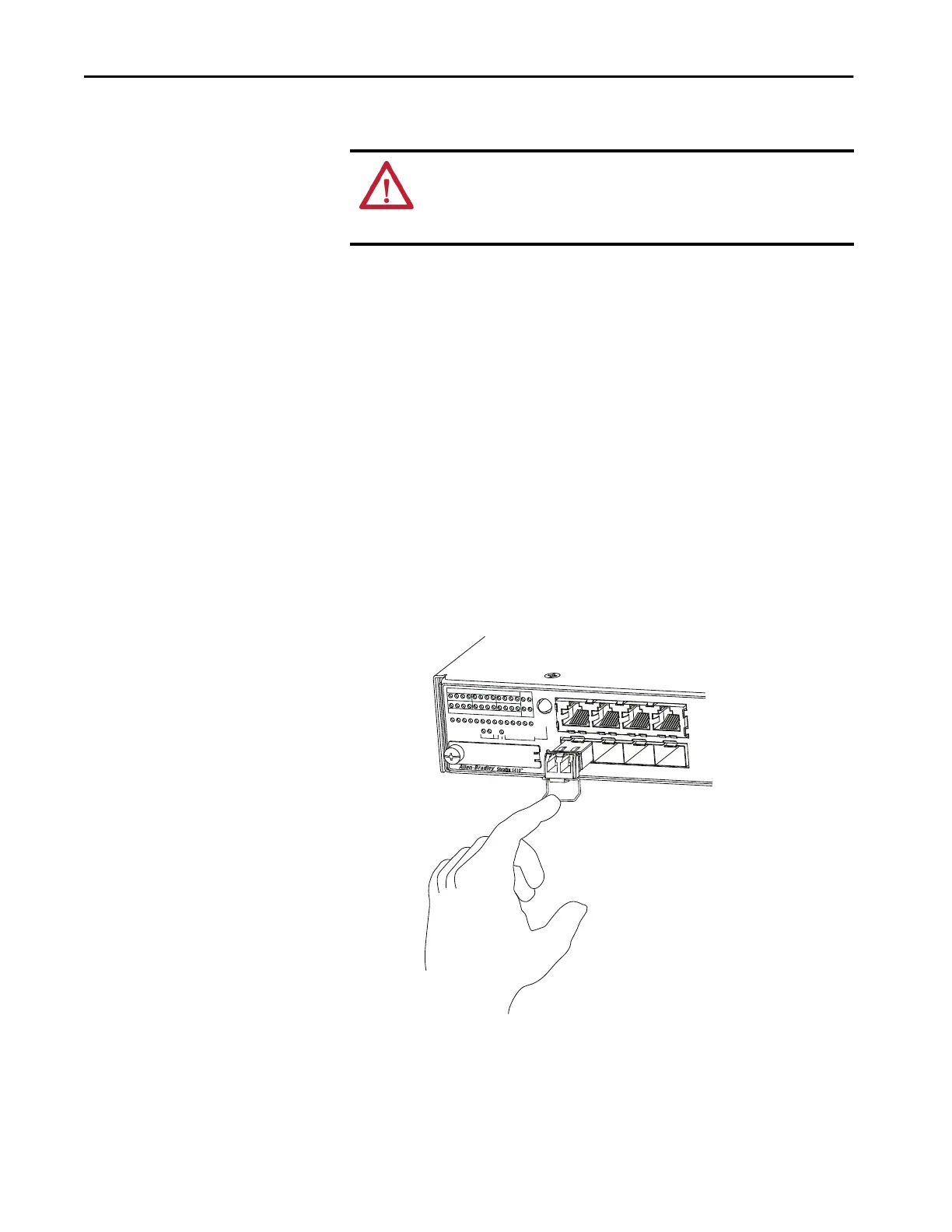

Remove an SFP Module
from an SFP Slot
To remove an SFP module from an SFP slot, follow these steps.
1. Attach an ESD-preventive wriststrap to your wrist and to a bare metal
surface.
2. Disconnect the cable from the SFP module.
For reattachment, note which cable connector plug is send (TX) and
which is receive (RX).
3. Insert a dust plug into the optical ports of the SFP module.
4. If the module has a bale-clasp latch, pull the bale out and down to eject
it.
If the latch is obstructed and you cannot use your finger, use a small, flat-
blade screwdriver or other long, narrow instrument.
5. Grasp the SFP module, and carefully remove it from the slot.
6. Place the module in an antistatic bag or other protective environment.
ATTENTION: Do not remove the rubber plugs from the SFP module port or
the rubber caps from the fiber-optic cable until you are ready to connect the
cable. The plugs and caps protect the SFP module ports and cables from
contamination and ambient light.
32570-M
16
13
Disp.
Mode
EIP Mod
EIP Net
Setup
GPS
TimeCD
3 1
4 2
Out
1 2
Speed
Duplex
PRP
DLR
PoE
Express
Setup
Alarms PSU
1
4
5
8
9
12
13
16
17
20
21
24
27
28
25
26
1
4
