Install Stratix 5400 Switches Chapter 3
Remove an SFP Module
from an SFP Slot
To remove an SFP module from an SFP slot, follow these steps.
1. Attach an ESD-preventive wriststrap to your wrist and to a grounded
bare metal surface.
2. Disconnect the fiber LC connector from the SFP module.
3. Insert a dust plug into the optical ports of the SFP module to keep the
optical interfaces clean.
4. Unlock and remove the SFP module.

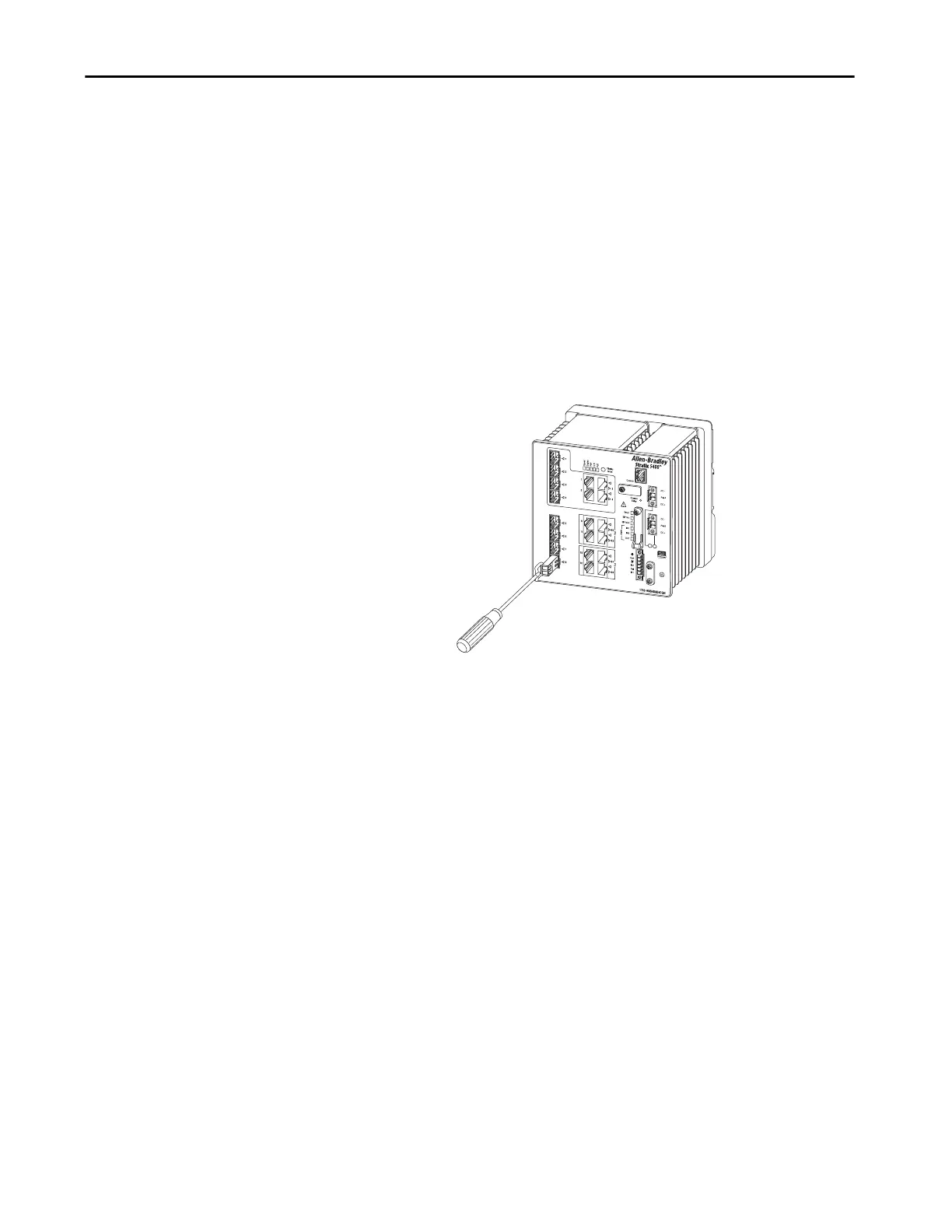

If the module has a bale-clasp latch, swing the bale toward you and pull
it gently to eject the module. If the bale-clasp latch is obstructed and you
cannot use your index finger to open it, use a small, flat-blade
screwdriver or other long, narrow instrument to open the latch.
5. Grasp the SFP module between your thumb and index finger, and
carefully remove it from the module slot.
6. Place the removed SFP module in an antistatic bag or other protective
environment.
32561-M
