Install Stratix 5700 Switches Chapter 5
Attach the Switch
Power Connectors

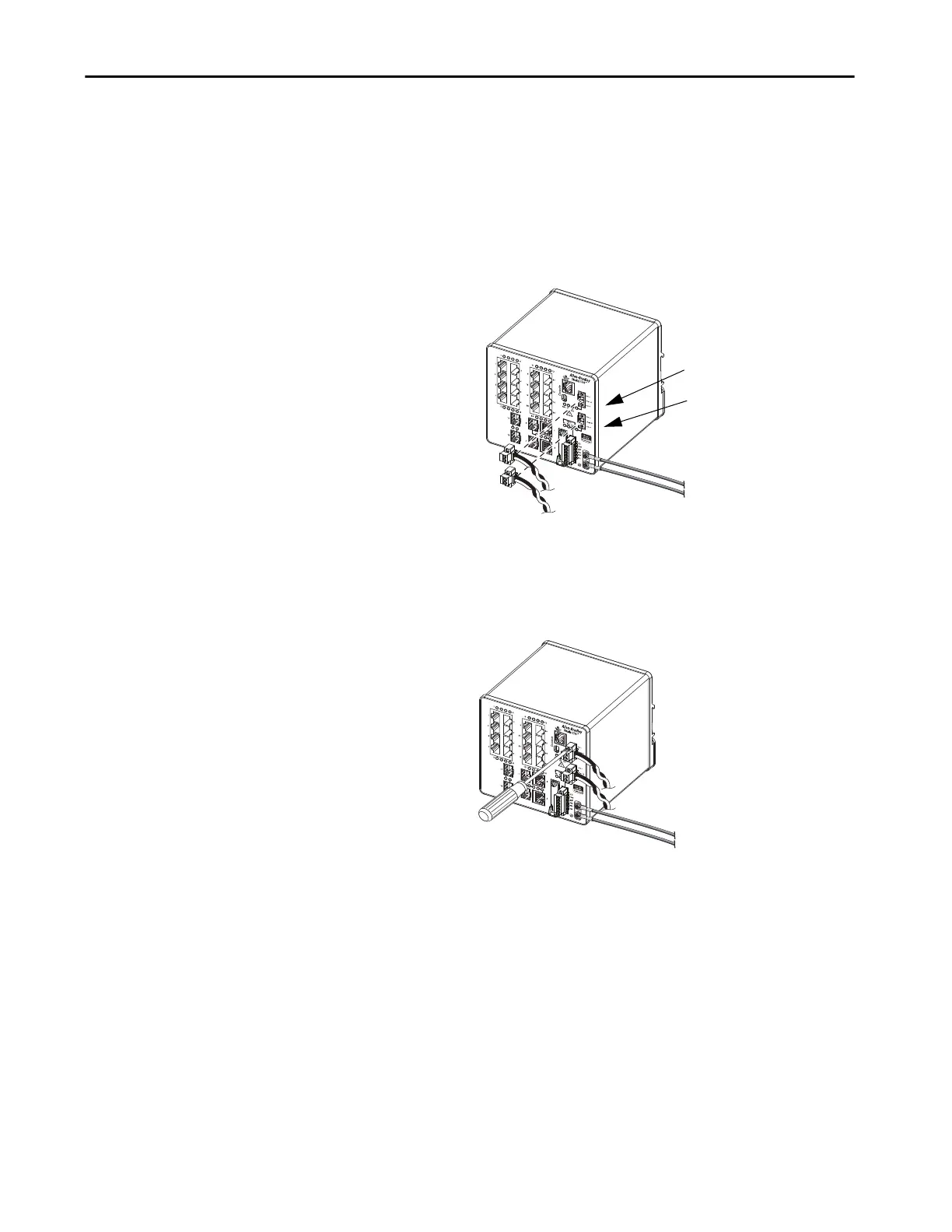

To attach the switch power connectors to the front panel of the switch, follow
these steps.
1. Insert one power connector into the Pwr A receptacle on the switch
front panel, and the other into the Pwr B receptacle.
2. Use a ratcheting torque flathead screwdriver to tighten the captive
screws on the sides of the power connectors.
When you test the switch, one power source is sufficient. If you install
the switch and use a second power source, repeat this procedure for the
second power connector (Pwr B), which installs just below the primary
power connector (Pwr A).
3. When you install the switch, secure the wires from the power connectors
to the rack by using tie wraps.
Pwr A Receptacle
Pwr B Receptacle
32283-M
32284-M
