Chapter 8 Monitor the Switch
m
Monitor DLR Status via the Logix Designer Application
From the navigation pane, expand Device Level Ring (DLR), expand Ring 1,
Ring 2, or Ring 3, and then click one of the following:
• To view the status and parameters that are configured for the switch, the
redundant gateway, and the active ring supervisor, click Statistics.

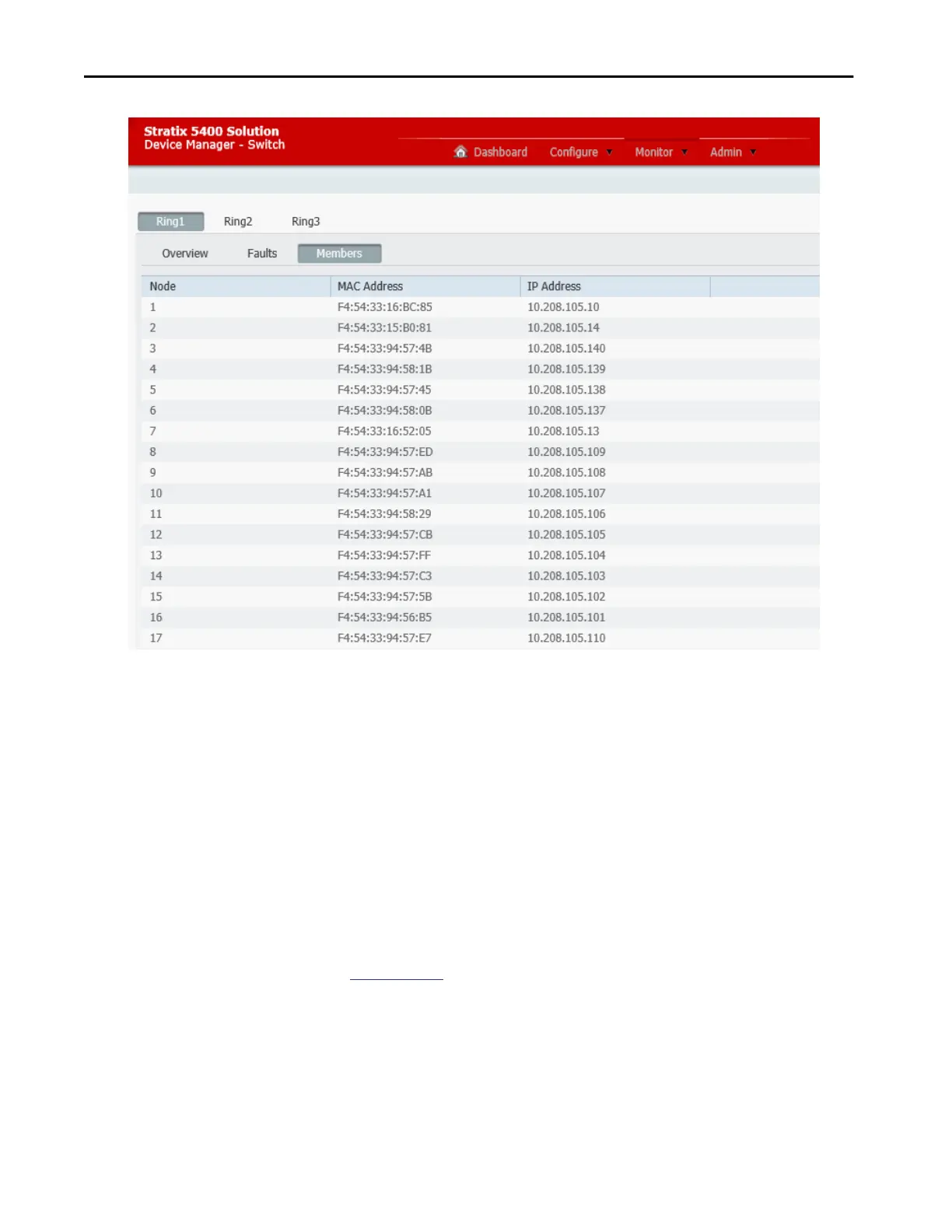

• To view the MAC and IP addresses of each device in the ring, click
Members.
To obtain network diagnostic information via MSG instructions, see the
EtherNet/IP Embedded Switch Technology Application Guide, publication
ENET-AP005.
