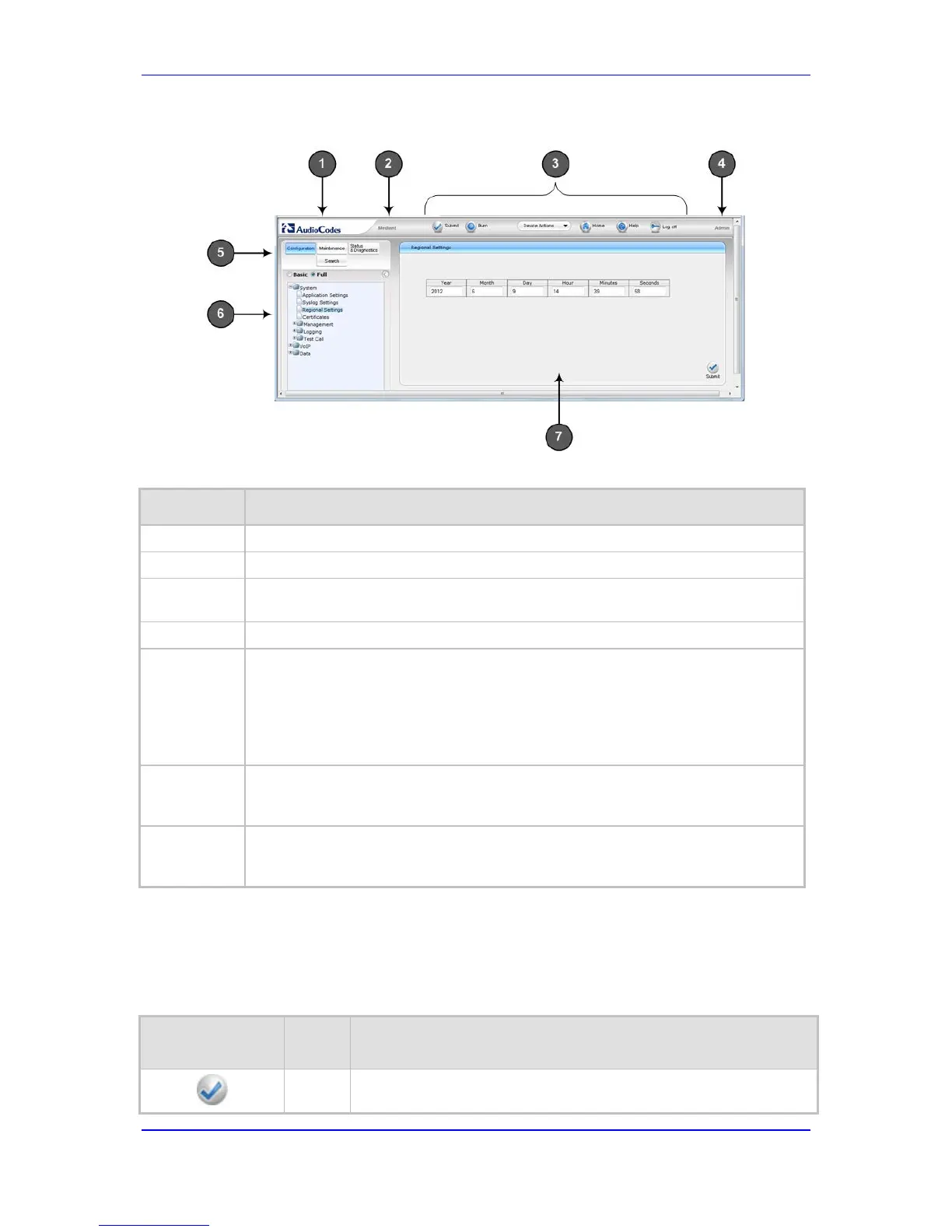

Figure 5-2: Areas of Web GUI
Description of the Web GUI Areas
Item # Description
1
Displays AudioCodes (corporate) logo image.
2
Displays the product name.
3
Toolbar, providing frequently required command buttons. For more information, see
'Toolbar Description' on page 47.
4
Displays the username of the Web user that is currently logged in.
5
Navigation bar, providing the following tabs for accessing various functionalities in
the Navigation tree:
 Configuration, Maintenance, and Status & Diagnostics tabs: Access the
configuration menus (see 'Working with Configuration Pages' on page 51)
 Search tab: Enables a search engine for searching configuration parameters
(see 'Searching for Configuration Parameters' on page 56)
6
Navigation tree, displaying a tree-like structure of elements (configuration menus or
search engine) pertaining to the selected tab on the Navigation bar. For more
information, see 'Navigation Tree' on page 48.
7
tree. This is where configuration is done. For more information, see 'Working with
Configuration Pages' on page
51.
5.1.4 Toolbar Description
The toolbar provides frequently required command buttons, described in the table below:
Description of Toolbar Buttons
Icon Button
Name
Description
Submit
Applies parameter settings to the device (see 'Saving Configuration'
on page 624).
