3.4.3.5.3 Configuring L2TP Server
The device can act as a Layer 2 Tunneling Protocol Server (L2TP Server), accepting L2TP
client connection requests.
¾ To configure L2PT:
1. Click the L2TP item (Configuration tab > Data Settings menu > VPN submenu >
L2TP page item); the following page appears:

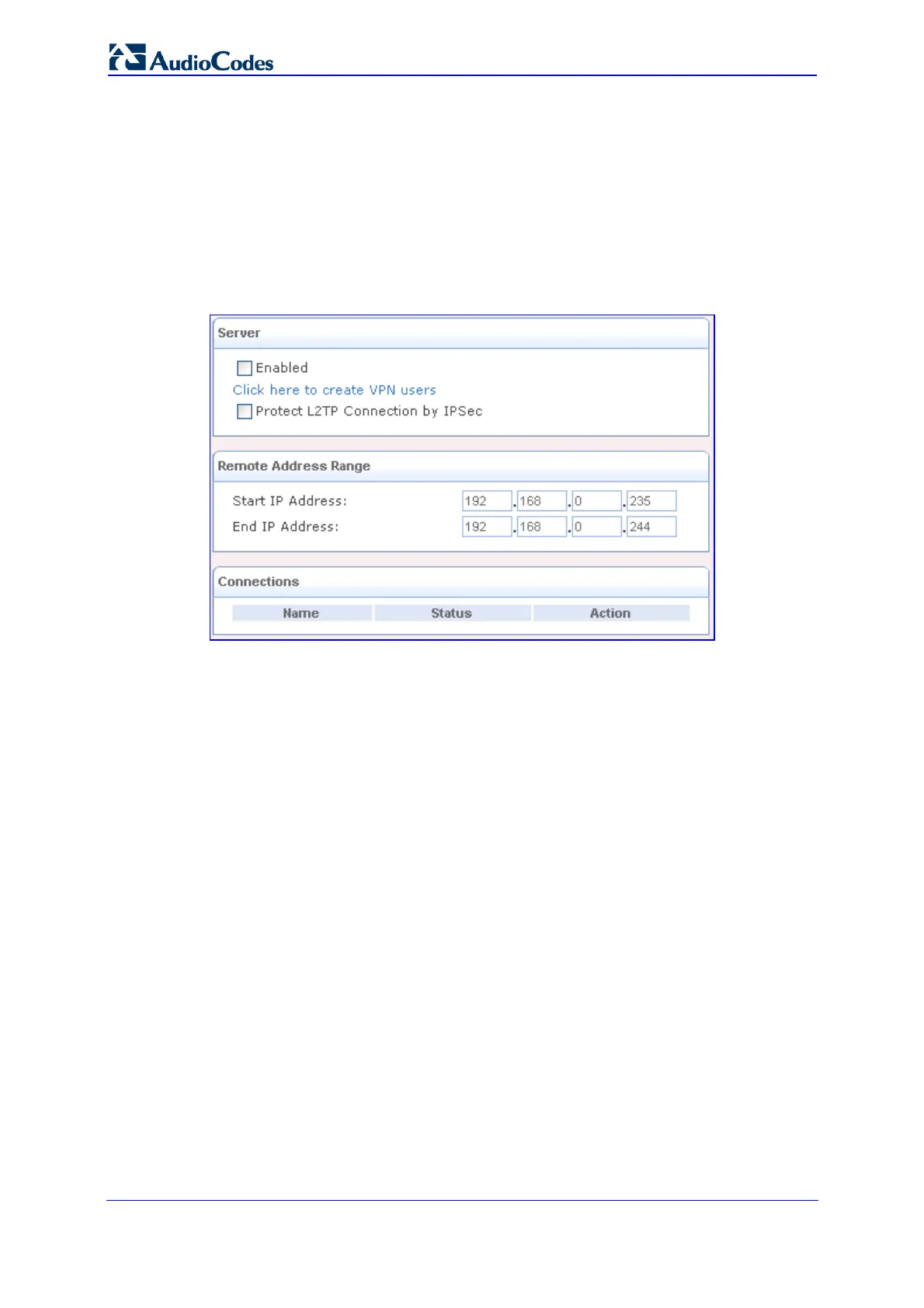

Figure 3-84: Configuring VPN L2TP Server
2. Under the 'Server' group, perform the following:
a. Select the 'Enabled' check box to enable the L2TP feature. Note that checking
this box creates a L2TP server (if not yet created with the wizard), but does not
define remote users.
b. Click the Click here to create VPN users link to define remote users that are
granted access to your home network (refer to ''Creating VPN Users'' on page
103).
c. Select the 'Protect L2TP Connection by IPSec' to secure the L2TP connection by
the IP Security (IPSec) protocol. When enabled, the following entry appears:
♦ Create Default IPSec Connection: When creating an L2TP Server with the
connection wizard, a default IPSec connection is created to protect it. If you
wish to disable this feature, clear this option. However, if L2TP protection is
enabled by IPSec (see previous entry), you must provide an alternative,
active IPSec connection for users to be able to connect. When this feature is
enabled, the following entry appears.
9 L2TP Server IPSec Shared Secret: change the IPSec shared secret
provided when the connection was created.
d. Click the Advanced button, and then configure the following:
♦ In the 'Maximum Idle Time to Disconnect in Seconds' field, specify the
amount of idle time (during which no data is sent or received) that should
elapse before the device disconnects an L2TP connection.
♦ Select the 'Authentication Required' check box to enable L2TP to use
authentication, and then select the algorithms the server may use when
authenticating its clients.
