SIP User's Manual 9. IP Telephony Capabilities
9.20.5 FXS Gateway Configuration
The procedure below describes how to configure the FXS interface (at the 'remote PBX
extension').
¾ To configure the FXS interface:
1. In the ‘Trunk Group Table’ page (refer to , assign the phone numbers 100 to 104 to the
device's endpoints.

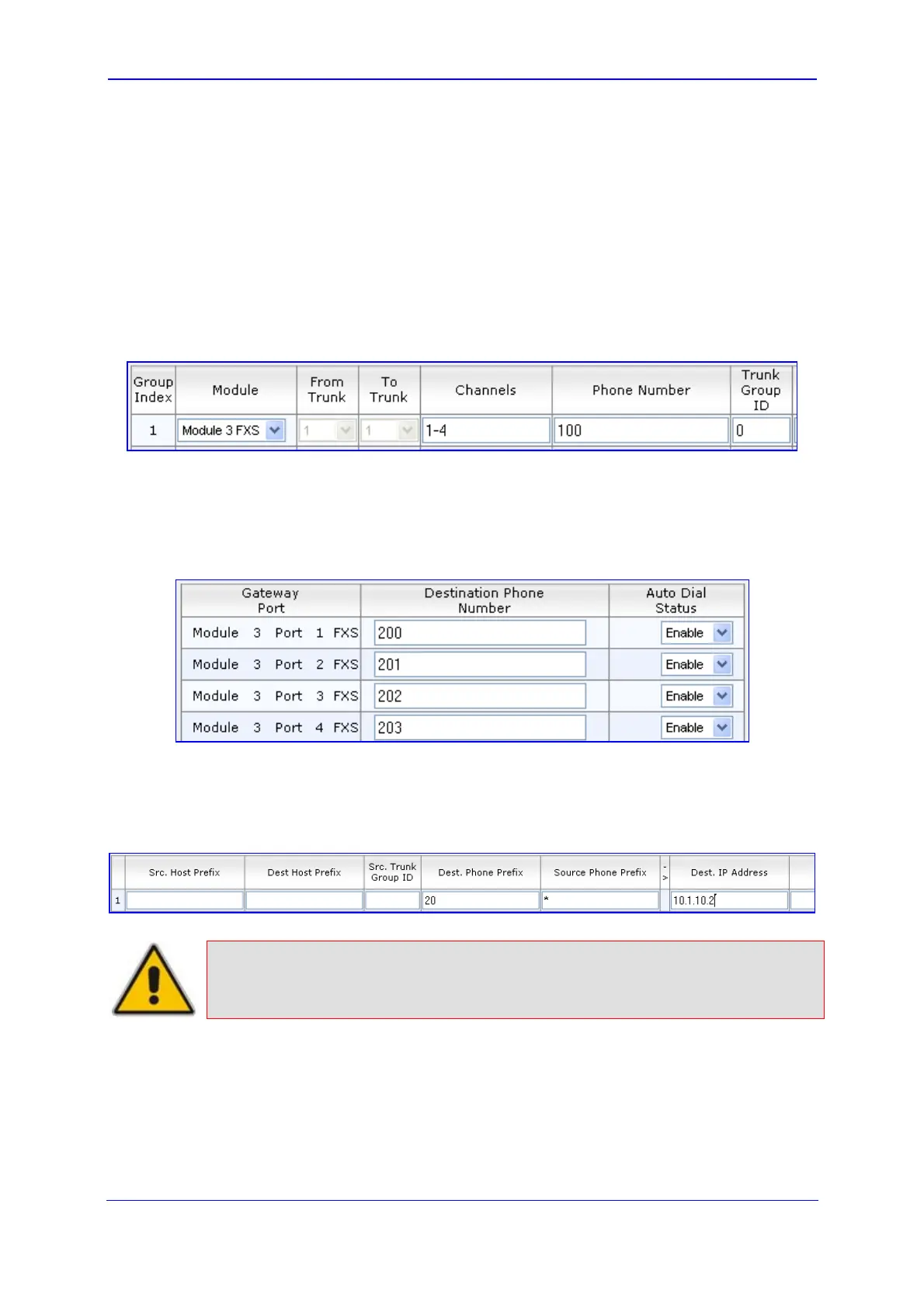

Figure 9-55: Assigning Phone Numbers to FXS Endpoints
2. In the ‘Automatic Dialing’ page (refer to ''Automatic Dialing'' on page 213), e
nter the
phone numbers of the FXO device in the ‘Destination Phone Number’ fields. When a
phone connected to Port #1 off-hooks, the FXS device automatically dials the number
‘200’.
Figure 9-56: Automatic Dialing for FXS Ports
3. In the ‘Tel to IP Routing’ page (refer to ''Tel to IP Routing Table'' on page 201), enter
20 for the destinatio
n phone prefix, and 10.1.10.2 for the IP address of the FXO
device.
Figure 9-57: FXS Tel-to-IP Routing Configuration
Note: For the transfer to function in remote PBX extensions, Hold must be disabled
at the FXS device (i.e., Enable Hold = 0) and hook-flash must be transferred
from the FXS to the FXO (HookFlashOption = 4).
