SIP User's Manual 56 Document #: LTRT-12801
MP-500 MSBG
3.3.1 Assigning a Port Name
The 'Home' page allows you to assign an arbitrary name or a brief description to each port.
This description appears as a tooltip when you move your mouse over the port.
¾ To add a port description:
1. Click the required port icon; a shortcut menu appears, as shown below:

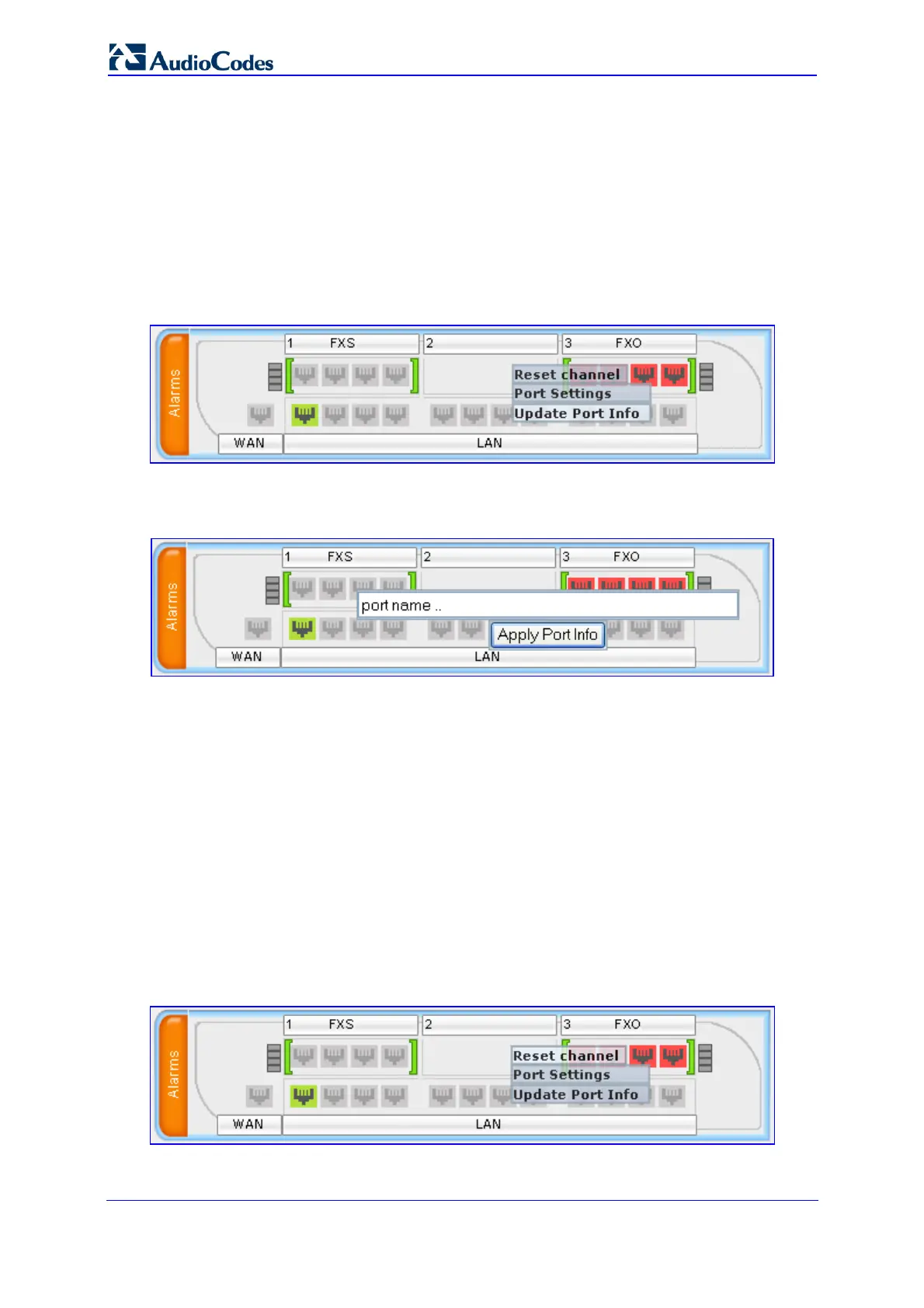

Figure 3-29: Shortcut Menu for Assigning Port Name
2. From the shortcut menu, choose Update Port Info; a text box appears.
Figure 3-30: Text Box for Entering Port Name
3. Type a brief description for the port, and then click Apply Port Info.
3.3.2 Resetting an Analog Channel
The 'Home' page allows you to inactivate (reset) an FXO or FXS analog channel. This is
sometimes useful in scenarios, for example, when the device (FXO) is connected to a PBX
and the communication between the two can't be disconnected (e.g., when using reverse
polarity).
¾ To reset a channel:
îš„ Click the required FXS or FXO port icon, and then from the shortcut menu, choose
Reset Channel; the channel is changed to inactive (i.e., the port icon is displayed in
grey).
Figure 3-31: Shortcut Menu for Resetting Port
