a. Start IP Address: first IP address that can be assigned to a LAN host. Since the
device's default IP address is 192.168.1.1, this address must be 192.168.1.2 or
greater.
b. End IP Address: last IP address in the range that can be used to automatically
assign IP addresses to LAN hosts.
c. Subnet Mask: mask used to determine to what subnet an IP address belongs
(e.g.,255.255.0.0).
d. Lease Time In Minutes: each LAN host is assigned an IP address by the DHCP
server for a this amount of time, when it connects to the network. When the lease
expires, the server determines if the computer has disconnected from the
network. If it has, the server may reassign this IP address to a newly-connected
computer. This feature ensures that IP addresses that are not in use become
available for other computers on the network.
e. Provide Host Name If Not Specified by Client: if the DHCP client does not have
a host name, the device automatically assign one.
f. Use Additional DNS Server: the additional DNS server address allows the
network administrator to provision the DHCP clients with another DNS server
(other than the device itself).
g. Click OK to save the settings.
5. If you selected 'DHCP Relay', the following appears:

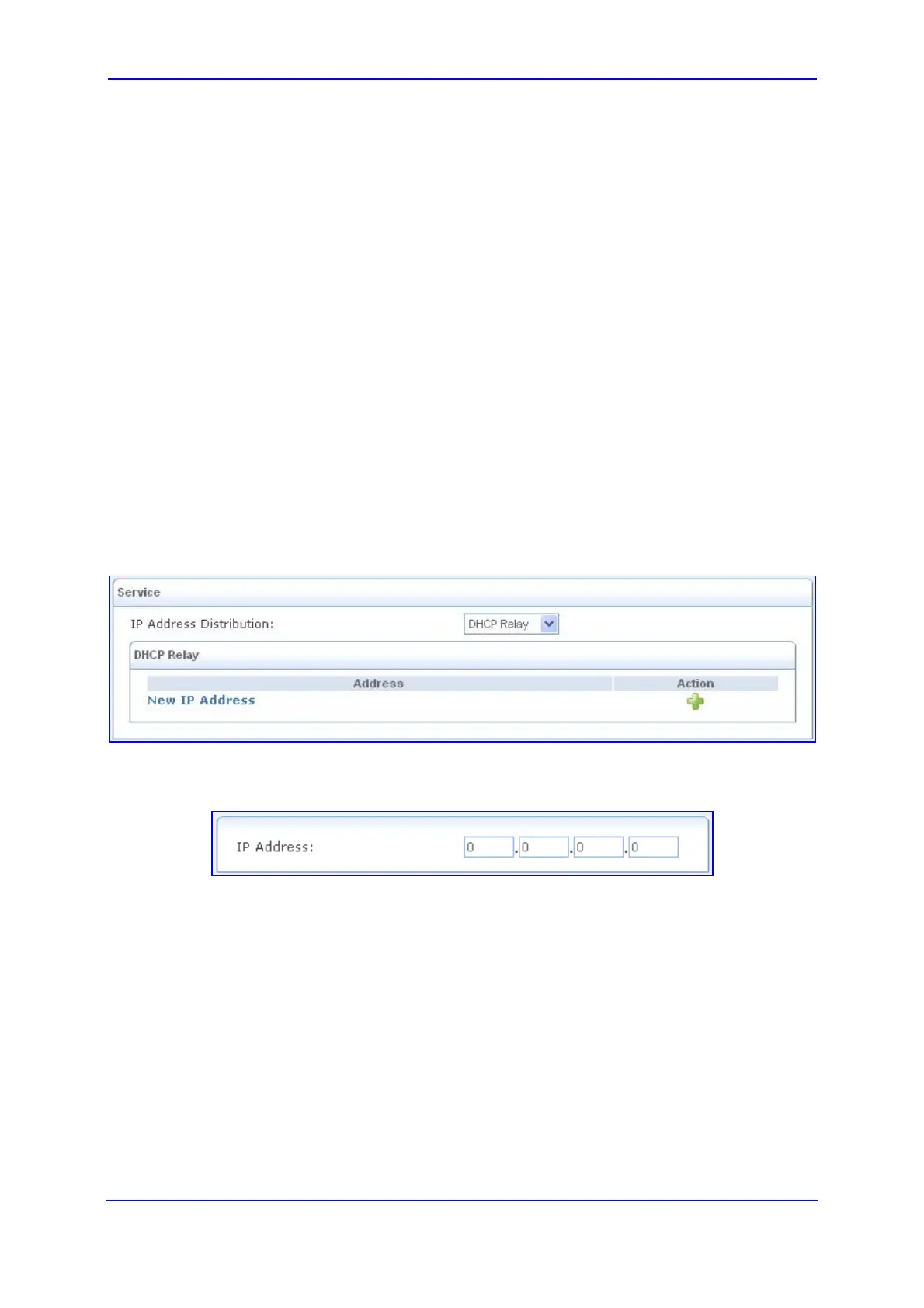

Figure 3-96: Defining DHCP Relay (DHCP for LAN Bridge)
a. Click the New IP Address link; the following page appears:
Figure 3-97: Defining DHCP Server's IP Address
b. In the 'IP Address' field, enter the IP address of the DHCP server.
c. Click OK to save the settings, and then click OK once again.
d. You now need to configure the WAN to operate in routing mode, which is
necessary for DHCP relay:
a. Click the Connections item (Configuration tab > Data Settings menu >
System submenu > Connections page item).
b. Click the Edit icon corresponding to the 'WAN Ethernet' connection;
c. Select the Routing tab, from the 'Routing Mode' drop-down list, select
'Route'.
d. Click OK to save the settings.
