SIP User's Manual 122 Document #: LTRT-12801
MP-500 MSBG
4. Click the New Entry link; the following page appears:

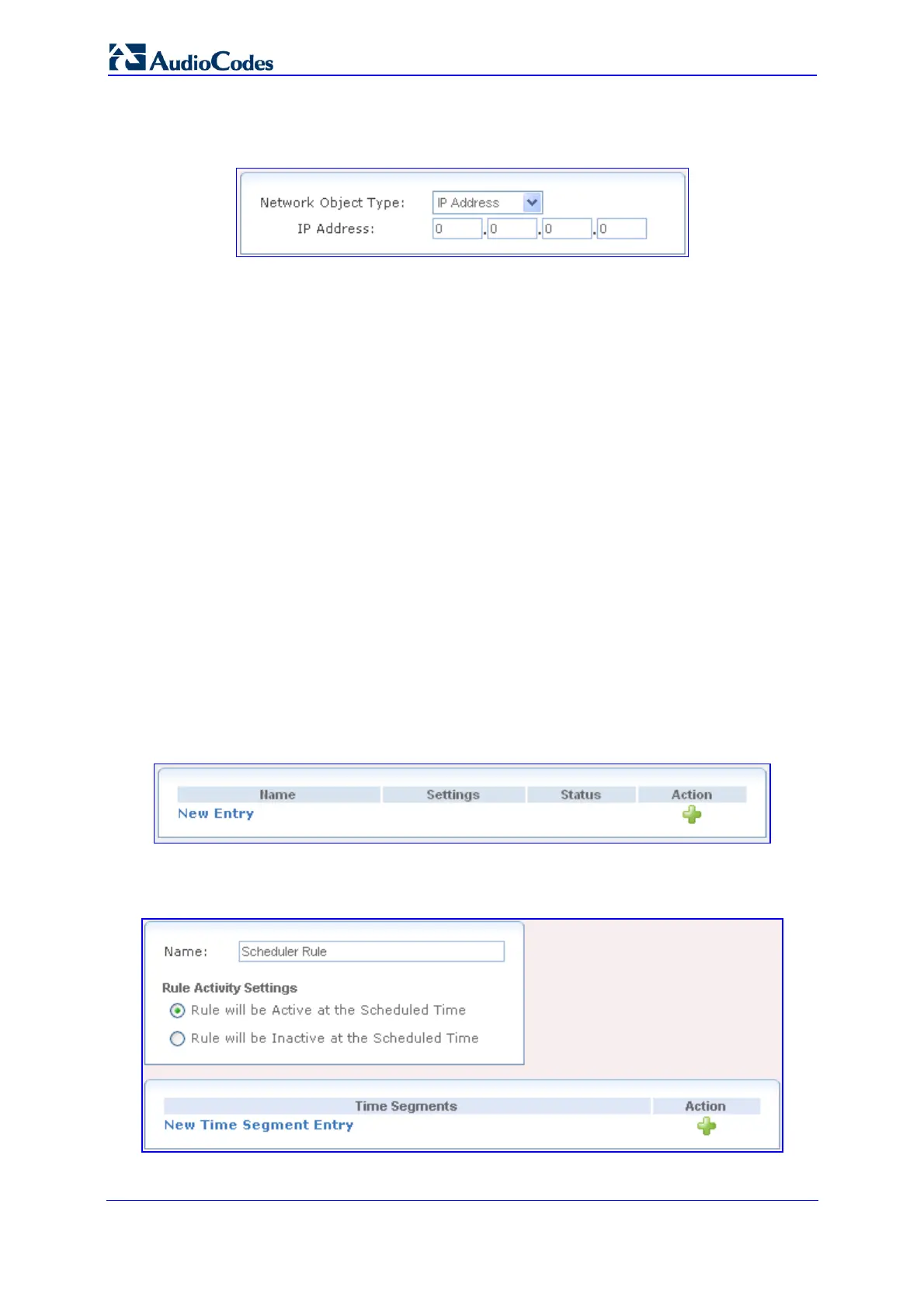

Figure 3-113: Defining Network Object Type
5. From the 'Network Object Type' drop-down list, select a network object type; the page
displays the respective fields for entering the relevant information. The group definition
can be according to one of the following:
• IP Address: enter an IP address common to the group.
• IP Subnet: enter a subnet IP address and a subnet mask.
• IP Range: enter first and last IP addresses in the range.
• MAC Address: enter a MAC address and mask.
• Host Name: enter a host name common to the group.
• DHCP Option: enter a vendor class ID, if available.
6. Click OK to save the settings.
3.4.3.8.3 Configuring Scheduler Rules
Scheduler rules are used for limiting the activation of Firewall rules to specific time periods,
specified in days of the week, and hours.
¾ To define a scheduler rule:
1. Click the Scheduler Rules item (Configuration tab > Data Settings menu > Objects
and Rules submenu > Scheduler Rules page item); the following page appears:
Figure 3-114: Configuring Scheduler Rules
2. Click the New Entry link; the following page appears:
Figure 3-115: Defining Scheduler Rule Name
