This page also provides VLAN-related parameters for enabling VLANs and for defining the
'Native' VLAN ID (VLAN ID to which incoming, untagged packets are assigned). For
assigning VLAN priorities and Differentiated Services (DiffServ) for the supported Class of
Service (CoS), refer to Configuring the QoS Settings on page 64.
Notes:
• When operating with both Voice and Data (router) functionalities, the
default gateway of the Voice interface (i.e., OAMP+Media+Control) must
be the IP address defined for the Data interface.
• The IP addresses of the Voice and Management (OAMP + Media +
Control), and Data must be in the same subnet.
• Once you access the 'Multiple Interface Table' page, the 'IP Settings'
page is no longer available.
• For a detailed description with examples for configuring multiple network
interfaces, refer to Network Configuration on page 546).
• You can view all configured IP interfaces that are currently active in the
'IP Active Interfaces' page (refer to ''Viewing Active IP Interfaces'' on
page 248).
• When adding more than one interface to the table, ensure that you
enable VLANs using the 'VLAN Mode' (VlANMode) parameter.
• For an explanation on configuring tables in the Web interface, refer to
''Working with Tables'' on page 37.
• You can also configure this table using the ini file table parameter
InterfaceTable (refer to ''Networking Parameters'' on page 291).
¾ To configure the multiple IP interface table:
1. Open the 'Multiple Interface Table' page (Configuration tab > Network Settings
menu > IP Settings>.

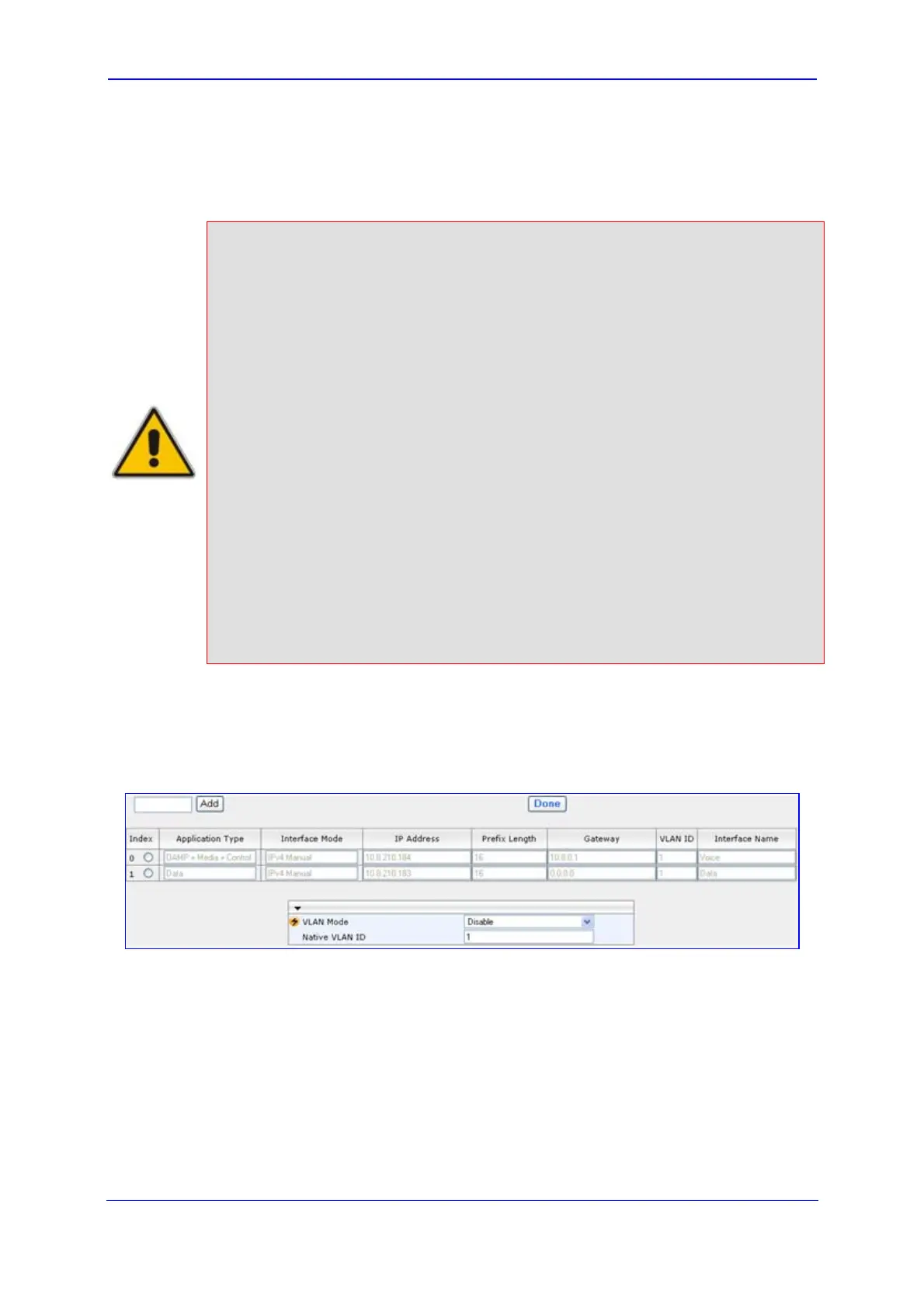

Figure 3-34: Multiple Interface Table Page
2. In the 'Add' field, enter the desired index number for the new interface, and then click
Add; the index row is added to the table.
3. Configure the interface according to the table below.
4. Click the Apply button; the interface is added to the table; the Done button appears.
5. Click Done to validate the interface. If the interface is not a valid (e.g., if it overlaps
with another interface in the table or it does not adhere to the other rules for adding
interfaces), a message is displayed to inform you and you must redefine your
interfaces accordingly.
6. To save the changes to flash memory, refer to ''Saving Configuration'' on page 237.
