SIP User's Manual 28 Document #: LTRT-12801
MP-500 MSBG
3.2.3 Areas of the GUI
The figure below displays the general layout of the Graphical User Interface (GUI) of the
Web interface:

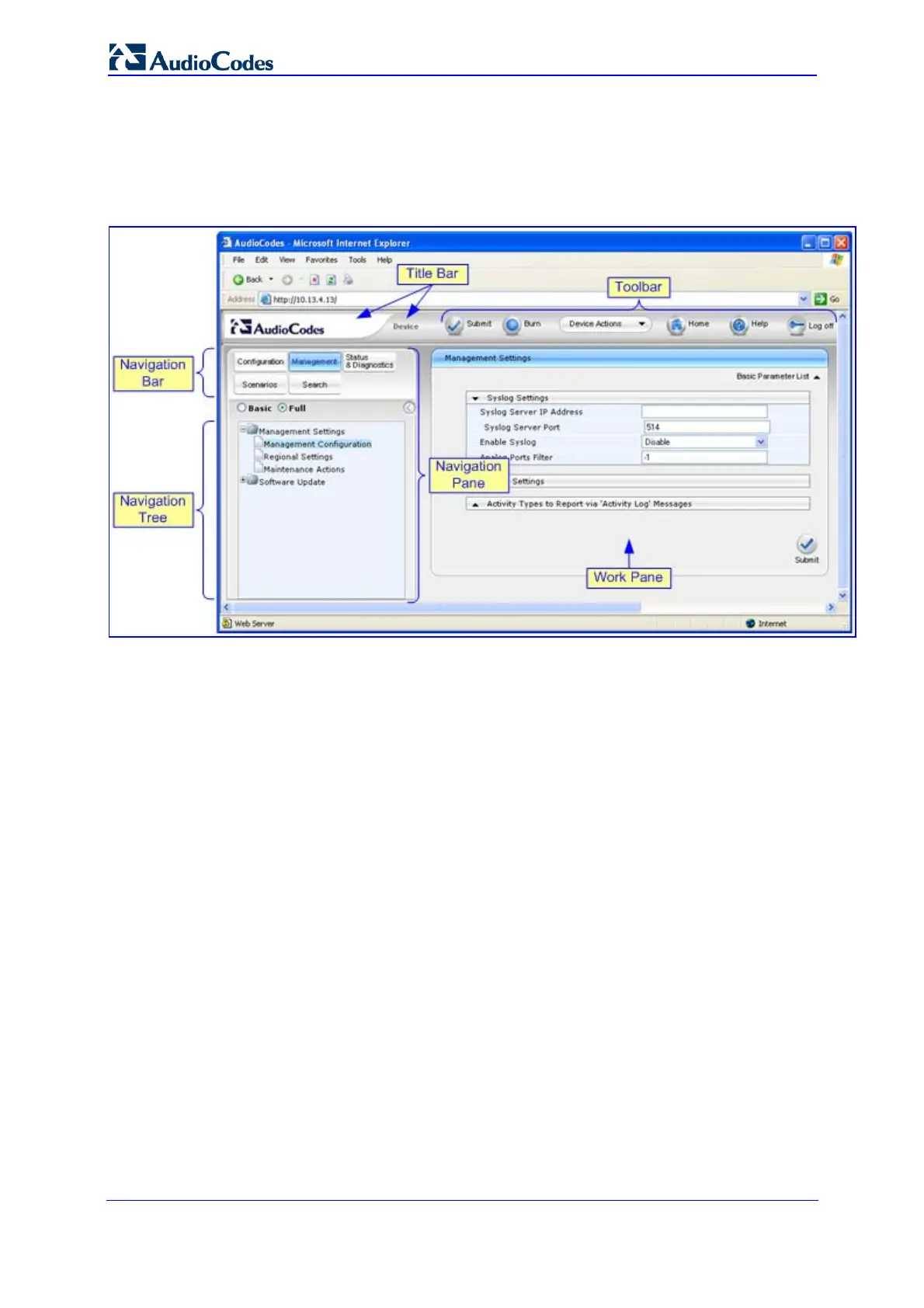

Figure 3-2: Main Areas of the Web Interface GUI
The Web GUI is composed of the following main areas:
îš„ Title bar: Displays the corporate logo and product name. For replacing the logo with
another image or text, refer to ''Replacing the Corporate Logo'' on page 48. For
cu
stomizing the product name, refer to ''Customizing the Product Name'' on page 50.
îš„ Toolbar: Pro
vides frequently required command buttons for configuration (refer to
''Toolbar'' on page 28).
îš„ Navigation Pane: Consists of the following areas:
• Navigation bar: Provides tabs for accessing the configuration menus (refer to
''Navigation Tree'' on page 30), creatin
g a Scenario (refer to ''Scenarios'' on page
41), and
searching ini file parameters that have corresponding Web interface
parameters (refer to ''Searching for Configuration Parameters'' on page 39).
• Nav
igation tree: Displays the elements pertaining to the tab selected on the
Navigation bar (tree-like structure of the configuration menus, Scenario Steps, or
Search engine) .
îš„ Work pane: Displays configuration pages where all configuration is performed (refer to
''Working with Configuration Pages'' on page 32).
