SIP User's Manual 252 Document #: LTRT-12801
MP-500 MSBG
3.6.2 Data Status
The Data Status menu is used to view and monitor the device's data routing functionality.
This menu includes the following page items:
îš„ WAN Status (refer to ''Viewing WAN Status'' on page 252)
îš„ LAN Status (refer to ''Viewi
ng LAN Status'' on page 253)
îš„ Fire
wall Connections (refer to ''Viewing Firewall Connections'' on page 255)
îš„ Con
nection Statistics (refer to ''Viewing Network Connection Statistics'' on page 256)
îš„ Secu
rity Log (refer to ''Viewing Logged Security Events'' on page 257)
îš„ QoS Con
nection Utilization (refer to ''Viewing Internet Connection Utilization'' on page
260)
îš„ QoS Cla
ss Statistics (refer to ''Viewing QoS Class Statistics'' on page 261)
îš„ Data Lo
g (refer to ''Viewing Logged System Events'' on page 261)
îš„ Diag
nostics (refer to ''Running Diagnostic Tests'' on page 262)
3.6.2.1 Viewing WAN Status
The WAN Status item allows you to view the WAN access status and provides a series of
diagnostic tests to validate your device's Internet connection. For the diagnostic tests, refer
to ''Running Internet Connectivity Diagnostic Tests'' on page 252.
¾ To view the status of the WAN connection:
îš„ Click the WAN Status item (Status & Diagnostics tab > Data Status menu > WAN
Status page item); the following page appears:

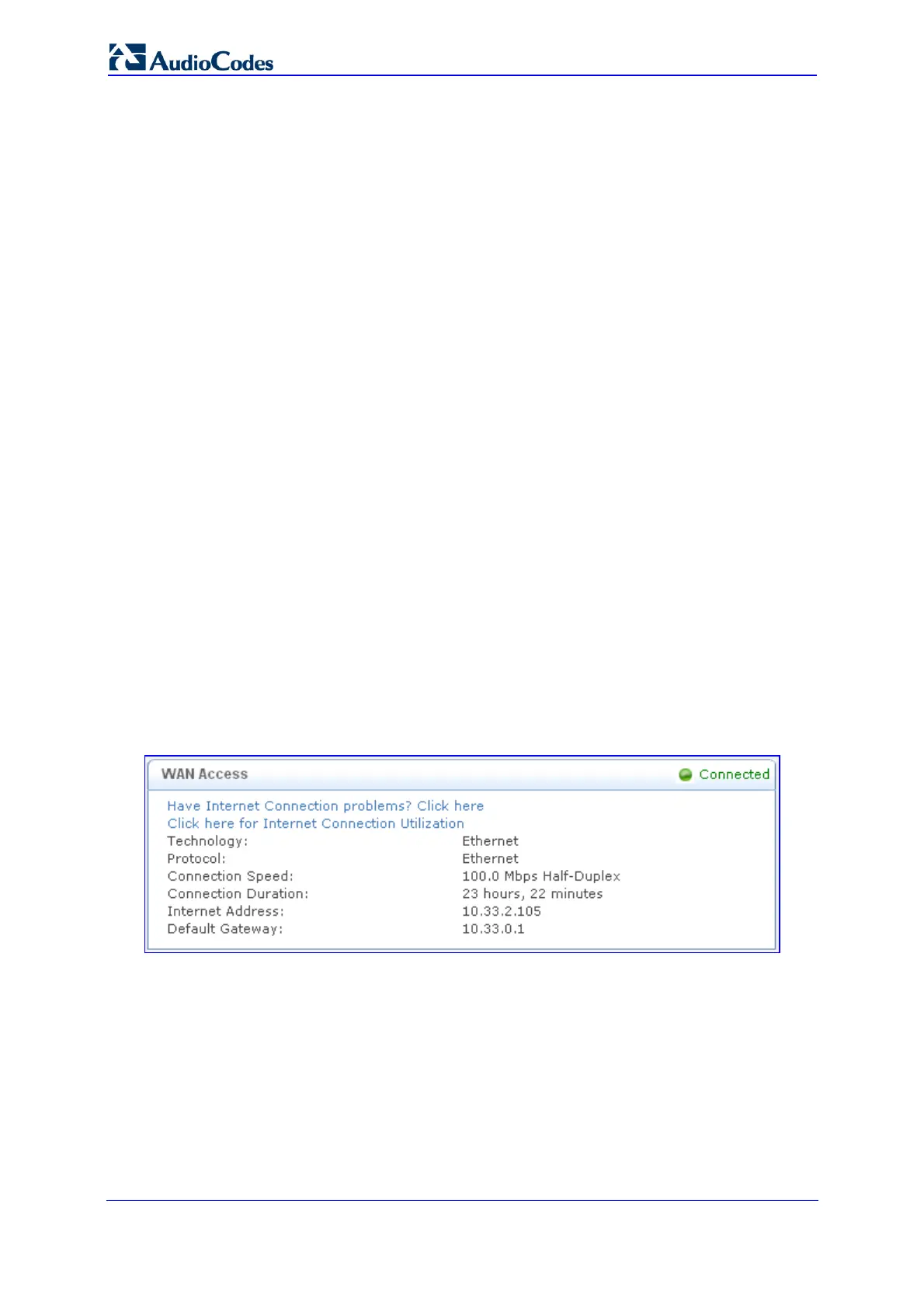

Figure 3-198: WAN Status
The status of the WAN interface is depicted by the ball-shaped icon located in the top-right
corner:
îš„ Green - "Connected": indicates a valid connection to the WAN network.
îš„ Red - "Cable Disconnected": Green: indicates that there is no connection to the WAN
network (cable disconnected).
