AudioCodes mediapack MP-500 User Manual

Version 5.8 227 October 2009
SIP User's Manual 3. Web-Based Management
3.4.6.3 Configuring FXO Parameters
The 'FXO Settings' page allows you to configure the device's specific FXO parameters. For
a description of these parameters, refer to ''Configuration Parameters Reference'' on page
291.
Note: The 'FXO Settings' page is available only for FXO interfaces.
¾ To configure the FXO parameters:
1. Open the 'FXO Settings' page (Configuration tab > Advanced Applications menu >
FXO Settings page item).

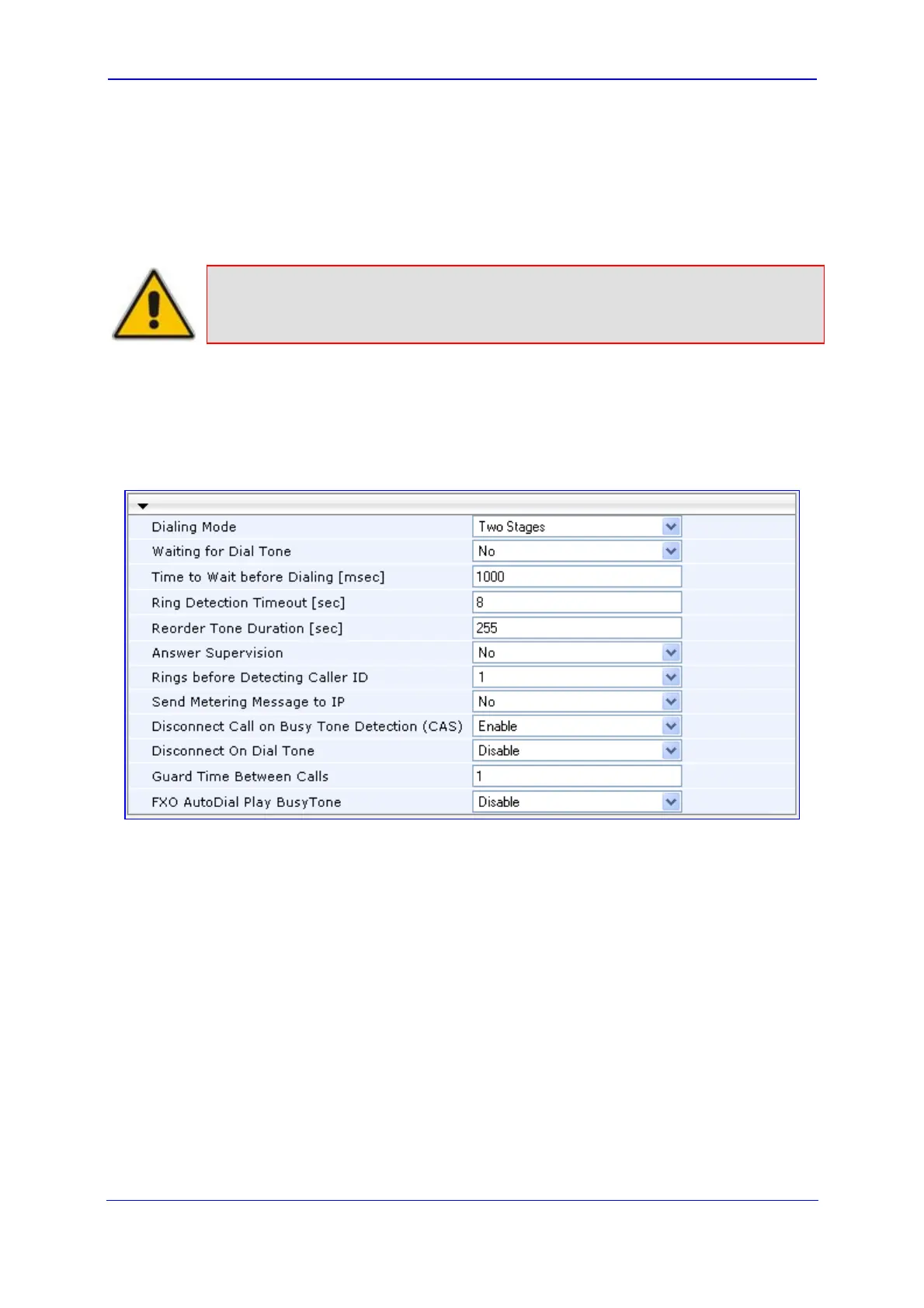

Figure 3-177: FXO Settings Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, refer to ''Saving Configuration'' on page 237.
