Version 5.8 121 October 2009
SIP User's Manual 3. Web-Based Management
4. In the 'Service Name' field, enter a name for the service.
5. Click the New Server Ports link; the following page appears:

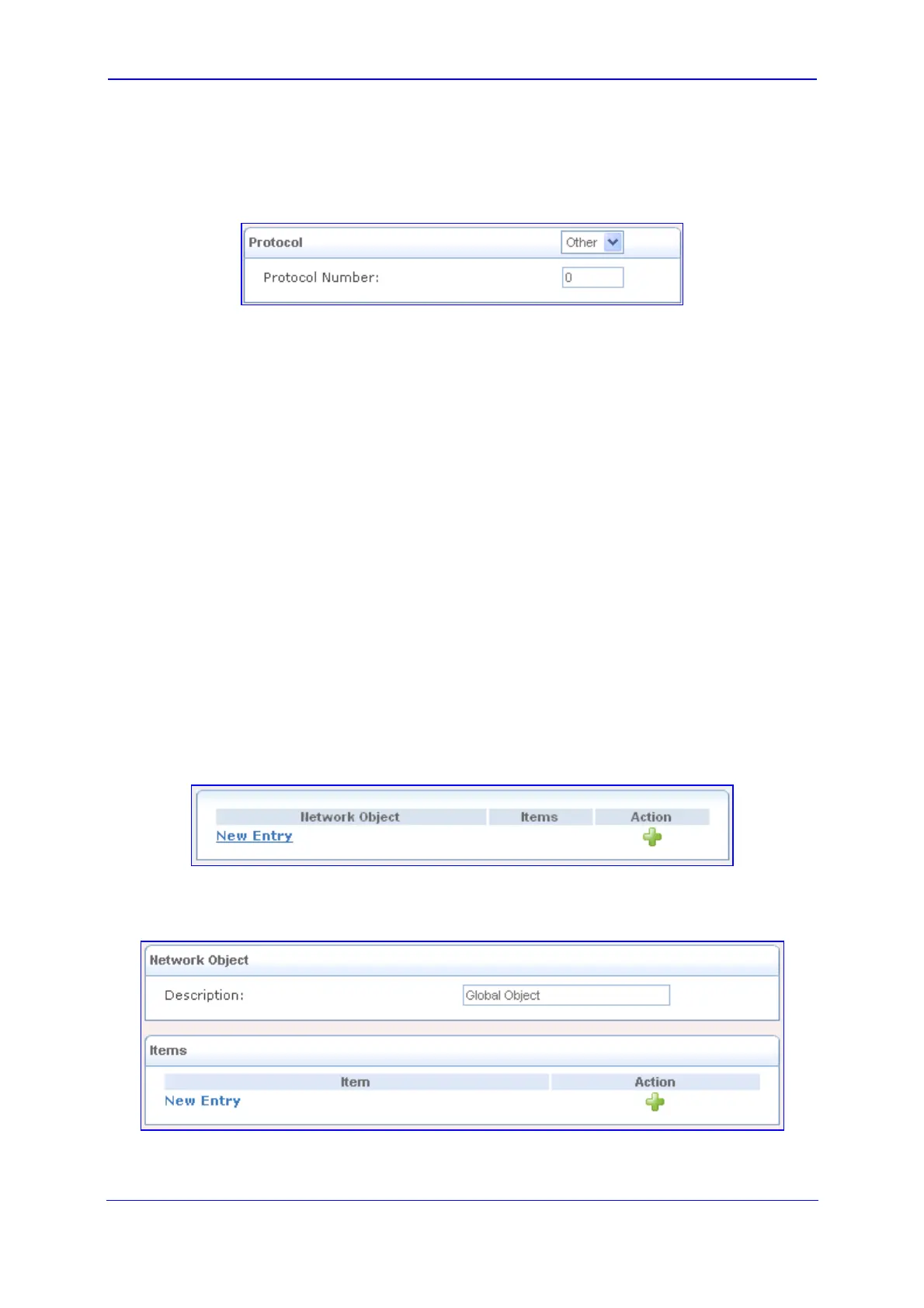

Figure 3-110: Defining Service Server Ports
6. From the 'Protocol' drop-down list, select any of the protocols available, or add a new
one by selecting 'Other'.
7. Enter the relevant information, and then click OK to save the settings.
3.4.3.8.2 Configuring Network Objects
Network Objects is a method used to logically define a set of LAN hosts according to
specific criteria such as MAC address, IP address, or host name. Defining such a group can
assist when configuring system rules. For example, network objects can be used when
configuring security filtering such as IP address, host name, or MAC address filtering. You
can use network objects to apply security rules based on host names instead of IP
addresses. This may be useful, since IP addresses change from time to time. It is also
possible to define network objects according to MAC addresses, making rule application
more persistent against network configuration settings. Moreover, the device supports
DHCP Option 60, enabling application of security and QoS rules on a network object
according to its unique vendor class ID. For example, a vendor's IP telephone can be
identified and applied with specific QoS priority rules.
¾ To define a network object:
1. Click the Network Objects item (Configuration tab > Data Settings menu > Objects
and Rules submenu > Network Objects page item); the following page appears:
Figure 3-111: Configuring Network Objects
2. Click the New Entry link; the following page appears:
Figure 3-112: Defining Name for Network Object
3. In the 'Description' field, enter a name for the network object.
