Chapter 13. Monitors and Shout Conguration
This chapter describes the monitoring and shout mixer communications functions of the HD96-24.
Monitor Conguration (A and B)

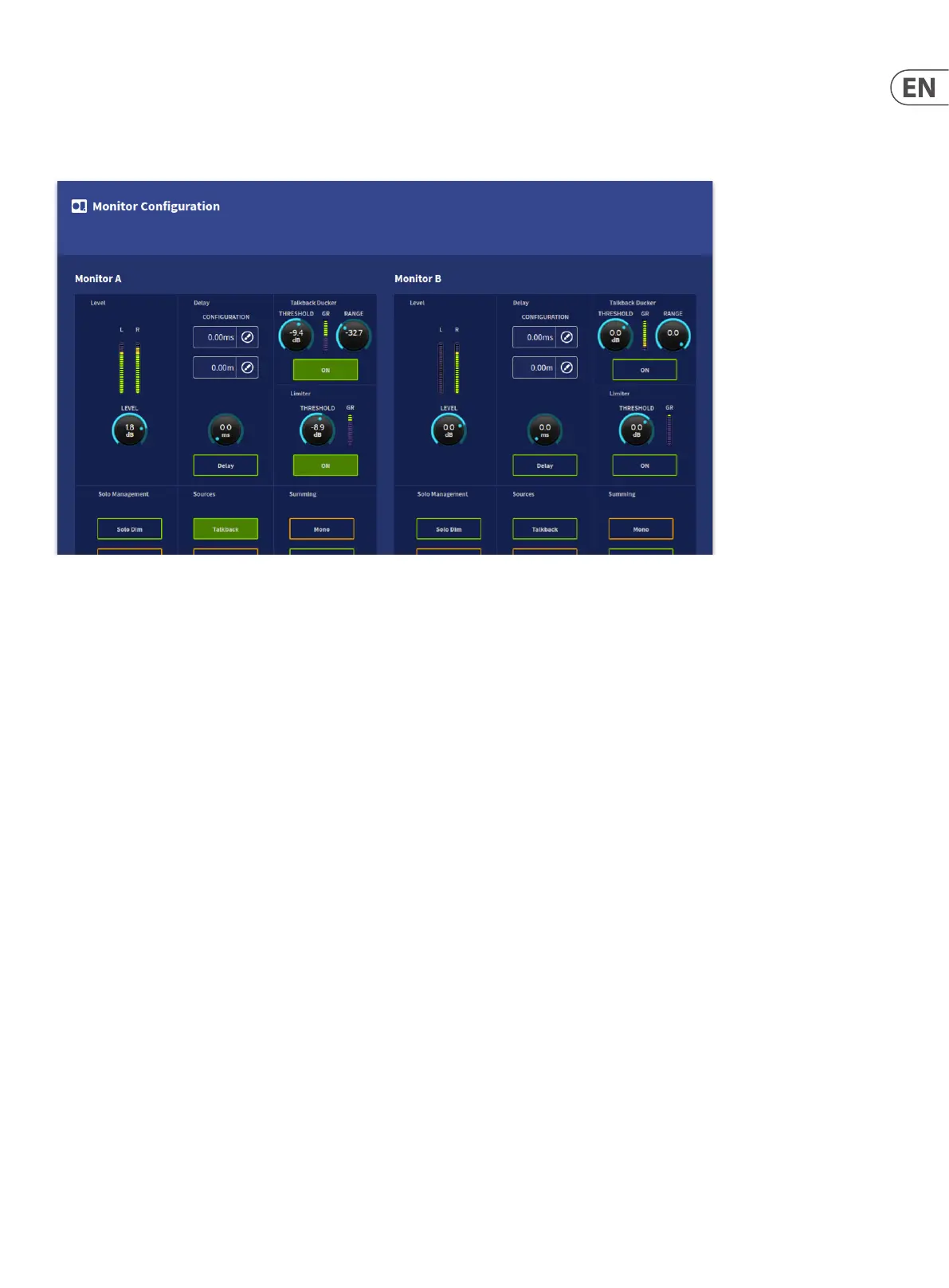

To match the two-bus solo system there are two monitor outputs, A and B, which control their respective output levels. These are controlled from the monitor section
on the surface or within the Monitor Conguration page in the GUI.
Each monitor
output has:
• • The facility to monitor mono and stereo outputs.
• • A stereo external input.
• • An external talkback input (line level on the rear of the surface or patchable).
• • A headphone output.
• • Delay Conguration.
• • Control of the solo busses.
• • Polarity, this ips the right side 180°.
• • Left to both A/B.
• • Right to both A/B.
• • Talkback Ducker
• • A Limiter to protect hearing.
For more information on this section please refer to Chapter 26 Preferences.
Although the capabilities of both monitors are the same, Monitor A is the primary output. They both have a fader control if required.
The monitor output controls will aect the levels shown in the Monitor Conguration page but are not
aected by automation.
The Monitor A and Monitor B meters monitor the peak signal levels of stereo left and right for both monitor paths. The metering capabilities of both monitors are
the same.
