190 HD96-24-CC-TP User Manual
To use Talk Groups:
1. In the Global Assignable Shortcuts area allocate the Talk Groups you wish to use to a shortcut destination.
2. Once a talk group is assigned press the SEL button to talk to the selected paths.
Mute groups
The HD96-24 has 12 dedicated Mute Groups that can be used alongside VCA mutes to turn on and o selected paths or channels. For example, muting multiple
instruments on stage or turn eects o at the end of songs.

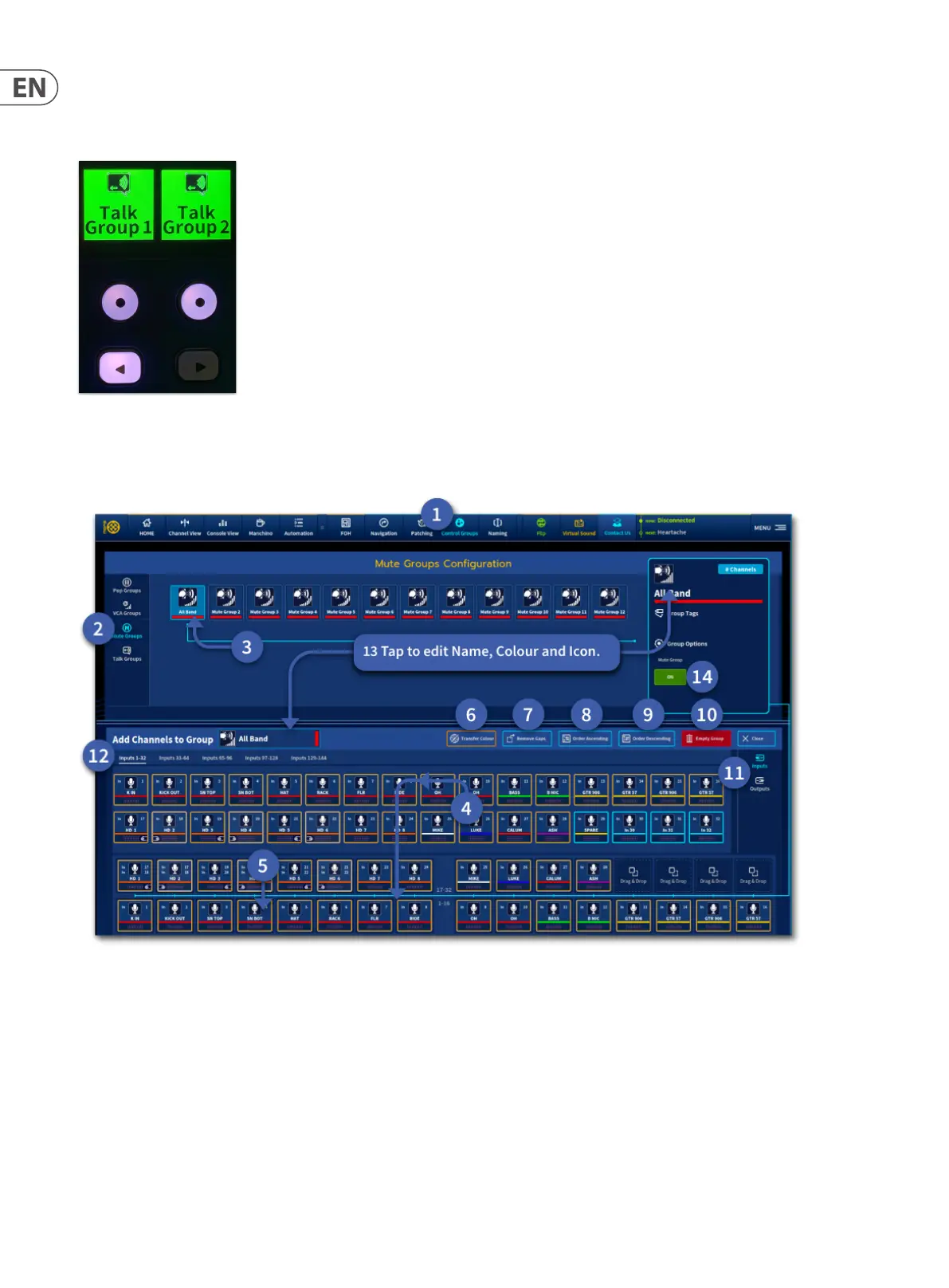

To set up Mute Groups:
1. Select the Groups icon from the top or side bar menu.
2. Press the Mute icon in the left-side to open the Mute Groups Selection page.
3. Select the Mute group you wish to edit. It now can be named, coloured and given a dierent icon if required by pressing on the large icon on the right-hand side of
the page. There is an option to Transfer colour to channels if desired and also the ability to follow tags as described earlier.
4. Now touch the channels you wish to add to the Mute Group. To the right are tabs for input and output page selection. A maximum number of 32 inputs and
outputs can be displayed at once in a Mute Group, swipe right to view channels 33 onwards. To remove a channel from a Mute Group, hold the desired icon until it
wiggles and drag it away from the Drag & Drop area, or tap the same icon used to initially add the path.
5. Transfer the colour of the Mute Group to all channels contained within it.
6. Remove Gaps If there are blank channels in the selected talk group, they will be removed with subsequent channels moved down to ll the gaps.
