Midas HD96-24-CC-TP User Manual

208 HD96-24-CC-TP User Manual
Press the Channel/Scene cell you wish to select. When a cell is selected it is highlighted with thin blue line around the edges. Pressing the channel number or scene
number selects all cells related to the chosen channel (vertical) or scene (horizontal).

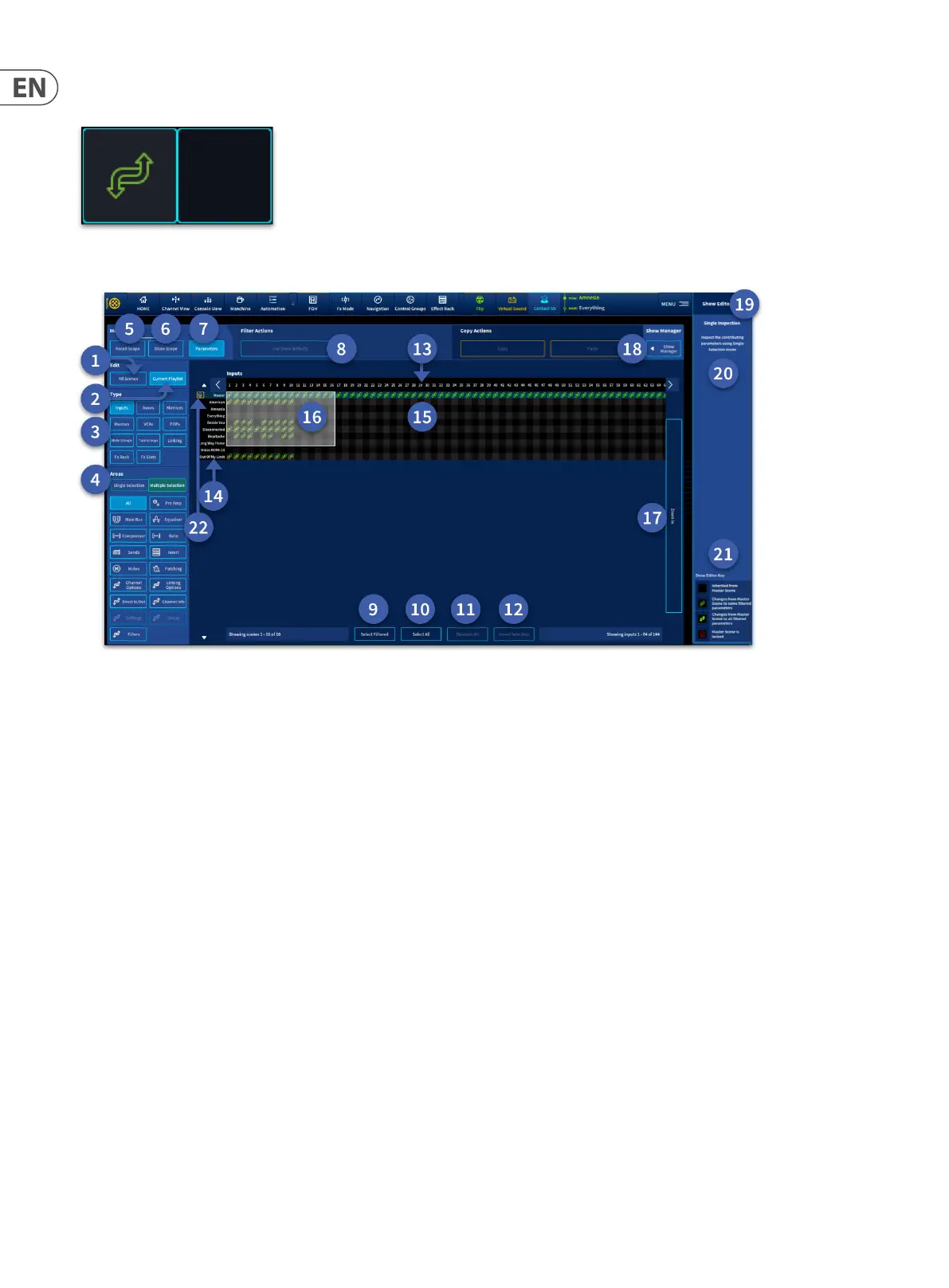

Parameters Mode Overview
1. All Scenes – Any changes made in All Scenes mode will aect all playlists within that show.
2. Current Playlist – Change made will only aect currently loaded playlist.
3. Type – All the parameters here can be individually added to the recall or store scope. Selecting a type will change which parameters can be scoped in the “Areas”
section. Types available are: Inputs, Auxes, Matrices, Masters, VCAs, POPs and Misc.
4. Areas – Depending on the Type selected, various parameters can be selected to either see if a parameter has been stored and is dierent from the master scene
(green arrows or area icon). Areas available are All, Pre-Amp, Main Bus, Equaliser, Compressor, Gate, Sends, Insert On, Mutes, Patching, Channel Options, Linking
Options, Direct In/Out, Channel Info, Physical Devices, Group, Linking, Settings, FX Rack and Filters. Single Selection mode allows one parameter to be looked at in
isolation. Multiple Selection mode allows combinations of dierent types to be used to make multiple adjustments at once.
5. Recall Scope – In this mode channels/scenes in Recall Scope will be shown by a purple padlock.
6. Store Scope – In this mode channels/scenes in Store Scope will be displayed by a blue padlock.
7. Parameters – In this mode channels/scenes that dier from the master scene will be displayed by green arrows.
8. Use Show Defaults (Filter Actions Parameters) – When in Parameters mode using this function will reset any selected cells and use settings from the Master
Scene once again.
9. Select Filtered – Any cells in use (with corresponding icon) will be highlighted.
10. Select All – Selects all cells.
11. Deselect All – Clears all current selections.
12. Invert Selection – Deselects all currently selected cells and selects all unselected cells.
13. Channel Number – Displays all the channels available. Use the arrows to navigate to any number o screen. In Zoom pressing the channel number selects all
scenes for the selected channel.
14. Scenes List – Displays all current scenes (depending on Show/Scene selection) in order. In Zoom pressing a scene name selects all channels horizontally across
the editor page.

Midas HD96-24-CC-TP Specifications

General

Brand	Midas
Model	HD96-24-CC-TP
Category	DJ Equipment
Language	English
