84 HD96-24-CC-TP User Manual
Channel Conguration (Cong)
First select the channel or output you wish to edit. In the channel or output widget the top option on the left is Conguration. This area has ve pages which can be
changed by touching the next or previous name in the list or by using the arrows either side.
For Inputs
Conguration

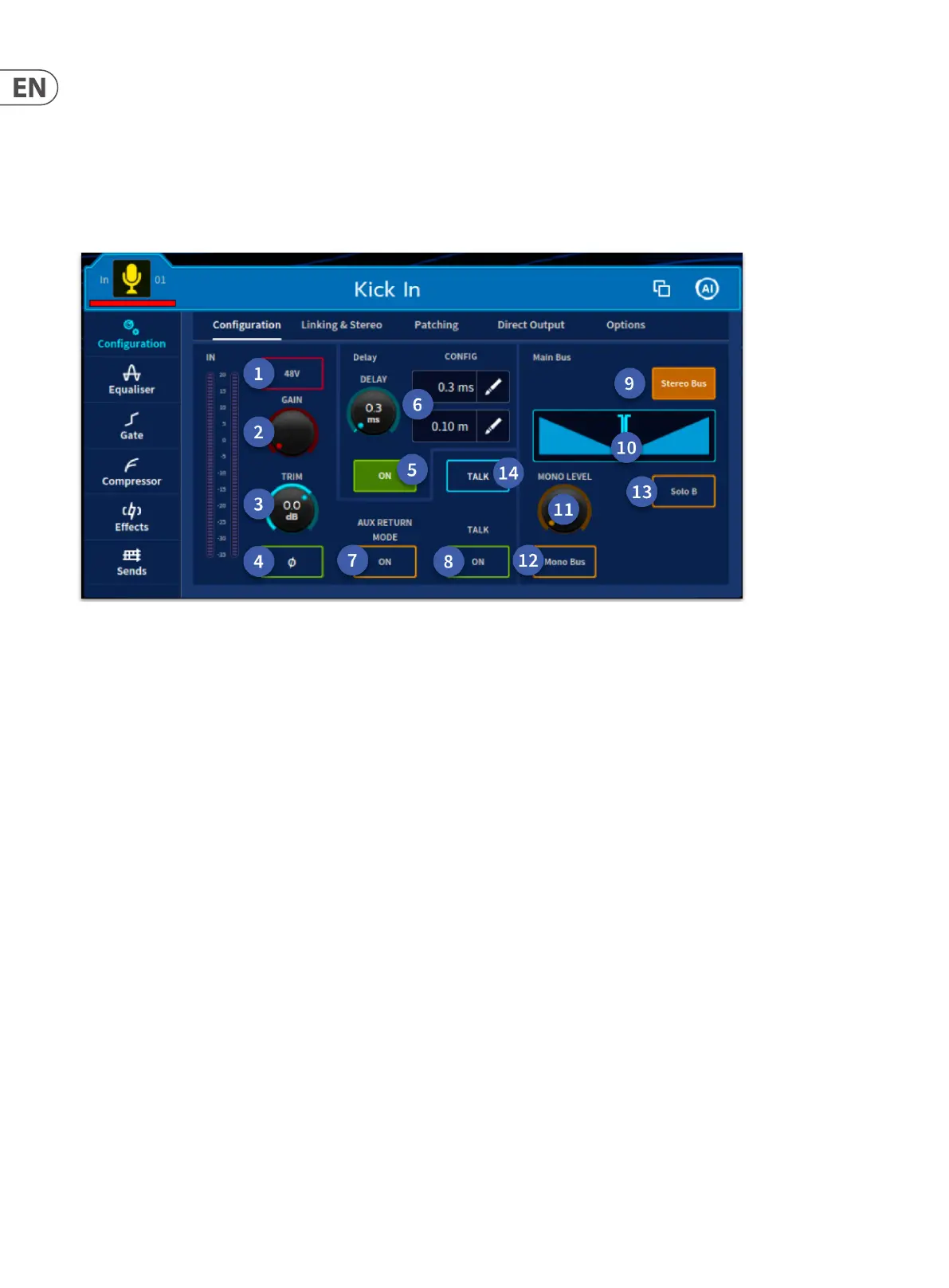

The Conguration page allows you to set many of the basic functions needed to start mixing audio.
1. 48 V.
2. Mic Preamp Gain (available when patched).
3. Digital Trim.
4. Ø (180° Polarity change).
5. Delay On/O. (max 50.0 ms).
6. Delay Time (displayed in milliseconds and meters).
7. Aux Return mode.
8. Talk On/O.
9. Stereo Bus (routes the channel to the Stereo Master Bus).
10. Pan (position within the Stereo Master Bus).
11. Mono Level.
12. Mono Bus (routes the channel to the Mono Bus).
13. Solo B (sets whether the channel will be soloed on the Monitor A or Monitor B bus).
14. Talk assignment (press to change to one of the 12 shout mixer paths).
