92 HD96-24-CC-TP User Manual

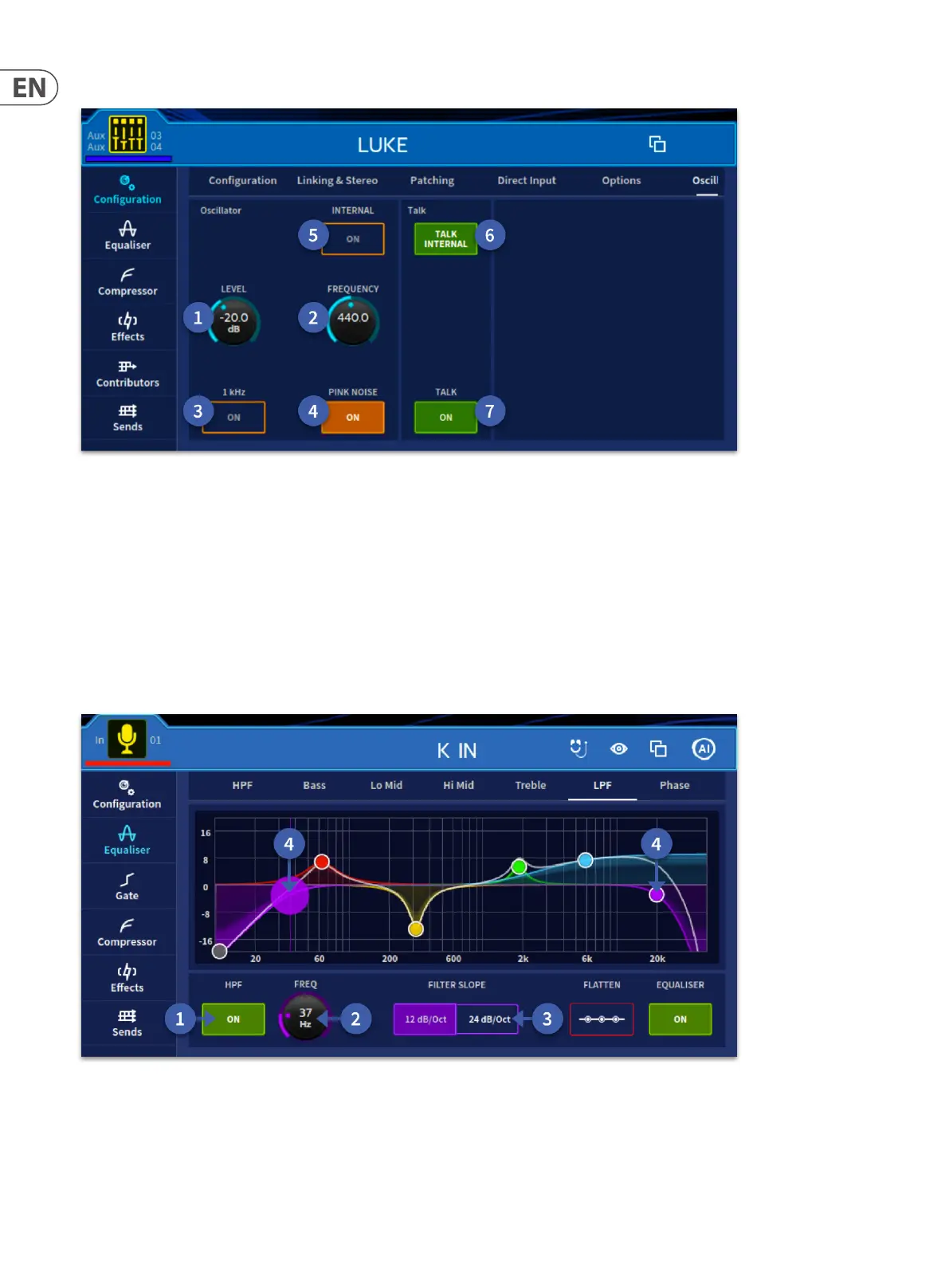

Oscillator (Output Widget)
1. Oscillator Level control.
2. Frequency control (50 Hz to 5 kHz).
3. 1 kHz xed tone.
4. Pink Noise on/o.
5. Internal send on/o.
6. Oscillator to Talk Internal on/o
7. Talk on/o.
Setting the HPF and LPF
The high and low pass lters can be switched on/o independently of each other. Each lter has two slope settings. The lters are replicated on the GUI, which also
shows the value of the frequency and lter slope cuto.
First select the channel you wish to adjust by either pressing the appropriate SEL button on the surface or via the GUI.
1. In the Equaliser section the High Pass Filter (HPF) and Low Pass Filter (LPF) can be toggled on and o with the ON button depending on selection.
2. Frequencies are dened with the corresponding HPF/LPF Freq controls. The ranges are 10Hz to 10 kHz for the high pass lter and 40Hz to 20kHz for the low pass
lter. When either lter is switched on it is highlighted purple in the widget.
