131 HD96-24-CC-TP User Manual

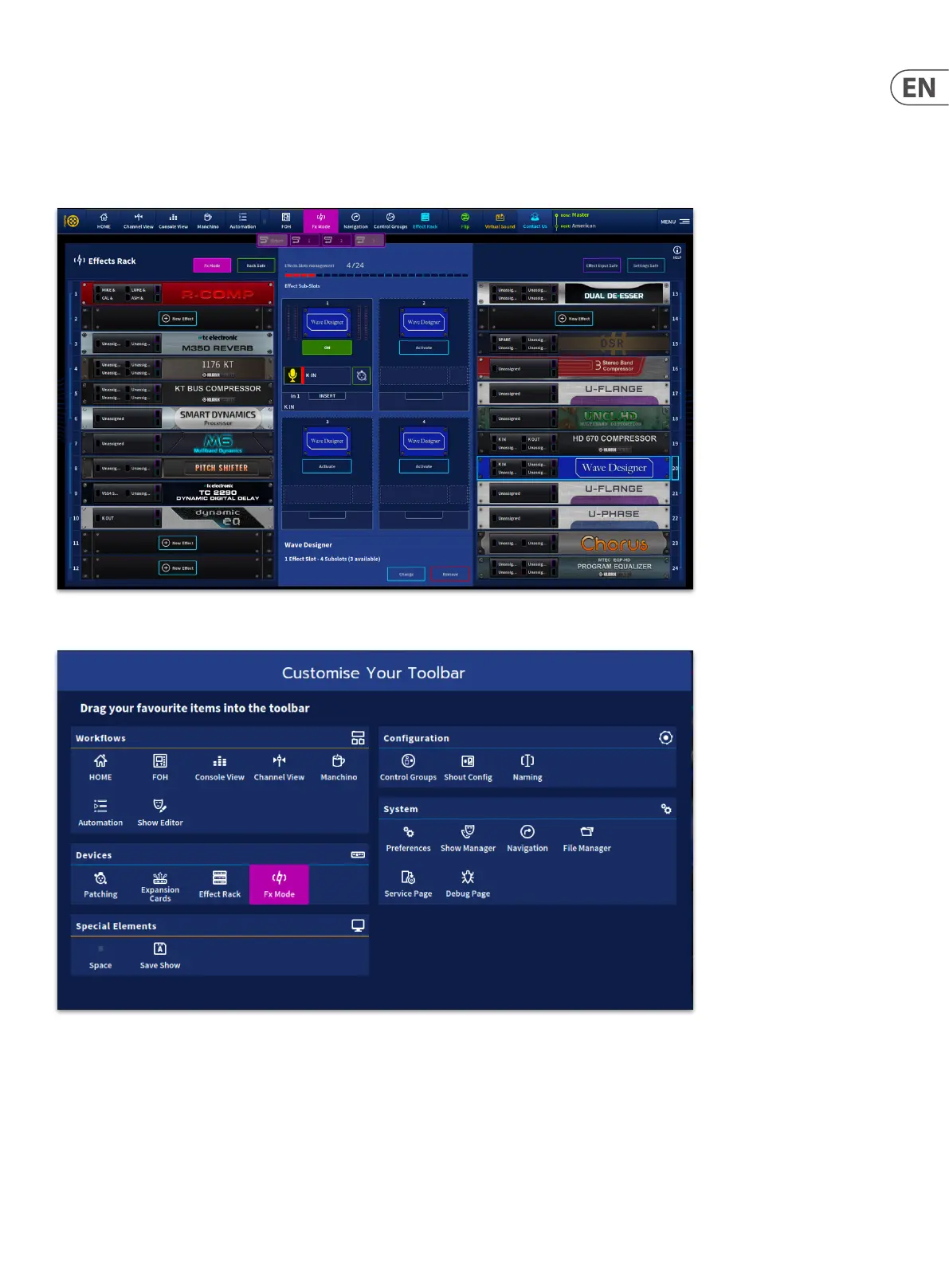

FX Mode

FX Mode allows any eect to be viewed when a channel is selected. This works for inserted eects or channels with an eect return patched. This aids in fast

navigation to FX when you are in the mix and can be quickly toggled on and o.

FX mode can be activated in two ways:

In the Eect Rack, press the purple FX Mode button.

FX Mode can also be added to the top bar menu by adding the icon from the custom toolbar menu.
