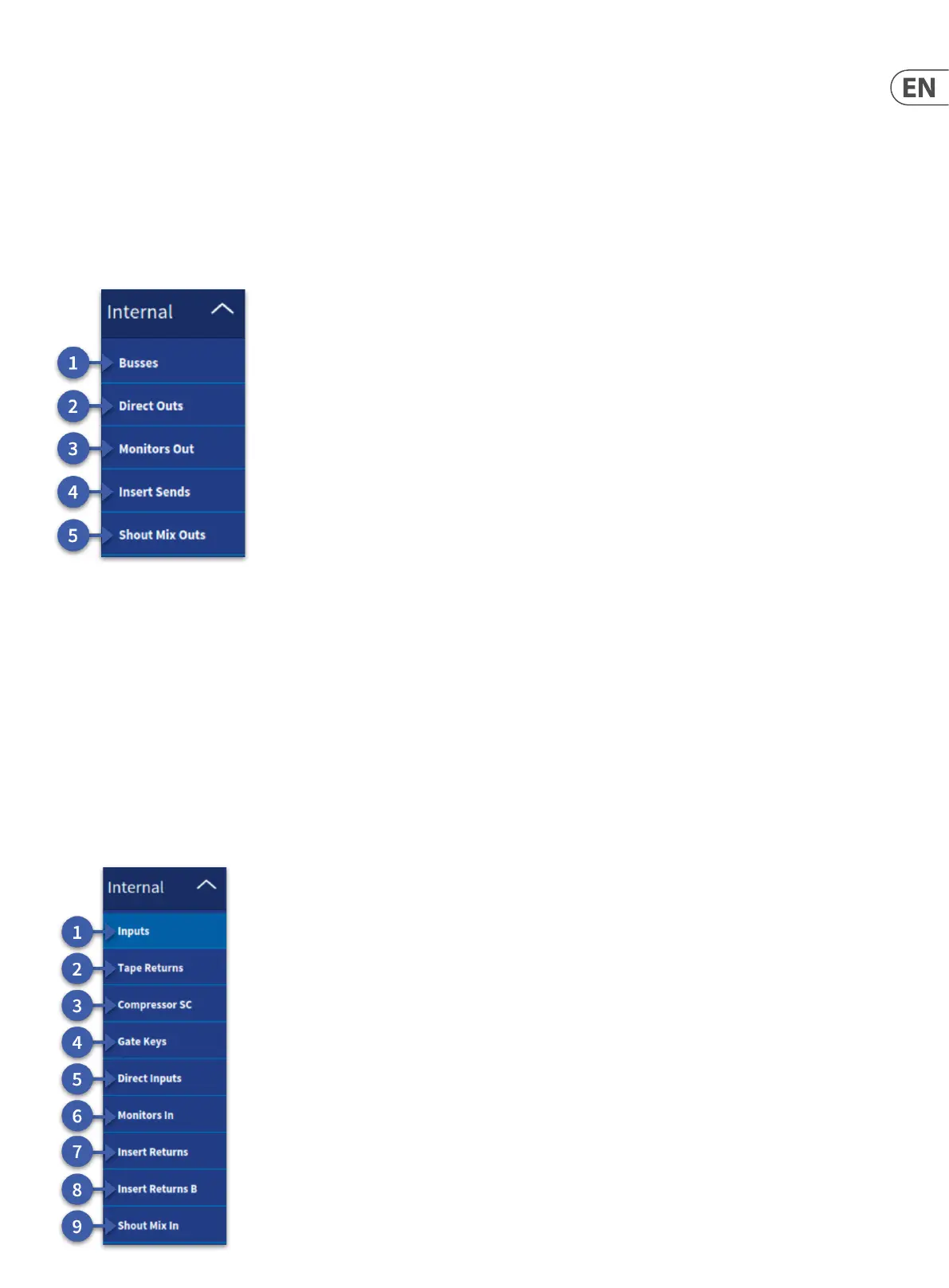

Internal Patch Points
There are many sources that can be patched in the HD24-96 system. Below is a list of patchable items. These pages are available on both side of the patching screen
when appropriate. The list is ltered to show the available patching destinations for the tab you have currently selected:
1. Busses – Output busses (Aux, Matrix and Masters) pages.
2. In-Direct Out – Input channels, direct output pages.
3. Monitor Out – Talk back and monitor A/B patching page.
4. Insert Send – The send patching point of a channels insert pages.
5. Shout Mixer Out – Patch the 12 outputs of the shout mixer.
Internal Patching Destinations
1. Inputs – Console inputs
2. Tape Return – Input channels, tape returns pages.
3. Compressor SC – Input channels, compression sidechain input pages.
4. Gate Key – Input channels, gate key input pages.
5. Direct In – Output busses, direct input pages.
6. Monitor In – AFL, PFL, External and Talk back patching page.
7. Insert Return – The return patching point of a channels insert pages.
8. Insert Return B – The return B patching point of a channels insert pages.
9. Shout Mixer In - The 16 inputs to the shout mixer.
