95 HD96-24-CC-TP User Manual

Input Dynamics Processing (Dynamics Section)

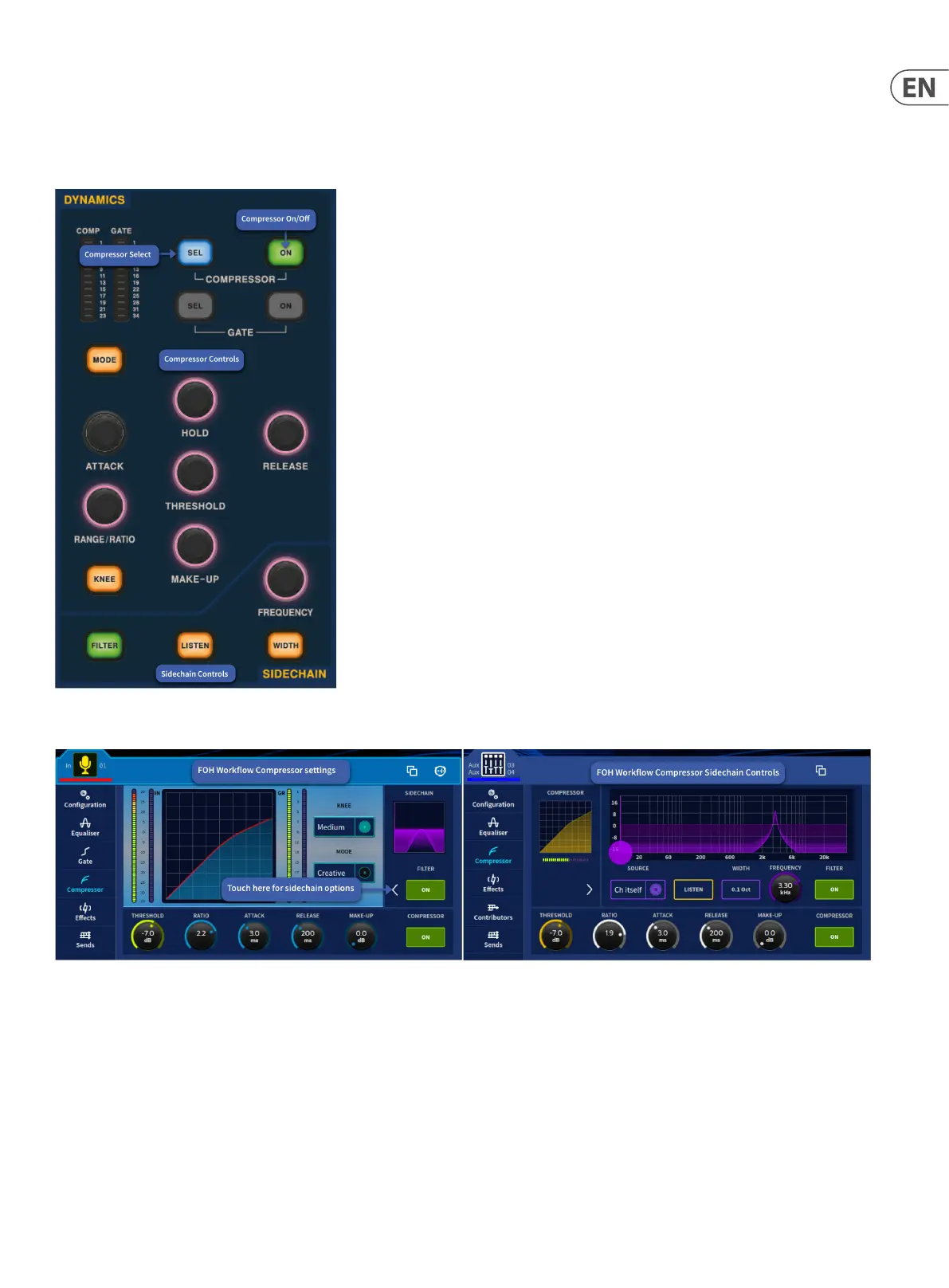

This section shows you how to use the compressor and gate dynamics processors via the surface Dynamics section and various GUI screens. The rotary pop-up

functions can also be used to adjust certain settings of the gate and compressor which can also be locked to the screen if desired.

Surface Controls

FOH Workow View

Default Chapter2
