Midas HD96-24-CC-TP User Manual

245 HD96-24-CC-TP User Manual

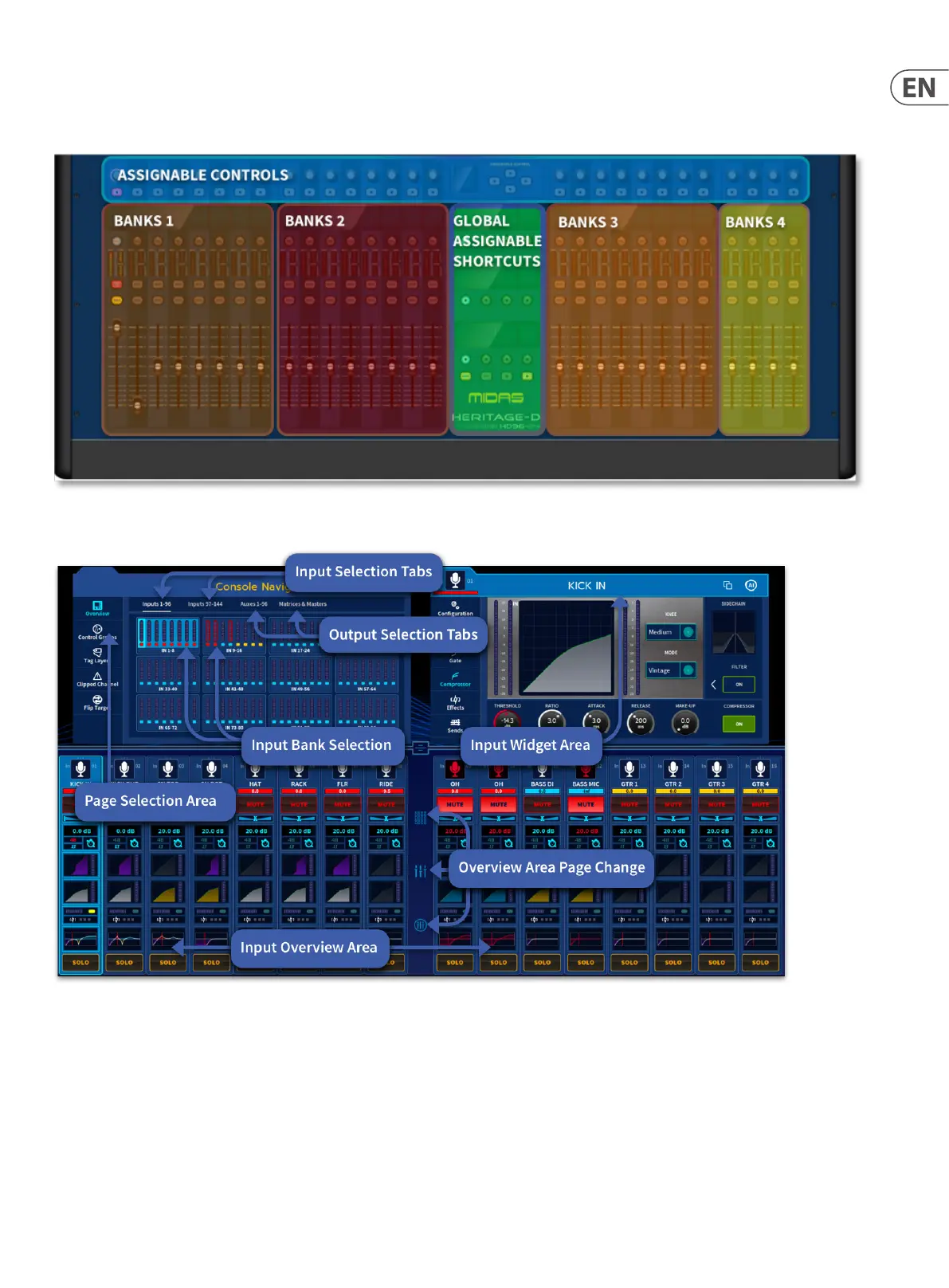

Input channel areas of the control surface
The surface has 28 possible locations for inputs to be freely assigned to. Channels can be located in any of the 3 Banks of 8 and/or 1 Bank of 4 as discussed in the
Navigation section earlier in this manual. When an input channel is selected, its channel settings are brought to the surface controls and to the GUI input widget.
Input Widget Area
When an input channel is selected via the touch screen or surface SEL button, its overview appears in the Input Channel widget or Channel View widget (dependant on
workow selected, FOH view shown above) and provides all the information needed for adjusting the dierent sections relating to input function.
