234 HD96-24-CC-TP User Manual

Network Conguration

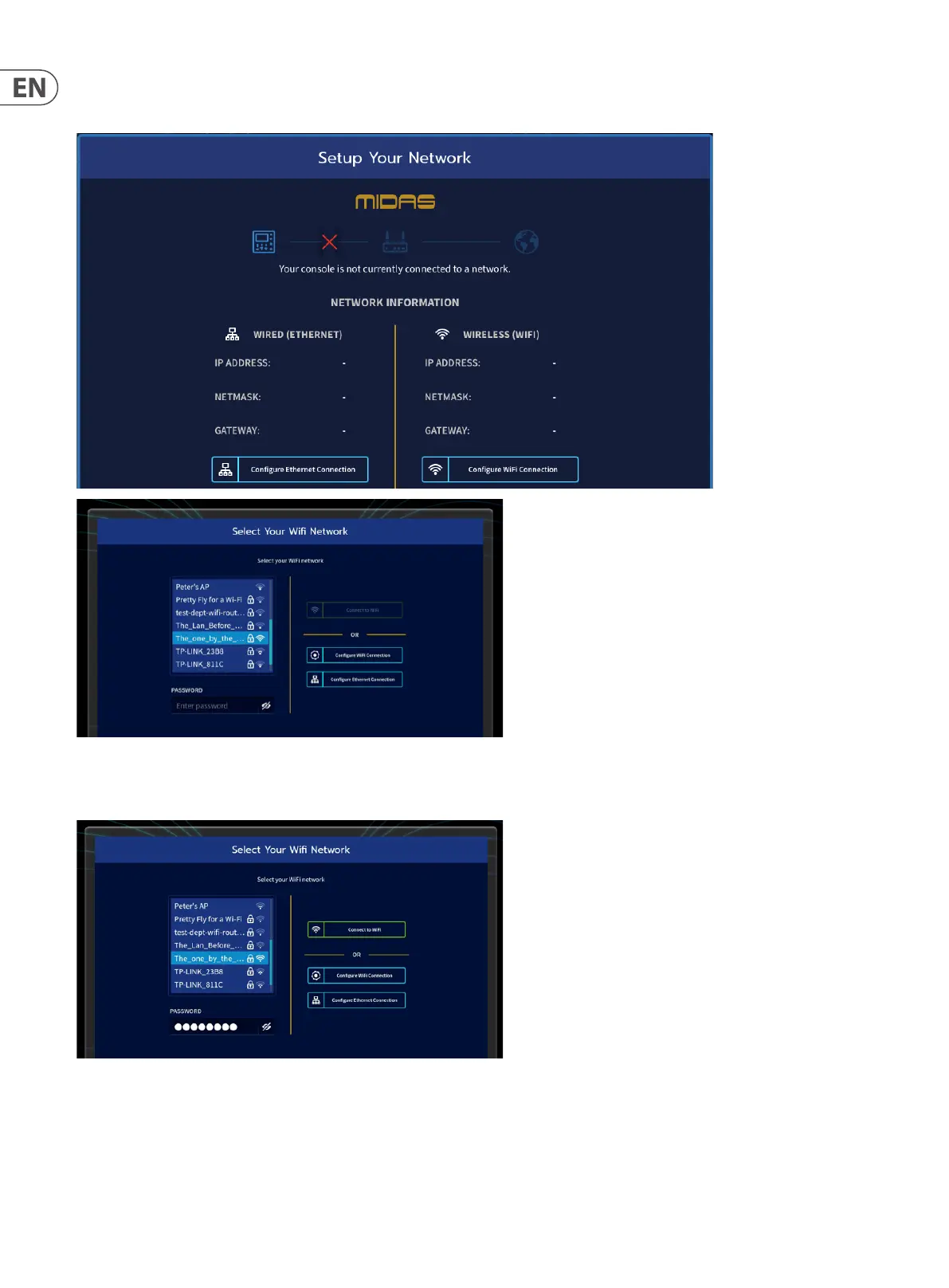

The Network conguration page presents you with the option to connect over Wi-Fi or Ethernet.

Select a network and enter the network password. Press the Connect To Wi-Fi to establish a connection.

Note: You can set up a personal hotspot on a mobile/cell phone to connect to the mCloud if required.
