Navigating via the surface detail area

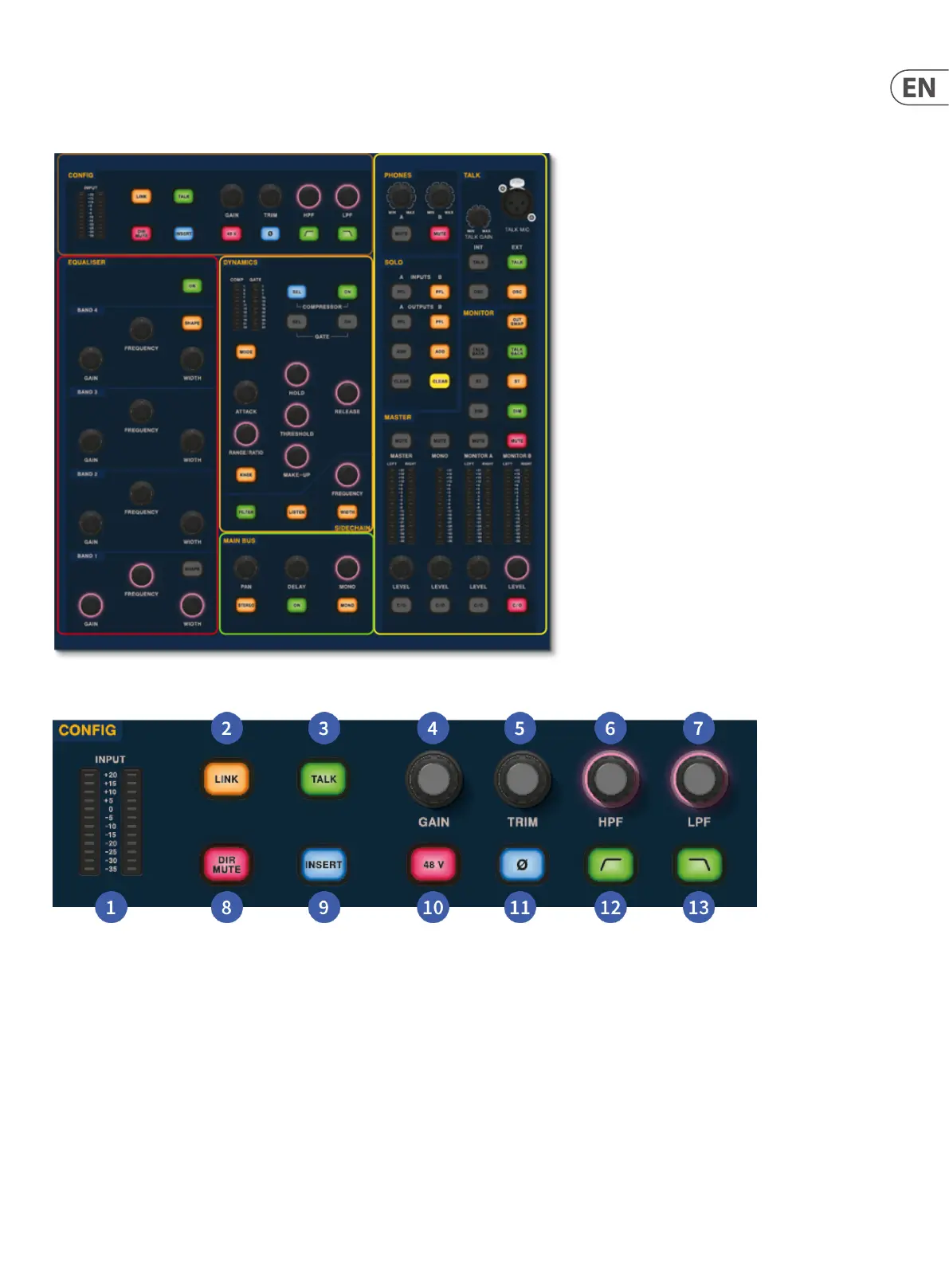

The surface is laid out with a familiar analogue feel for easy operation. Everyday functions are available for hands on operation. All functions are mirrored in the GUI
with parameter values highlighted on touch. This allows you to make changes quickly to the selected channel or path.
Cong
1. Meters – 12 LEDs Stereo input meters display signals from -35 dB to 20 dB.
2. Link – Links the currently selected input channel to the next input. Note outputs always link odd to even, i.e. Aux 1 to 2 etc.
3. Talk – Send the talk bus to the select channel.
4. Gain – Adjust the gain of the input channel pre-amp.
5. Trim – Adjust the trim level for inputs -40 to 20 dB or for Aux, Matrices and Master Busses -12 to 6 dB.
6. HPF – High Pass Filter (HPF) control with a range from 10 Hz to 10 kHz (inputs only).
7. LPF – Low Pass Filter (LPF) control with a range from 40 Hz to 20 kHz (inputs only).
8. Dir Mute – Mutes the direct in/out of the currently selected channel.
9. Insert – Switches on the insert point on the selected channel if patched.
10. 48 V – Activates 48 V phantom power on the selected input channel.
