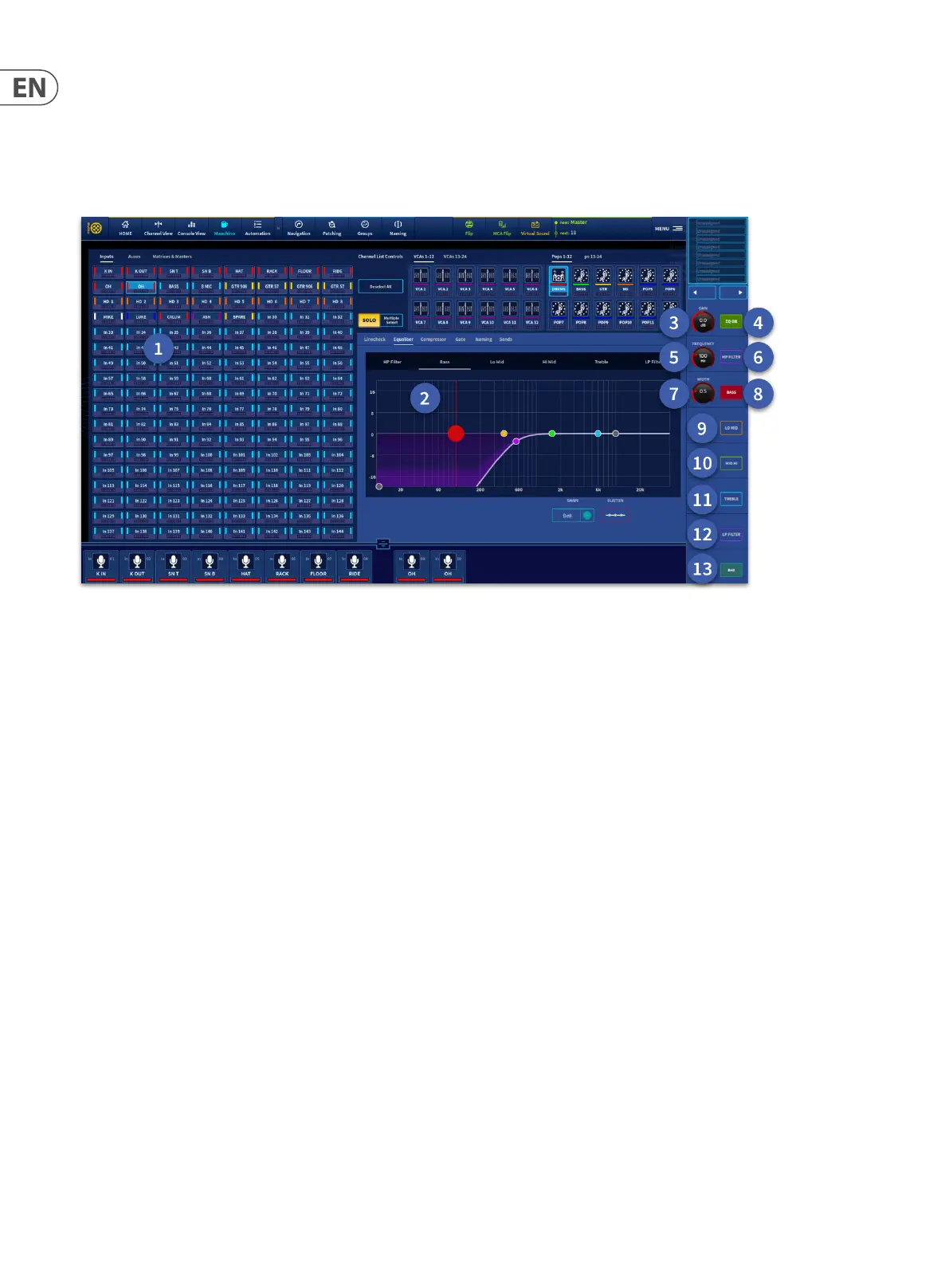

Equaliser Page
Equaliser Solo view
In the Equaliser page, If one path is selected the EQ for that path is displayed and can be edited in a similar way to the main Equaliser found in the various workows
and widgets.
Note: With no channels selected press and hold EQ ON to see which channels the EQ is turned on. No other buttons in this page display overview information.
1. Select a single path to edit.
2. In single channel edit the Equaliser window resembles the normal Equaliser widget found in other workows with bands selectable by the tabs across the top of
the EQ. Individual bands can be edited to right hand side with the vertical assignable controls.
3. Gain control for the selected band.
4. EQ on/o control.
5. Frequency control for the selected band.
6. High Pass Filter (HP) select.
7. Band width control.
8. Bass band select.
9. Lo Mid band select.
10. Mid Hi band select.
11. Treble band select.
12. Low Pass Filter (LP) select.
13. Eq shape control for Bass (Bell, Deep, Classic and Warm) and treble bands (Bell, Bright, Classic and Soft). All EQ shapes are described in the Input EQ section.
