47 HD96-24-CC-TP User Manual
information to the surface and GUI (depending on mode selected) - the selected bank of 8, plus the following 8 or 16 paths.
6. VCA and POP Group Navigation selection is another way in which to bring channels to the surface and touchscreen overview area. Simply touch the required VCA
or Pop to have its content instantly appear on the surface. Long pressing the POP group or VCA button will quickly open the group assign page.
7. Aux/Matrices selection. - When ip mode is active this becomes a quick way to adjust levels to an aux mix quickly by touch selection, perfect for monitor
engineers. If you select when not in ip mode it will bring that channel (and subsequent channels) to the surface.

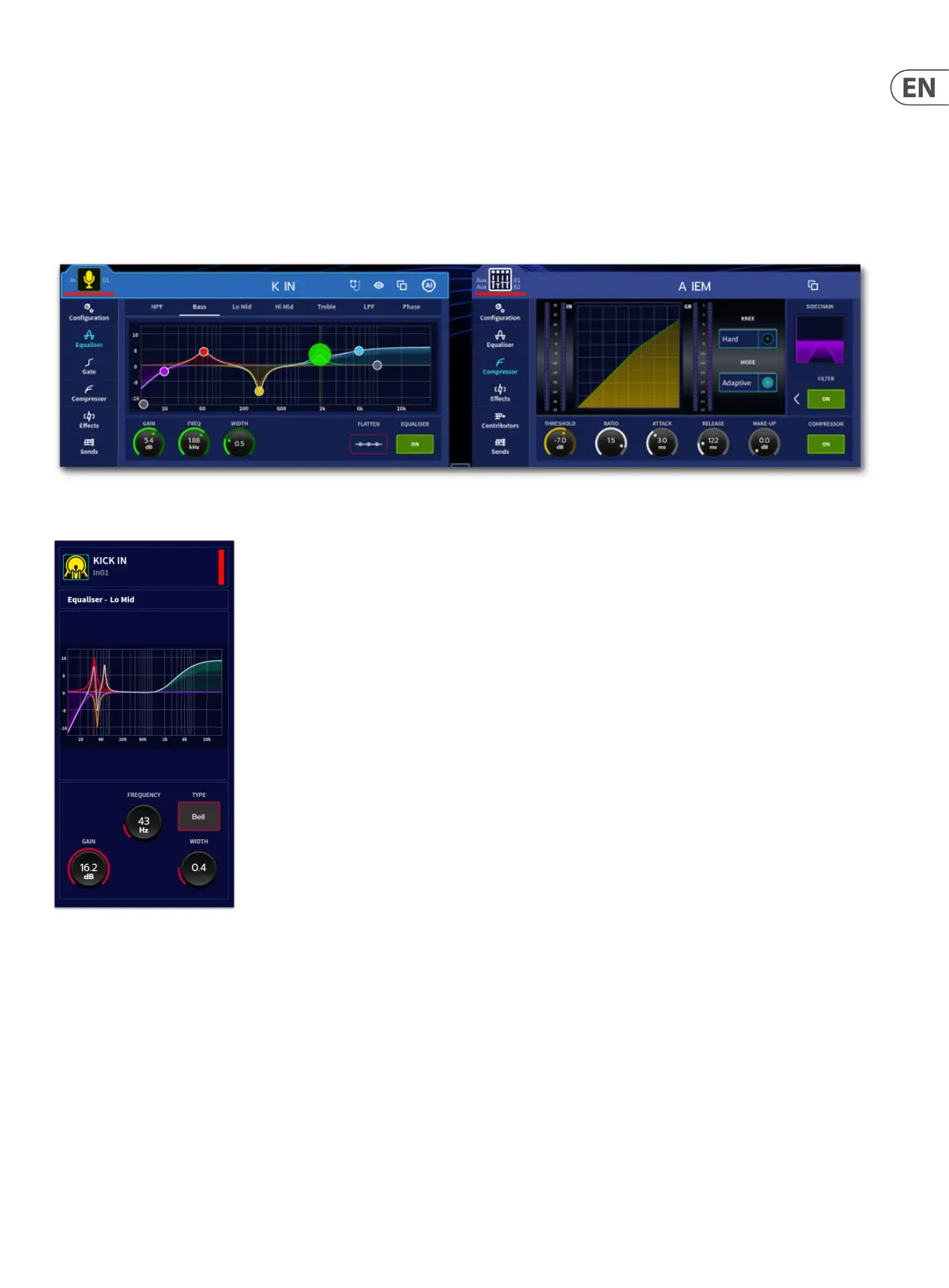

The two widgets in the lower part of the touch screen can show various functions for the selected input or output. For example, the left side widget can display the
Input EQ while the right-hand side shows Aux compression settings. These two widgets are the same for all HOME pages listed below. They will be hidden if the
channel overview/GUI fader bank is in use.
Side Bar Pop Op Display
If the GUI channel fader/ Channel overview area is displayed (faders up) in the Home workow, touching a physical surface control will activate the side bar pop-up
display. This will display either the Pre-amp, EQ, Dynamics and Master bus functions and lets you see the information for the physical control you have touched.
