278 HD96-24-CC-TP User Manual
1. Direct Input Mute – Mutes the Direct Input if required.
2. Direct Input Level Control – Adjusts the direct input level up to 10 dB.
3. Direct Input Patch information.
4. Direct Input Point – Choose where the signal is injected in the signal path, pre or post channel processing.
5. Metering for selected output.
Safes
Each output channel has six types of output channel safes that each protects a specic control/area from the automation system.
You can operate the safe switches via the GUI in the Output Conguration widget page, via the Manchino Page or via the conguration tab in Channel View, which also

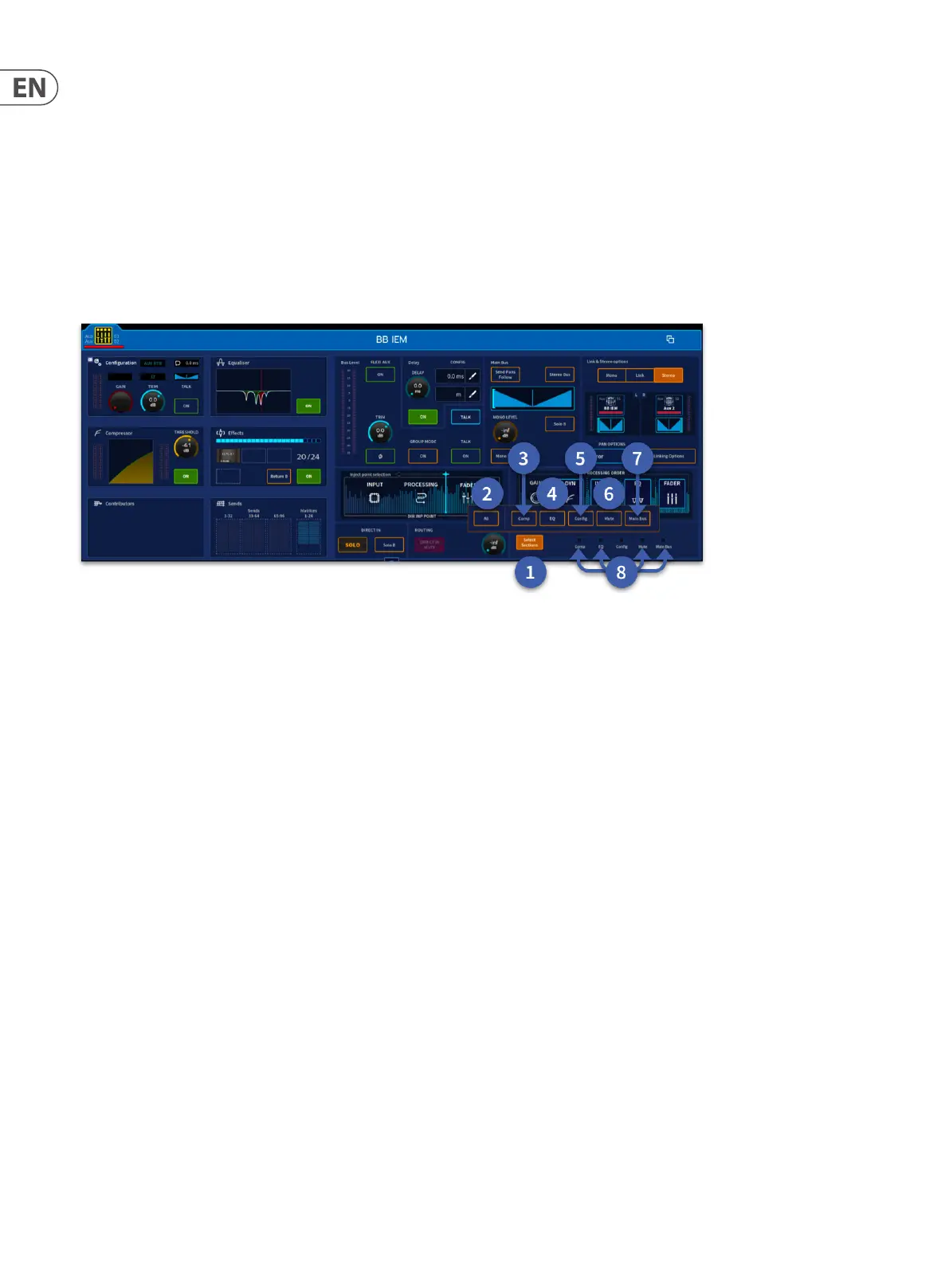

provide on/o status information. In the example below in Channel View, the Comp and Cong are placed in recall safe.
1. Select Options – Opens the Safes selection tab.
2. ALL- This turns on recall safe for the whole channel.
3. Comp - The compressor settings are placed in recall safe.
4. EQ – All the EQ settings, Phase and Filters are put in recall safe.
5. Cong – All cong settings are placed in recall safe.
6. Mute – The channels mute is put in recall safe.
7. Main Bus – The channel’s Main Bus settings (Pan, level, Send on and Mute to the Stereo Master and Mono Bus) are placed in recall safe.
8. Recall Safe indicators – This area show which sections of the channel are in recall safe.
Insert
You can congure the send and return points of the aux, matrix and master outputs in the Insert section of the Conguration widget page or via the conguration tab
in Channel View. A Return B path is also available which can be used to have a back-up external insert patched if needed. This can be found in the Eects tab.
Output channel delay
Similar to the input channels, all of the output channels have a delay that can be incorporated into the signal path. However, this can be a much larger delay, being in
the range 0ms to 500ms (milliseconds).
