Configuring Dual-Home Links Dual-Home Link Active-Active

OmniSwitch AOS Release 8 Network Configuration Guide December 2017 page 10-11

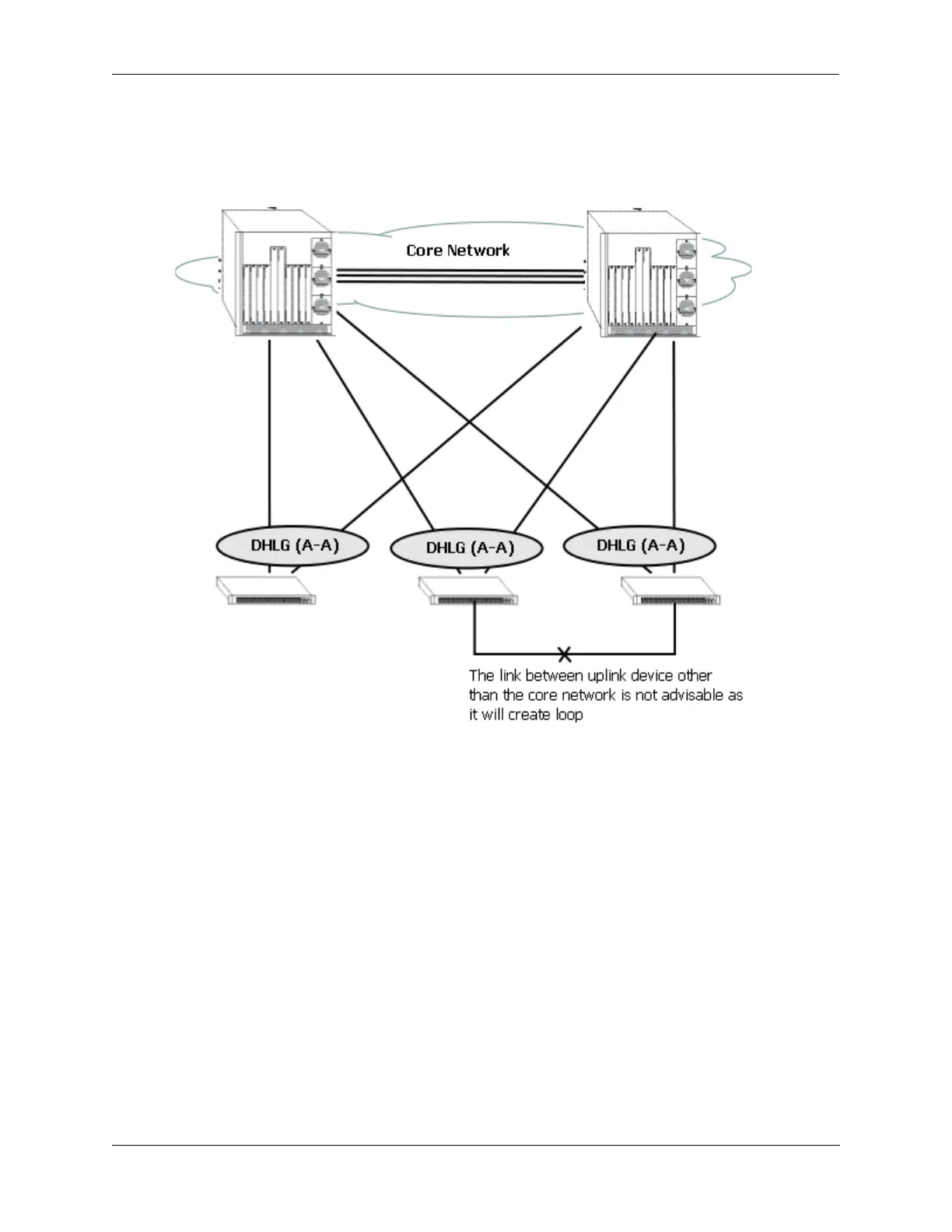

Unsupported DHL Active-Active Topology (Network Loops)

The following is an example of an unsupported topology for Dual-Homed Link Active-Active.

In the above topology, the link between the uplink device other than core network is not recommended as

it creates a loop in the network. This topology violates the principle that uplink switches can only be

connected to the network cloud through the core network.
