Configuring IP Multicast Switching IPMS Application Example
OmniSwitch AOS Release 8 Network Configuration Guide December 2017 page 25-42
IPMS Application Example

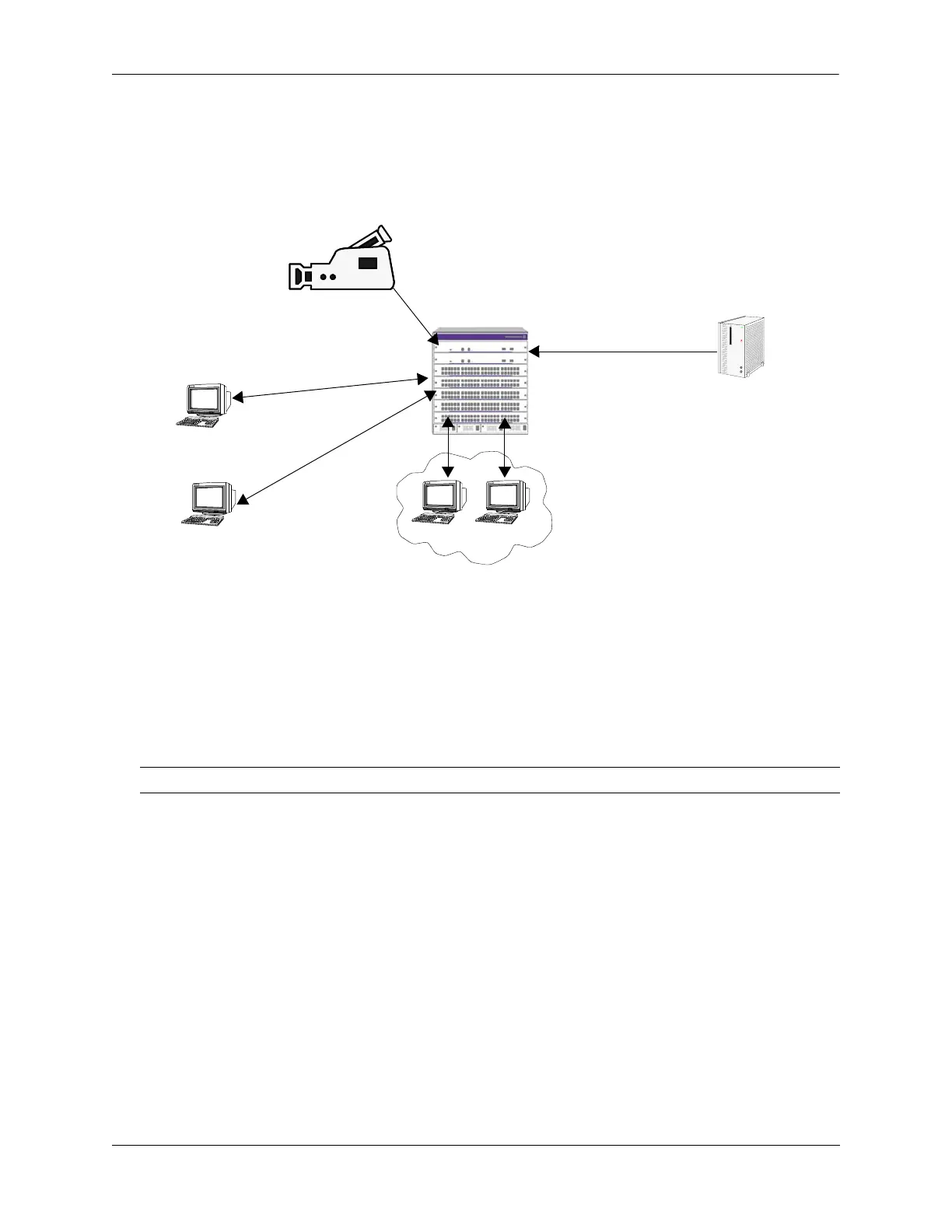

The figure below shows a sample network with the switch sending multicast video. A client attached to
Port 5 needs to be configured as a static IGMP neighbor and another client attached to Port 2 needs to be
configured as a static IGMP querier.
Example IPMS Network
The network administrator has determined that the network is too lossy and therefore the robustness
variable needs to be set to a higher (i.e., 7) value.
Follow the steps below to configure this network:
1 Enable IP Multicast Switching and Routing switch-wide, by entering:
-> ip multicast admin-state enable
2 Configure the client attached to Port 5 as a static neighbor belonging to VLAN 5 by entering:
-> ip multicast static-neighbor vlan 5 port 1/5
3 Configure the client attached to Port 2 as a static querier belonging to VLAN 5 by entering:
-> ip multicast static-querier vlan 5 port 1/2
4 Modify the robustness variable from its default value of 2 to 7 by entering:
-> ip multicast robustness 7
Note. All the steps following Step 1 (which must be executed first) can be entered in any order.
OmniSwitch
Multicast Server
(source IP address)
Static Neighbor
Attached to Slot 1, Port 5.
Static Querier
Attached to Slot 1, Port 2.
Video
Network Clients
Network clients send IGMP
requests to receive multicast
traffic.
