Configuring Ethernet Ports Link Fault Propagation
OmniSwitch AOS Release 8 Network Configuration Guide December 2017 page 1-26
LFP Application Example
This section provides an example of using LFP in a layer 2 network configuration, as shown in the
following sample topology:

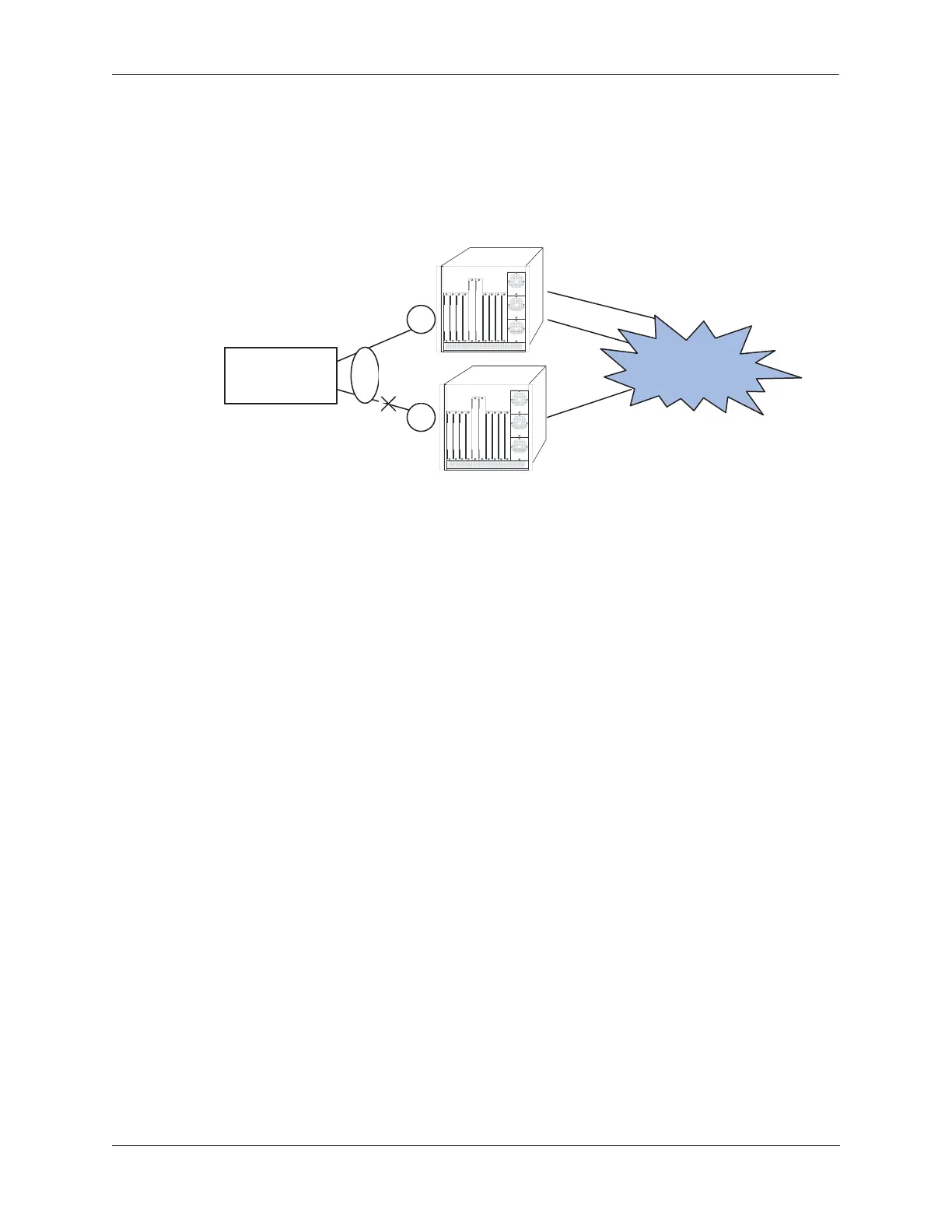

Link Fault Propagation - Application Example
In this example:
• When interfaces 2/1 and 3/1 on OS-1 are down, the access switch will keep interface 1/1 as active and
traffic will still be forwarded to OS-1 even though it has no network connectivity.
• To allow the switch to use the standby interface the link on OS-1 would need to be disabled so that
interface 1/1 on the access switch leaves the LACP group.
-> link-fault-propagation group 1 source port 2/1 3/1 destination linkagg 1
1/1
Stby
3/1
2/1
Access
L2 Network
1
DHL
LACP 1
