Version 6.2 101 February 2011
SIP User's Manual 3. Web-Based Management
3.3.2.3.4 Configuring General Media Settings
The 'General Media Settings' page allows you to configure various media parameters. For
a detailed description of the parameters appearing on this page, see ''Configuration
Parameters Reference'' on page 333.
¾ To configure general media parameters:
1. Open the 'General Media Settings' page (Configuration tab > VoIP menu > Media
submenu > General Media Settings).

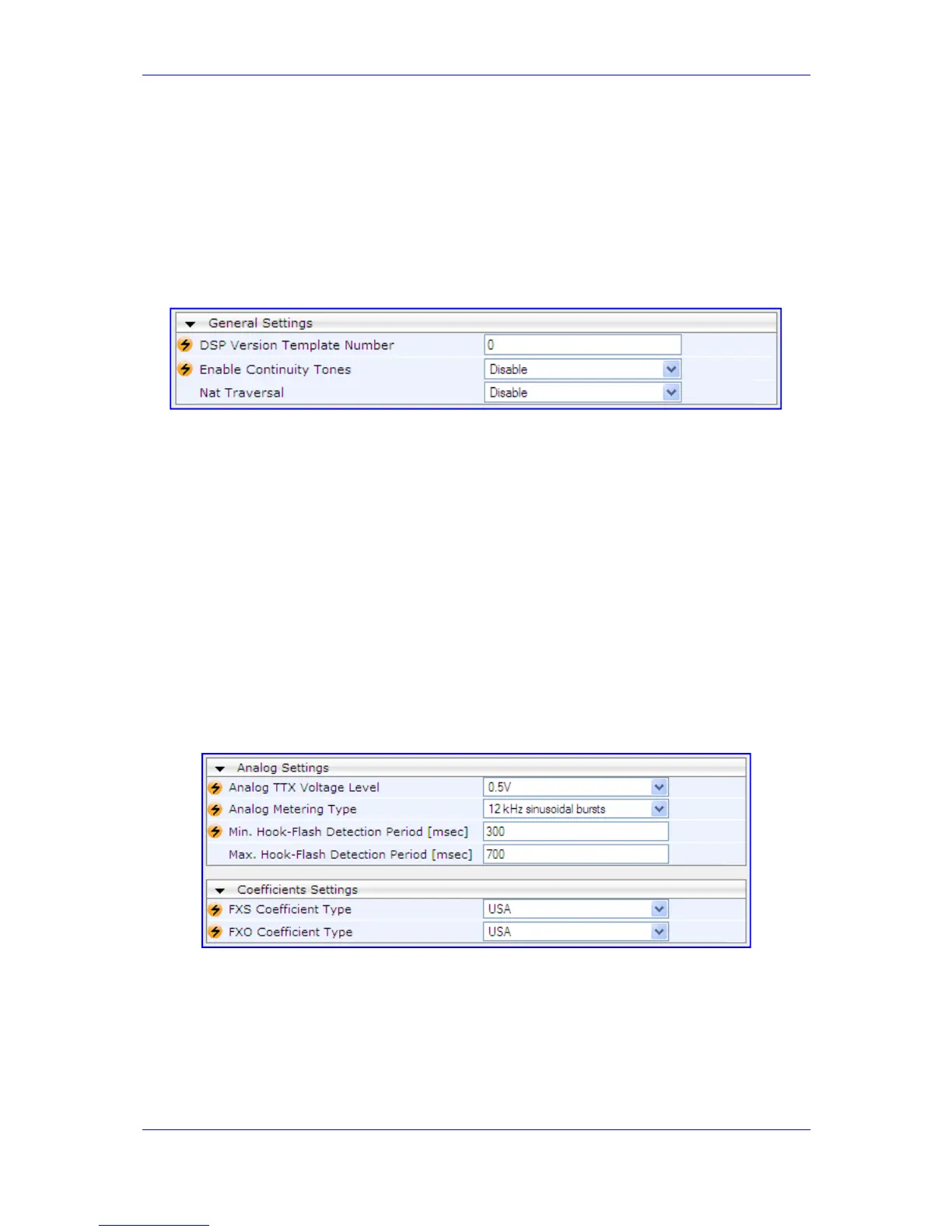

Figure 3-64: General Media Settings Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 169.
3.3.2.3.5 Configuring Analog Settings
The 'Analog Settings' page allows you to configure various analog parameters. For a
detailed description of the parameters appearing on this page, see ''Configuration
Parameters Reference'' on page 333.
This p
age also selects the type (USA or Europe) of FXS and/or FXO coefficient
information. The FXS coefficient contains the analog telephony interface characteristics
such as DC and AC impedance, feeding current, and ringing voltage.
¾ To configure the analog parameters:
1. Open the 'Analog Settings' page (Configuration tab > VoIP menu > Media submenu
> Analog Settings).
Figure 3-65: Analog Settings Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 169.
